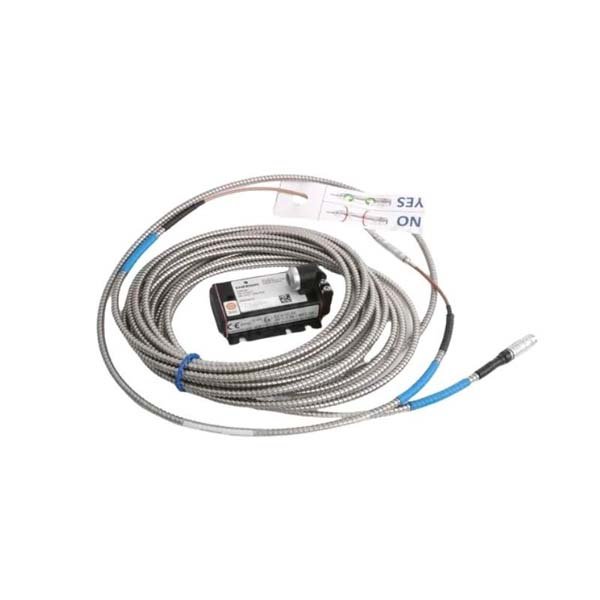

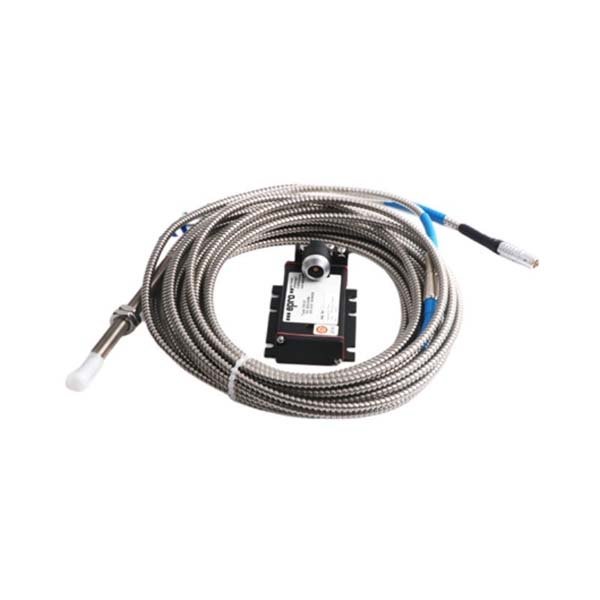

Epro PR6424/109-000 16mm Eddy Current Sensor

The Epro PR6424/109-000 is a 16mm Eddy Current Sensor engineered for high-precision, non-contact measurement of displacement, vibration, and position. This sensor is based on Eddy Current Technology, allowing for accurate measurement of metallic objects without physical contact, making it highly reliable for continuous monitoring in industrial applications.

This 16mm sensor head diameter makes it compact and versatile for a range of applications, including monitoring rotating machinery, measuring vibration, and checking shaft positions in critical systems. The PR6424/109-000 is engineered for high-resolution measurements with fast response times, making it suitable for high-performance industrial processes that require accuracy and real-time data.

The sensor is widely used in various industries, including automotive, aerospace, manufacturing, and power generation, due to its durability and precision. The non-contact nature of the sensor ensures that there is no wear and tear on the equipment being monitored, which results in improved system reliability and minimized maintenance.

Product Specifications

Product Applications

The Epro PR6424/109-000 16mm Eddy Current Sensor is well-suited for a wide range of applications, particularly in industries requiring precision and non-contact measurement of critical components. Here are the primary applications:

• Machine Condition Monitoring: Ideal for monitoring the health of rotating equipment such as motors, turbines, and pumps, detecting any displacement or vibration that could lead to failure.

• Precision Measurement: Used to measure shaft positions, tool positions, or displacement of mechanical parts in precision machinery, where exact measurements are essential.

• Rotating Machinery: Commonly applied for measuring axial and radial displacement of rotating parts such as shafts, fans, and rotors in various industrial systems.

• Automotive: Used in the automotive industry for measuring the displacement and vibrations of engine components, transmissions, and suspension systems.

• Aerospace: The sensor is highly valuable in aerospace applications for monitoring critical components such as turbines, engine parts, and other systems that require precision and real-time feedback.

• Test Rigs and Research: Employed in test benches and research environments to monitor displacement or vibration of test specimens, ensuring operational accuracy and compliance with standards.

Product Advantages

• Non-contact Measurement: The Epro PR6424/109-000 sensor operates without physical contact, reducing wear and tear, and ensuring both the sensor and monitored equipment remain in optimal condition for longer.

• High Precision: With Eddy Current Technology, the sensor provides highly accurate measurements with excellent resolution, making it ideal for critical applications.

• Fast Response Time: The sensor responds quickly with a <1 millisecond response time, enabling real-time monitoring of fast-moving or dynamic machinery.

• Durability and Protection: With an IP65 protection class, the sensor is dust-tight and resistant to water jets, ensuring reliable performance in harsh environments.

• Compact Design: The 16mm sensor head is compact and can be easily integrated into systems with limited space, making it ideal for tight setups.

• Wide Temperature Range: It operates within a wide temperature range of -40°C to +85°C, allowing for use in both extreme heat and cold environments.

• Minimal Maintenance: Being a non-contact sensor, it requires less maintenance compared to traditional contact-based sensors, reducing downtime and long-term operational costs.

FAQ

1. What types of signals does the Epro PR6424/109-000 sensor provide?

   • The sensor provides an analog output signal in either 4-20 mA or 0-10 V, depending on the configuration.

2. What is the measurement range of the Epro PR6424/109-000 sensor?

   • The PR6424/109-000 sensor has a measurement range of 10 mm to 50 mm, depending on the sensor configuration.

3. What is the operating temperature range of the sensor?

   • The sensor operates in temperatures ranging from -40°C to +85°C, making it suitable for use in both extremely cold and hot environments.

4. How is the Epro PR6424/109-000 sensor mounted?

   • The sensor is mounted using a threaded mounting system, which ensures secure and stable installation in various machinery.

5. What is the power supply requirement for the Epro PR6424/109-000?

   • The sensor operates with a 15 to 30 V DC power supply.

6. Can the Epro PR6424/109-000 sensor be used outdoors?

   • Yes, with its IP65 protection rating, the sensor is dust-tight and resistant to water jets, making it ideal for outdoor and industrial environments.

7. What is the response time of the Epro PR6424/109-000 sensor?

   • The sensor has a very fast response time of less than 1 millisecond, making it suitable for dynamic and real-time measurements.

8. What industries commonly use the Epro PR6424/109-000 sensor?

   • The sensor is widely used in industries such as automotive, aerospace, power generation, manufacturing, and test equipment.

9. Why is non-contact measurement preferred?

   • Non-contact measurement reduces mechanical wear on both the sensor and the machine parts being measured, ensuring more accurate results and longer-lasting systems.

10. How accurate is the Epro PR6424/109-000 sensor?

    • The PR6424/109-000 provides highly precise and repeatable measurements, making it ideal for applications where accuracy is critical.
