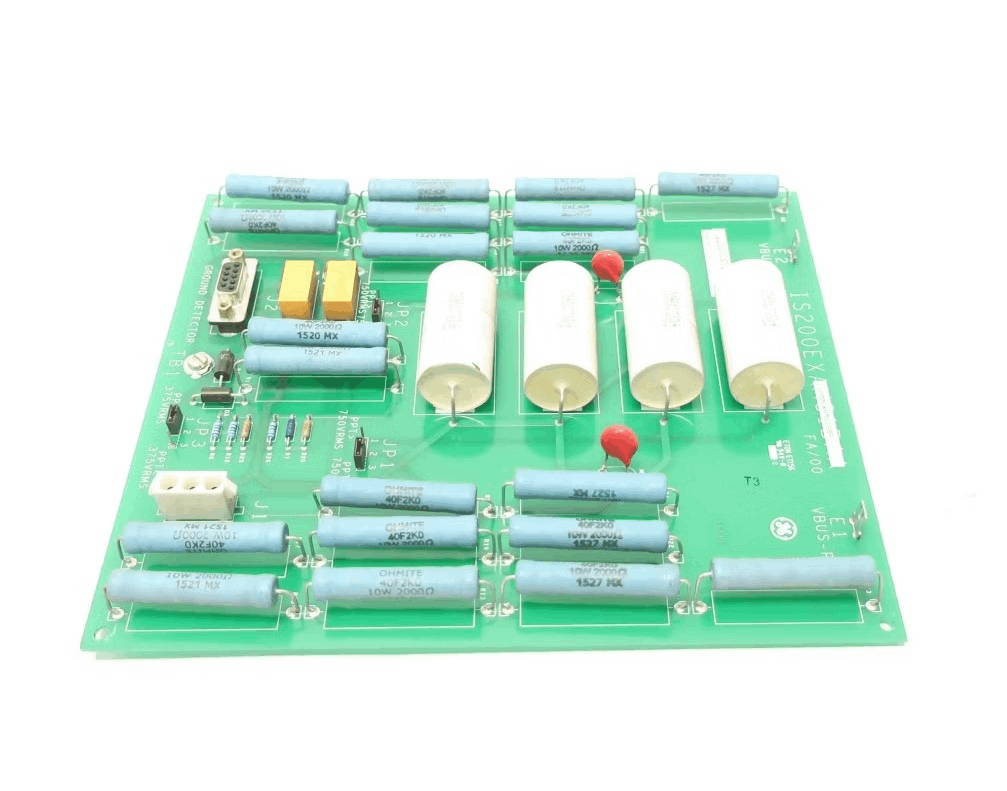

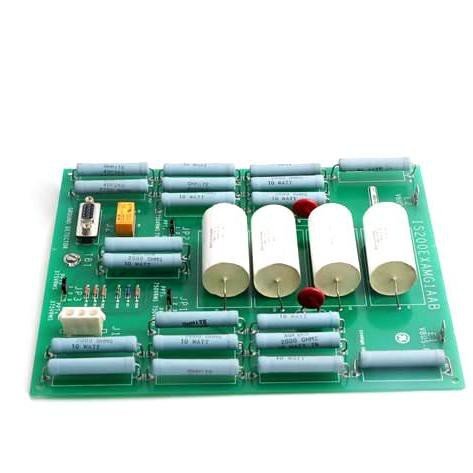

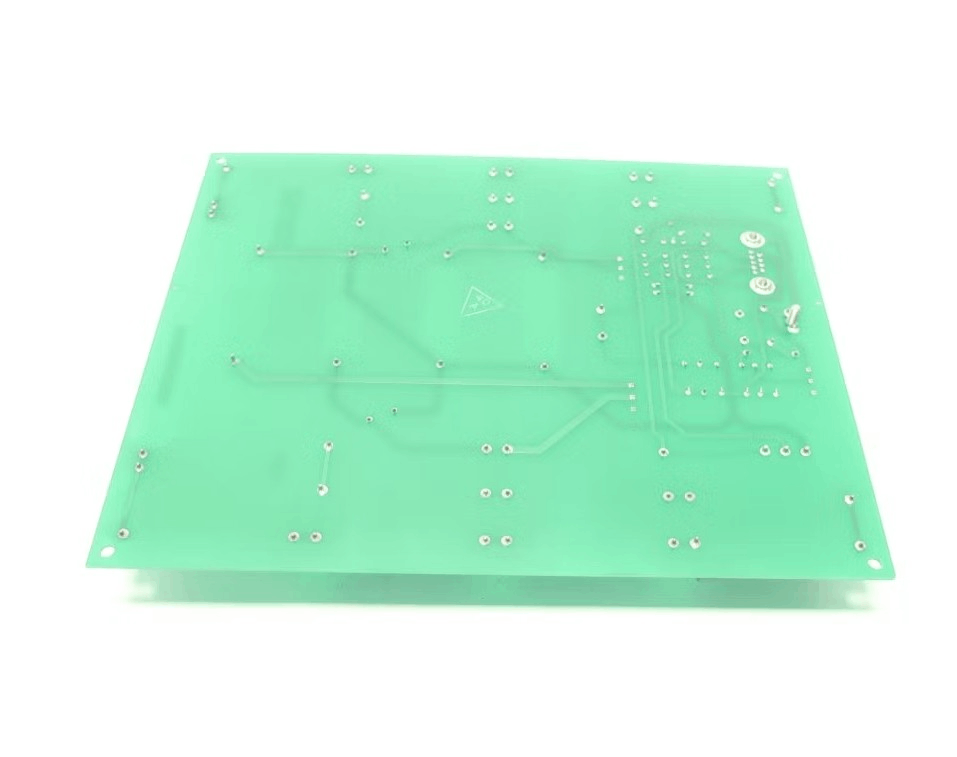

General Electric IS200EXAMG1A IS200EXAMG1AAB Exciter Attenuation Module
Item Number:IS200EXAMG1A IS200EXAMG1AAB
Brand:GE
Lead Time: In stock
Description:Exciter Attenuation Module
Payment: T/T
Product Description
GE IS200EXAMG1AAB is an Exciter Attenuation Module manufactured by General Electric (GE) as part of the EX2100 Series for Excitation turbine control systems.It is an integral component that works in tandem with the Exciter Ground Detector Module (IS200EGDM or EGDM) to form the ground detection system within the EX2100 Excitation Control system.
Fuctions & Features
- High Voltage Attenuation:GE IS200EXAMG1A reduces high voltage from the field excitation system (bridge) to a manageable level.Provides attenuation between the field bus and the Exciter Ground Detector Module (EGDM).
- System Integration:GE IS200EXAMG1A installed within the High Voltage Interface (HVI) module in the auxiliary cabinet.
- Field Voltage and Power Capacities:GE IS200EXAMG1A handles field voltage (Vbus+ and Vbus−) ranging from 125 V DC to 1000 V DC.
- Field Ground Test Activation:The EGDM controls a relay on the EXAM to activate the field ground test and master selection.
Specifications
- Product Type: Exciter Attenuation Module
- System Configuration: Dual System, Group Variation: H2
- Channels: 13
- Description: I/O Terminal Board
- AC Input Frequency: Maximum 480 Hz
- Operating Temperature Range: 0°C to 40°C
- Exciter Ground Detector Module (EGDM): Works in tandem with the EXAM to form the ground detection system.
- Exciter Power Backplane (EPBP): Connects the EXAM and EGDM via a 9-pin cable and 96-pin P2 connector.
- High Voltage Interface (HVI): Houses the EXAM within the auxiliary cabinet.
