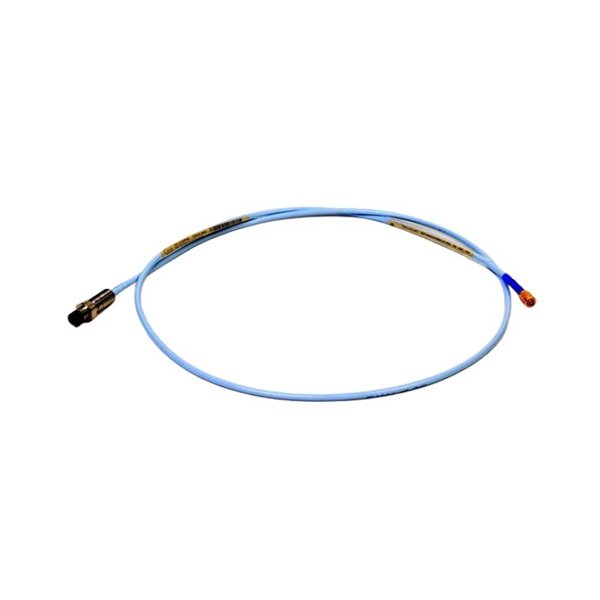

Bently Nevada 330171-00-08-10-02-CN 3300 5mm Proximity Probe

The Bently Nevada 330171-00-08-10-02-CN 3300 5mm Proximity Probe is a high-precision industrial sensor designed to measure the displacement of rotating equipment components with exceptional accuracy. This sensor is part of the well-known 3300 series, which is widely recognized for its reliability and robust performance in critical condition monitoring applications. The 3300 5mm Proximity Probe is specifically designed for environments where tight installation spaces and precise measurements are essential.

This probe is typically used in various rotating machinery monitoring systems such as turbines, compressors, motors, and pumps. Its primary function is to measure the shaft displacement, vibrations, and misalignment within rotating equipment. By detecting changes in displacement early, the sensor helps prevent catastrophic machinery failures, reduce maintenance costs, and improve operational efficiency.

The 3300 series probes are known for their durability in harsh industrial environments, including those with high vibration, extreme temperatures, and other difficult operating conditions. The Bently Nevada 330171-00-08-10-02-CN 3300 5mm Proximity Probe is an essential tool for industries focused on predictive maintenance and machine health diagnostics.

Product Parameters

Product Applications

The Bently Nevada 330171-00-08-10-02-CN 3300 5mm Proximity Probe is highly effective in numerous industrial applications that require precise displacement measurement of rotating machinery. The primary areas of use include:

• Turbine Monitoring: The proximity probe is used to measure shaft displacement in turbines, ensuring their smooth and reliable operation by detecting misalignment or imbalance.

• Compressor Monitoring: The probe is ideal for monitoring compressor shafts, providing early warnings of wear, misalignment, or vibration issues that could affect performance.

• Motor Monitoring: Electric motors in industrial environments are often equipped with this sensor to detect vibrations or shaft displacement, helping maintain optimal motor performance.

• Pump Monitoring: The proximity probe is used to monitor pump shafts, ensuring that any misalignment or mechanical issues are detected before they cause failures or downtime.

• Conveyor Systems: The sensor helps monitor the alignment and position of conveyor belts and moving parts, ensuring continuous operations without unplanned halts.

• General Rotating Machinery: The probe is applicable in many industries that rely on rotating equipment, such as fans, blowers, mixers, and more, by providing precise measurement of displacement and vibrations.

Advantages of the Product

1. High Precision: The 3300 5mm Proximity Probe delivers highly accurate measurements of shaft displacement, ensuring precise monitoring of rotating equipment.

2. Compact Design: With a 5mm sensing range and a total length of 1.0 meter, the probe is perfect for applications that require tight installation spaces.

3. Durability: The sensor is designed to withstand harsh industrial environments, capable of operating in temperatures from -40°C to +85°C and resisting vibration and shock.

4. Cost-Effective Predictive Maintenance: The probe helps detect issues such as misalignment and shaft displacement before they escalate, reducing downtime and maintenance costs.

5. Easy Integration: The sensor offers a 4-20 mA analog output, allowing easy integration with existing monitoring systems for real-time diagnostics.

6. Versatility: Suitable for a wide range of industrial applications, from turbines and compressors to pumps and conveyor systems, making it a versatile choice for machinery monitoring.

7. Long Lifespan: The high-quality materials and engineering ensure that the 3300 5mm Proximity Probe has a long operational life, minimizing the need for replacements.

8. Wide Frequency Response: The sensor offers a frequency response of up to 50 kHz, enabling it to capture detailed displacement data across a wide range of mechanical conditions.

9. Enhanced Operational Safety: By providing early warnings about equipment performance, the probe helps mitigate the risk of mechanical failure, ensuring safer operations.

10. Industry Proven: As part of the Bently Nevada 3300 series, this probe is trusted across industries for its proven reliability and accuracy in condition monitoring.

FAQs

1. What is the sensing range of the Bently Nevada 330171-00-08-10-02-CN 3300 5mm Proximity Probe?

   • The sensing range is 5 mm, making it ideal for precise measurements in smaller machinery or confined spaces.

2. What is the total length of the proximity probe?

   • The total length of the 3300 5mm Proximity Probe is 1.0 meter, providing flexibility for installation in various machinery.

3. What power supply does the Bently Nevada 3300 5mm Proximity Probe require?

   • The probe operates on a DC power supply of 18-30 V.

4. Can the 3300 5mm Proximity Probe withstand high vibration environments?

   • Yes, the probe can withstand vibration levels up to 50 g, making it suitable for high-vibration applications.

5. What is the shock resistance of the 3300 5mm Proximity Probe?

   • The probe is resistant to shocks up to 100 g (1 ms), ensuring reliable performance even in environments subject to mechanical shocks.

6. What type of output signal does the 3300 5mm Proximity Probe provide?

   • The probe provides a 4-20 mA analog output, which can be integrated into most condition monitoring systems.

7. What are the mounting options for this proximity probe?

   • The 3300 5mm Proximity Probe can be mounted using either threaded or bolt-on methods, offering installation flexibility.

8. What industries benefit from using the 3300 5mm Proximity Probe?

   • Industries such as power generation, oil and gas, petrochemical, manufacturing, and more can benefit from the probe’s precision and reliability.

9. What is the operating temperature range for the Bently Nevada 3300 5mm Proximity Probe?

   • The probe can operate in temperatures ranging from -40°C to +85°C, making it suitable for use in extreme conditions.

10. How does the 3300 5mm Proximity Probe help with predictive maintenance?

    • The probe continuously monitors the displacement and vibrations of rotating equipment, providing early detection of misalignment or wear, thus facilitating proactive maintenance.
