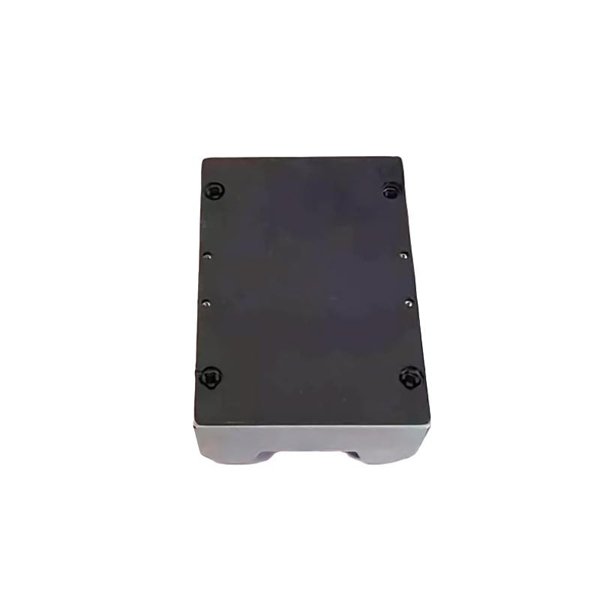

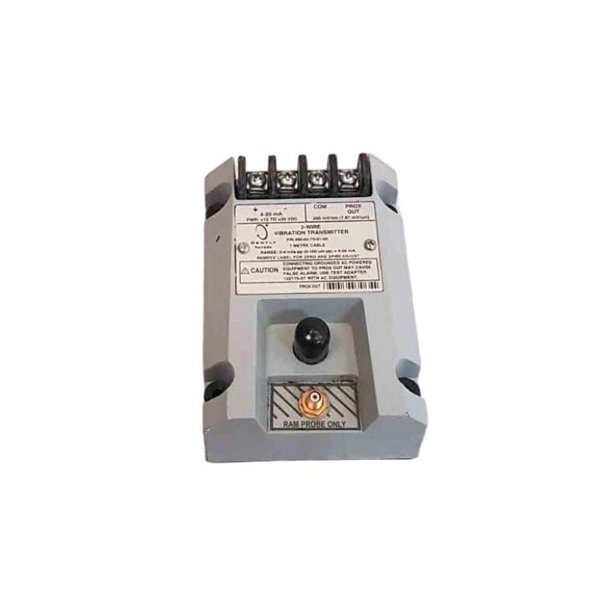

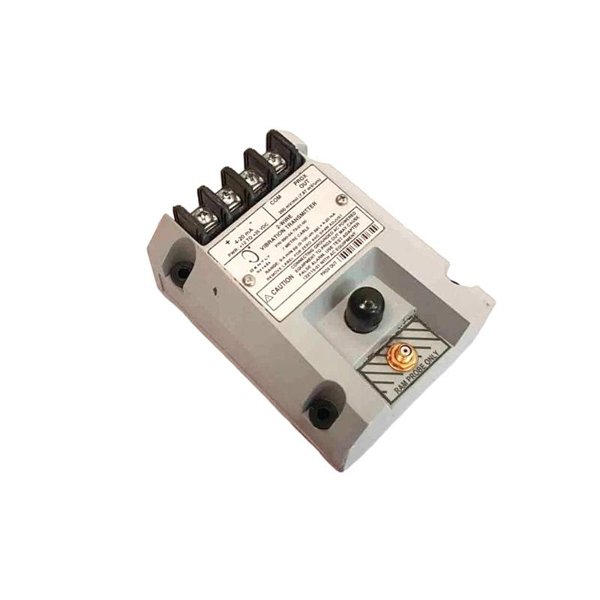

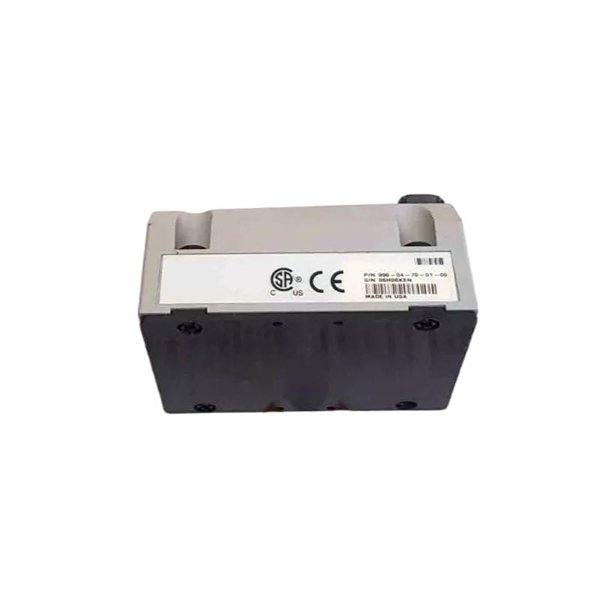

Bently Nevada 990-04-70-01-00 122115-01 990 Vibration Transmitter

The Bently Nevada 990 Vibration Transmitter (Model 990-04-70-01-00 / 122115-01) is a precision industrial instrument designed for monitoring vibration in rotating machinery. This transmitter converts raw vibration sensor signals into standardized output signals suitable for control and monitoring systems. It is widely used in critical applications, including turbines, compressors, pumps, and motors, where continuous vibration monitoring is essential to prevent mechanical failures and optimize maintenance schedules.

Constructed with high-quality electronic components and rugged housings, the 990 transmitter ensures reliable operation in demanding industrial environments. The device is designed to work seamlessly with Bently Nevada 3300 Series Proximity Probes and other compatible vibration sensors, providing accurate and real-time data to plant monitoring systems. Its design emphasizes both accuracy and durability, allowing for long-term reliability in harsh industrial conditions.

Product Specifications

Applications

The 990 Vibration Transmitter is utilized in a broad range of industrial scenarios where vibration monitoring is critical. Common applications include:

• Turbine Monitoring: Captures real-time vibration levels for steam, gas, and hydro turbines.

• Compressor Protection: Monitors shaft vibration and provides input to protective systems.

• Pump Health Analysis: Ensures early detection of mechanical imbalance or bearing wear.

• Motor Condition Monitoring: Tracks vibration patterns to prevent catastrophic failures.

• Industrial Process Safety: Integrates with control systems to trigger alarms or shutdowns during abnormal vibration events.

• Retrofit Projects: Allows installation in existing monitoring systems for improved vibration diagnostics.

Advantages

• High Precision: Accurate conversion of sensor signals into proportional output for reliable monitoring.

• Wide Compatibility: Works with Bently Nevada 3300 Series sensors and other compatible vibration devices.

• Industrial Durability: Robust housing ensures stable operation in high-temperature, dusty, or corrosive environments.

• Simplified Integration: Standard 4-20 mA output facilitates connection with existing monitoring and control systems.

• Vibration Immunity: Designed to minimize false readings caused by environmental vibrations.

• Continuous Monitoring: Supports real-time machine health monitoring to prevent unplanned downtime.

• Reduced Maintenance: Long-term stability reduces the need for frequent recalibration.

FAQ

1. What types of sensors are compatible with the 990 Vibration Transmitter?

   It is compatible with Bently Nevada 3300 Series Proximity Probes and other eddy current-based vibration sensors.

2. What output signal does the transmitter provide?

   The transmitter delivers a 4-20 mA signal proportional to the vibration amplitude, suitable for control and monitoring systems.

3. What is the frequency response of the transmitter?

   It operates effectively across 0.5 Hz to 1 kHz, covering a wide range of machinery vibration frequencies.

4. How does the transmitter maintain accuracy in noisy industrial environments?

   Internal filtering and shielding minimize the effects of electromagnetic interference, preserving signal integrity.

5. Can the transmitter operate in extreme temperatures?

   Yes, it functions reliably within -20°C to +70°C.

6. How is the transmitter mounted to machinery?

   Standard threaded mounting allows secure installation directly on the machine housing or sensor bracket.

7. Is the transmitter suitable for outdoor or corrosive environments?

   Yes, the IP65-rated aluminum housing with corrosion-resistant finish protects against dust, moisture, and industrial chemicals.

8. Can multiple transmitters be integrated into a single monitoring system?

   Yes, multiple units can be connected to a centralized control or monitoring system without signal interference.

9. What power supply does the transmitter require?

   Nominal 24 VDC, with operational range from 18 VDC to 30 VDC.

10. Does the transmitter provide any self-diagnostic features?

    While primarily analog, the transmitter design ensures stable output and consistent performance; system-level diagnostics rely on connected monitoring equipment.
