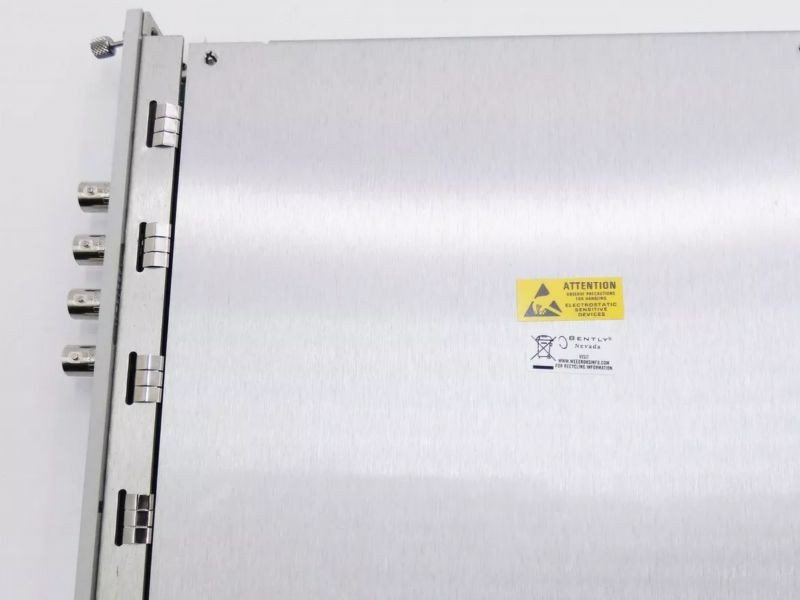

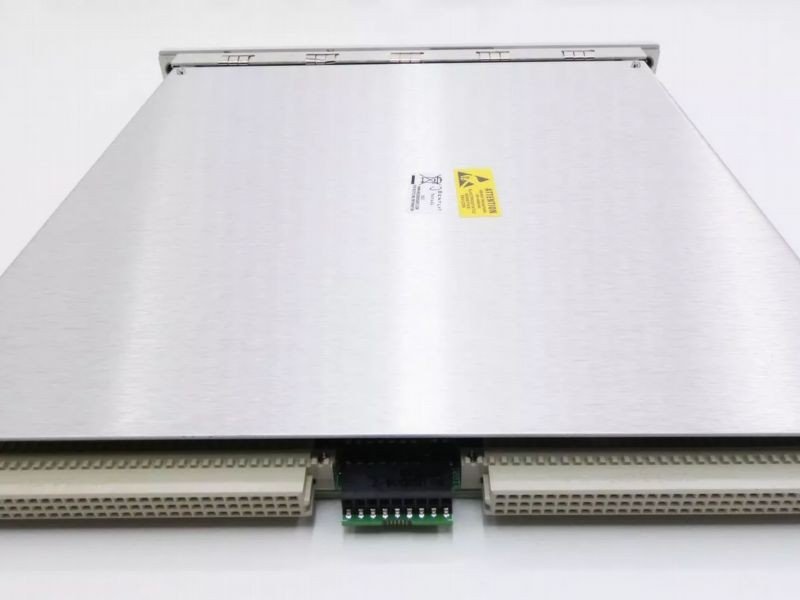

Bently Nevada 3500/40M-01-00 176449-01 Proximitor Monitor
Item Number:3500/40M-01-00 176449-01
Brand: Bently Nevada
Lead Time: In stock
Description: Proximitor Monitor
Payment: T/T
Product Description
Bently Nevada 3500/40M-01-00 176449-01 Proximitor Monitor is a four-channel monitor that is part of Bently Nevada's 3500 series vibration monitoring system. It receives input signals from Bently Nevada proximity sensors, conditions and processes the signals to provide various vibration and position measurement data, and compares the processed signals with user-programmable alarm settings to provide operators with vibration information on key equipment. It is mainly used for condition monitoring and protection of mechanical equipment.
Fuctions & Features
- Channel Configuration:176449-01 Proximitor Monitor Each channel can be programmed through the 3500 Rack Configuration Software to perform the following functions:
- Radial Vibration
- Eccentricity
- Bearing Wear Monitoring (REBAM)
- Thrust Position
- Differential Expansion
- Mechanical Equipment Protection: 176449-01 Proximitor Monitor continuously monitors equipment parameters and compares them with configured alarm points, triggering alarms to protect equipment.
- Status indication: The front panel of the 176449-01 Proximitor Monitor is equipped with LED indicators such as OK, TX/RX, and Bypass, which can intuitively display the operation, communication, and bypass status of the device.
Specification
|
Category |
Specifications |
|
Inputs |
|
|
Signal Input |
1 to 4 proximity transducer signals |
|
Input Impedance |
10 kΩ (Standard I/O) |
|
Power Consumption |
7.7 Watts (typical) |
|
Sensitivity |
|
|
Radial Vibration |
3.94 mV/μm (100 mV/mil) or 7.87 mV/μm (200 mV/mil) |
|
Thrust Position |
3.94 mV/μm (100 mV/mil) or 7.87 mV/μm (200 mV/mil) |
|
Eccentricity |
3.94 mV/μm (100 mV/mil) or 7.87 mV/μm (200 mV/mil) |
|
Differential Expansion |
0.394 mV/μm (10 mV/mil) or 0.787 mV/μm (20 mV/mil) |
|
REBAM (Bearing Wear Monitoring) |
40 mV/μm (1000 mV/mil) or 80 mV/μm (2000 mV/mil) |
|
Outputs |
|
|
Front Panel LEDs |
|
|
OK LED |
Indicates normal operation of the 3500/40M module |
|
TX/RX LED |
Indicates communication status with other modules in the 3500 rack |
|
Bypass LED |
Indicates when the 3500/40M module is in Bypass Mode |
