Vibro-Meter EA402 913-402-000-013-A1-E090-F0-G000 Extension Cable
Item Number:EA402 913-402-000-013-A1-E090-F0-G000
Brand: Vibro-Meter
Lead Time: In stock
Description:Extension Cable
Payment: T/T
Product Description

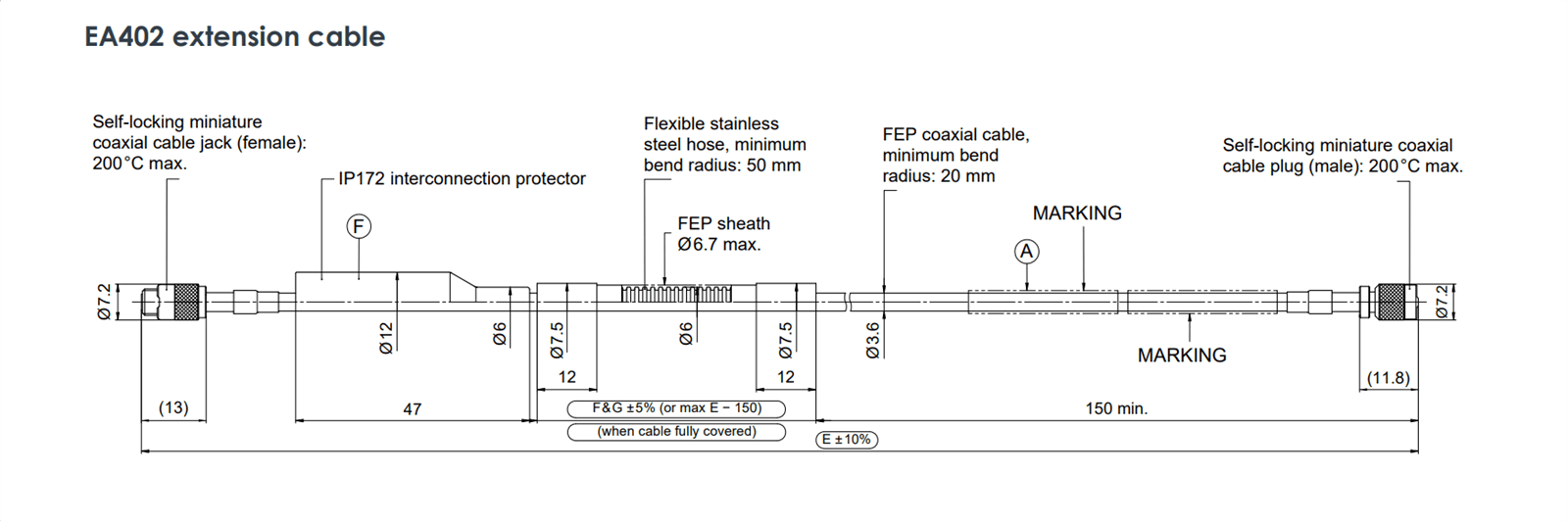

EA402 913-402-000-013-A1-E090-F0-G000 is a 9.0 meter unarmored extension cable that is part of a system built around a TQ402 or TQ412 non-contact sensor and an IQS450 signal conditioner. The cable mates with the TQ402 and TQ412 sensors to form a calibrated proximity measurement system with interchangeable components. The system outputs a voltage or current signal that is proportional to the distance between the sensor tip and a target such as a machine shaft. The TQ402 sensor can be used with a single EA402 extension cable to effectively extend the head length.
Fuctions & Features
- System connection and extension: EA402 can be matched with TQ402 and TQ412 non-contact sensors to connect sensors to other parts of the system, effectively extending the front end length to meet different measurement distance requirements.
- Composition of measurement system: EA402, together with components such as sensors and signal conditioners, constitutes a proximity measurement system that can output voltage or current signals proportional to distance to achieve distance measurement of targets such as machine axes.
- Protection function coordination: EA402 can be used with optional housings, junction boxes and interconnection protectors to provide mechanical and environmental protection for cable connection parts.
Specification
|
Parameter |
Specification |
|
Temperature Range |
|
|
Sensor (Operating) |
-40°C to +180°C, drift <5% |
|
Sensor (Short-term Tolerance) |
+180°C to +220°C, drift >5% |
|
Sensor and Cable (for Explosive Areas) |
-40°C to +195°C |
|
Cable, Connectors, and Optional Protection |
-40°C to +200°C |
|
Ingress Protection (IP) |
IP68 (for proximity sensor head, including sensor tip and integral cable) |
|
Vibration (IEC 60068-2-26) |
10 to 500 Hz, peak 5g |
|
Shock Acceleration (IEC 60068-2-27) |
15g peak (half-sine wave, 11ms duration) |
