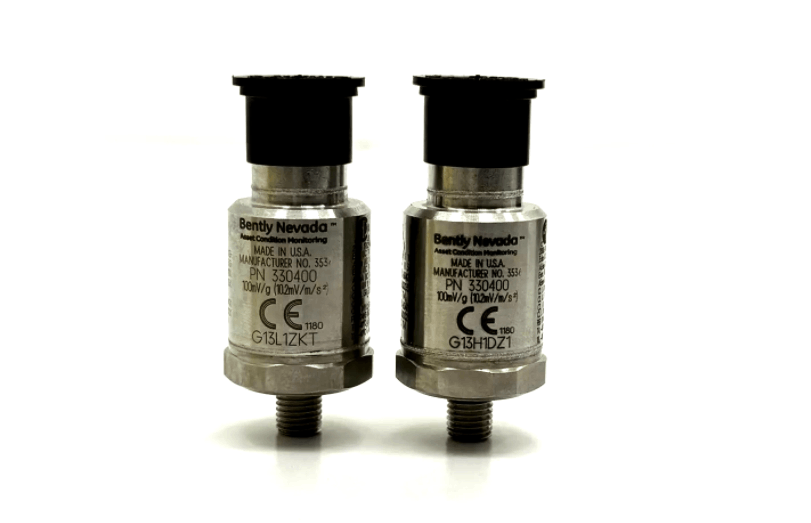

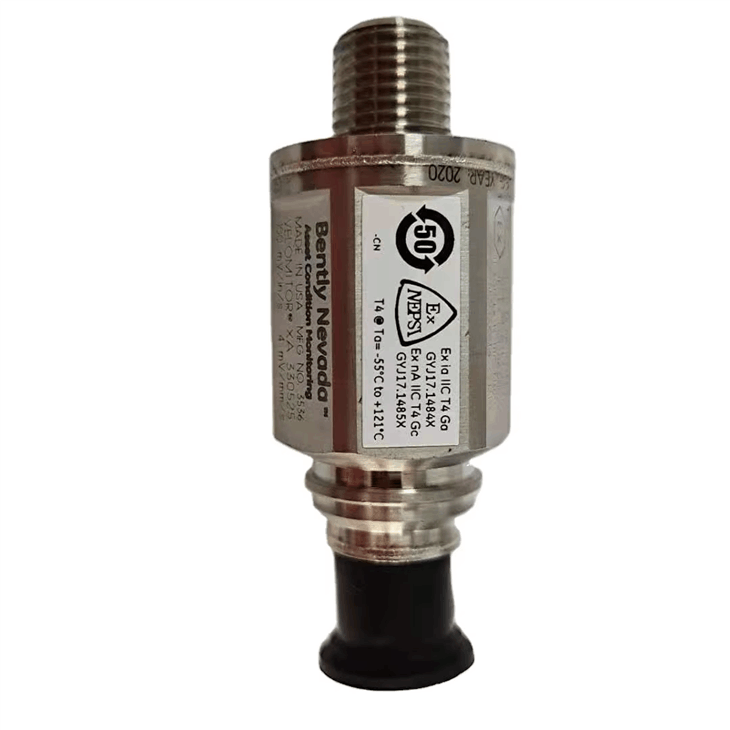

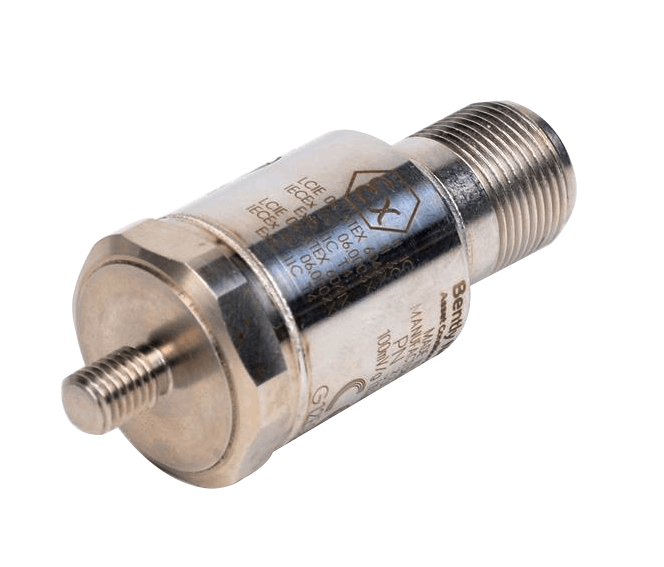

Bently Nevada 330400-01-05 Accelerometer Acceleration Transducer
Item Number:330400-01-05
Brand:Bently Nevada
Price:$1
Lead Time: In stock
Description:Accelerometer Acceleration Transducers
Payment: T/T
Product Description
Bently Nevada 330400-01-05 accelerometer is a sensor used to measure acceleration and is commonly used to monitor vibration in industrial machines. It complies with the American Petroleum Institute (API) Standard 670, which specifies requirements for accelerometers used in machinery monitoring systems such as turbines, compressors, and pumps.
In terms of frequency range, both models can operate in the frequency range of 10 Hz to 15 kHz, making them suitable for a wide range of machinery monitoring applications from low speed to high speed. However, at frequencies above 15 kHz or close to the resonant frequency of the accelerometer, vibration may cause a significant reduction in measurement range and accuracy.
In terms of temperature range, these sensors are designed to operate at temperatures between +20 and +30 degrees Celsius (+68 to +86 degrees Fahrenheit), and operation outside of this specified temperature range may result in false readings or inaccurate measurements. In summary, the Bently Nevada 330400-01-05 accelerometer provides an effective measurement tool for industrial machinery vibration monitoring due to its specific frequency and temperature range.
Function & Features
- Frequency Range: Both models operate over a frequency range of 10 Hz to 15 kHz. This makes them suitable for a wide range of machinery monitoring applications from low-speed to high-speed machinery. However, vibrations at frequencies above 15 kHz or close to the accelerometer's resonant frequency may cause significant degradation in measurement range and accuracy.
- Temperature Range: These sensors are designed to operate at temperatures between +20 and +30°C (+68 to +86°F). Operation outside of this specified temperature range may result in false readings or inaccurate measurements.
Specifications
|
Parameter |
Specification |
Notes |
|
Sensitivity |
10.2 mV/(m/s²) (100 mV/g) ±5% |
Outputs 100 mV per 1 g acceleration |
|
Acceleration Range |
±490 m/s² (50 g) peak |
Frequency range: 10 Hz to 15 kHz |
|
Amplitude Linearity |
±1% up to 490 m/s² (50 g) peak |
Accuracy within ±1% of actual value |
|
Broadband Noise (10 Hz–15 kHz) |
0.039 m/s² (0.004 g) rms |
Low noise floor |
FAQ
Q: What is the brand?
A:Bently Nevada
Q: What is the type?
A:Accelerometer Acceleration Transducer
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
