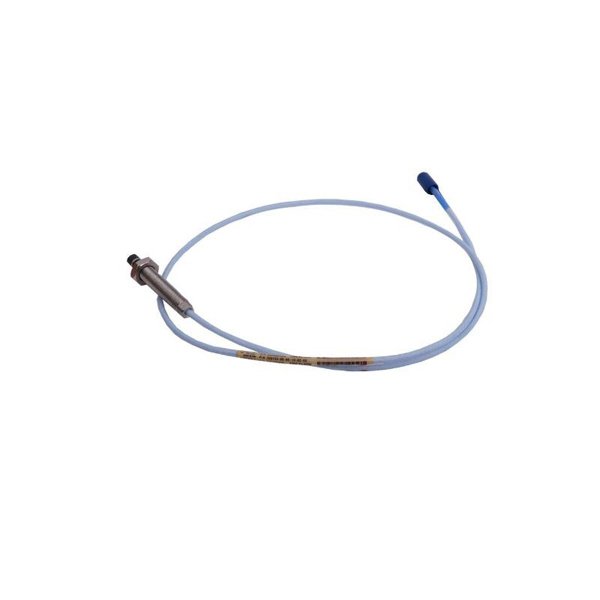

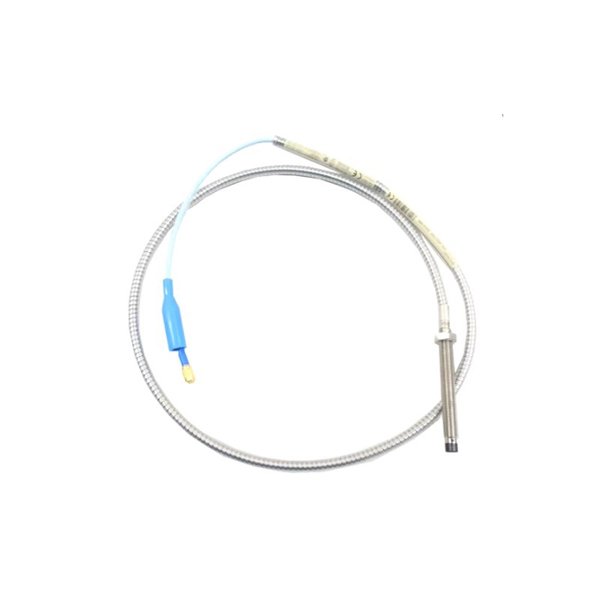

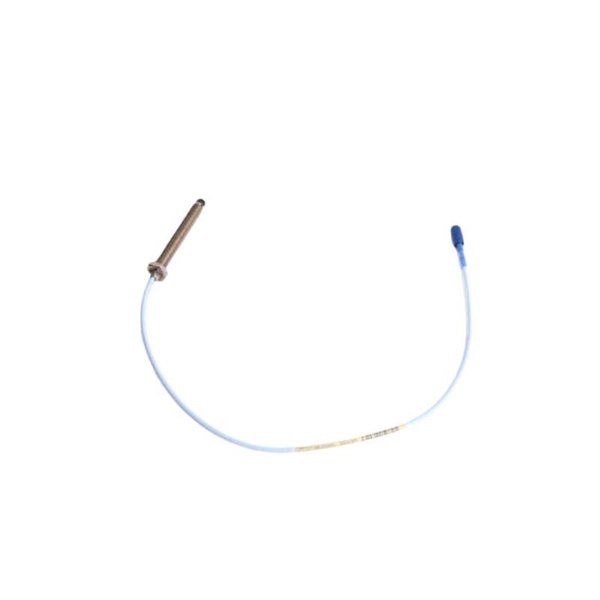

Bently Nevada 330103-00-04-05-02-00 3300 XL 8mm Proximity Probes

The Bently Nevada 330103-00-04-05-02-00, part of the 3300 XL series, is a precision 8mm proximity probe designed for vibration and position measurement in rotating machinery. Manufactured by Bently Nevada, a trusted name in condition monitoring, this probe is engineered for reliability and accuracy in critical industrial environments. The 3300 XL proximity probe converts shaft vibration into electrical signals that can be analyzed to assess the condition of machinery, helping to prevent unexpected failures. Its rugged construction and proven sensing technology ensure consistent performance even in demanding applications such as turbines, compressors, motors, and generators.

Product Parameters

Product Applications

The 3300 XL 8mm Proximity Probe is widely used in the following industrial settings:

• Monitoring vibration and shaft displacement in steam turbines and gas turbines.

• Condition monitoring of centrifugal compressors and pumps.

• Measurement of rotor position in electric motors and generators.

• Application in refinery, petrochemical, and power generation plants to ensure machinery health.

• Use in heavy industrial machinery where precise shaft movement detection is critical.

• Integration with Bently Nevada’s 3300 XL machinery protection systems for continuous condition monitoring.

Product Advantages

The 3300 XL proximity probe offers several distinct advantages that make it a preferred choice for machinery monitoring professionals:

• High Precision: Provides accurate measurement of shaft vibration and position within an 8mm sensing range.

• Durability: Built to withstand harsh industrial environments including high temperatures and moisture.

• Reliable Signal Output: Produces a stable AC voltage output suitable for a wide range of vibration analysis equipment.

• Easy Installation: Compatible connectors and flexible cable lengths allow straightforward integration into existing systems.

• Extended Operating Range: Works efficiently across a broad temperature spectrum from -40 °C to +125 °C.

• Robust Construction: IP67-rated protection ensures resistance to dust and water ingress.

• Industry Standard Compliance: Compatible with a variety of Bently Nevada monitoring systems and widely accepted in industry.

FAQ

1. What is the sensing range of this proximity probe?

   The 3300 XL probe has an 8mm sensing range to accurately measure shaft vibration and position.

2. Can the probe be used in high-temperature environments?

   Yes, it operates reliably up to +125 °C.

3. What kind of output signal does the probe generate?

   It provides an AC voltage signal proportional to the distance from the target.

4. Is the probe compatible with other Bently Nevada monitoring systems?

   Yes, it is fully compatible with the 3300 XL series machinery protection systems.

5. What is the typical cable length supplied with the probe?

   The standard total length is around 0.5 meter, with options for customization.

6. How resistant is the probe to environmental factors?

   It has an IP67 rating, meaning it is dust-tight and can withstand immersion in water up to 1 meter.

7. Can this probe detect shaft displacement as well as vibration?

   Yes, it is designed for both vibration and shaft displacement measurements.

8. What connector type does the probe use?

   It uses connectors compatible with MIL-C-26482 standards.

9. Is there a recommended maintenance schedule for this probe?

   Regular inspection and cleaning during routine machinery maintenance are recommended, but the probe itself requires minimal upkeep.

10. Can this probe be used in explosive or hazardous environments?

    It is not intrinsically safe by itself; special certified versions are required for hazardous areas.
