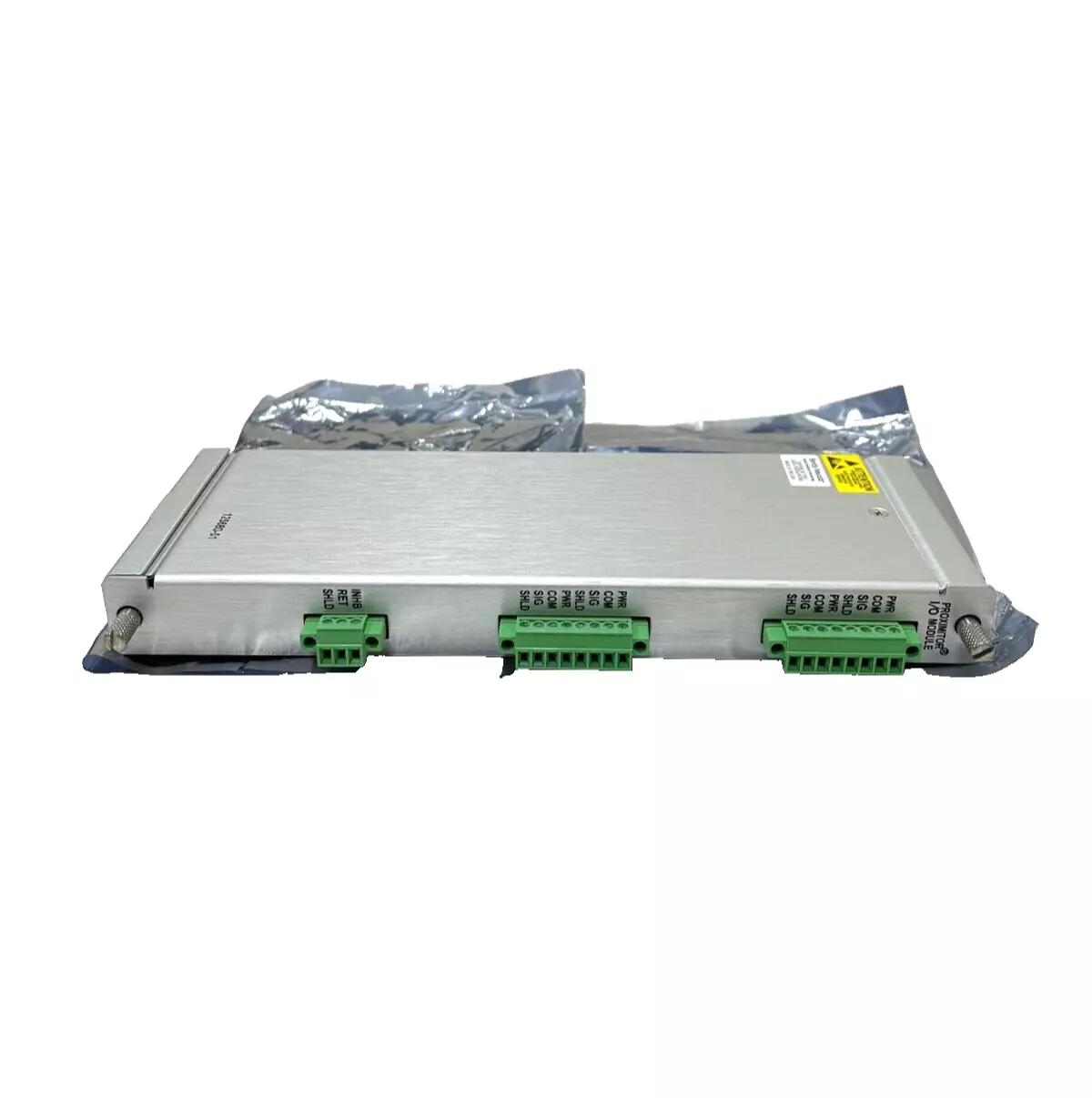

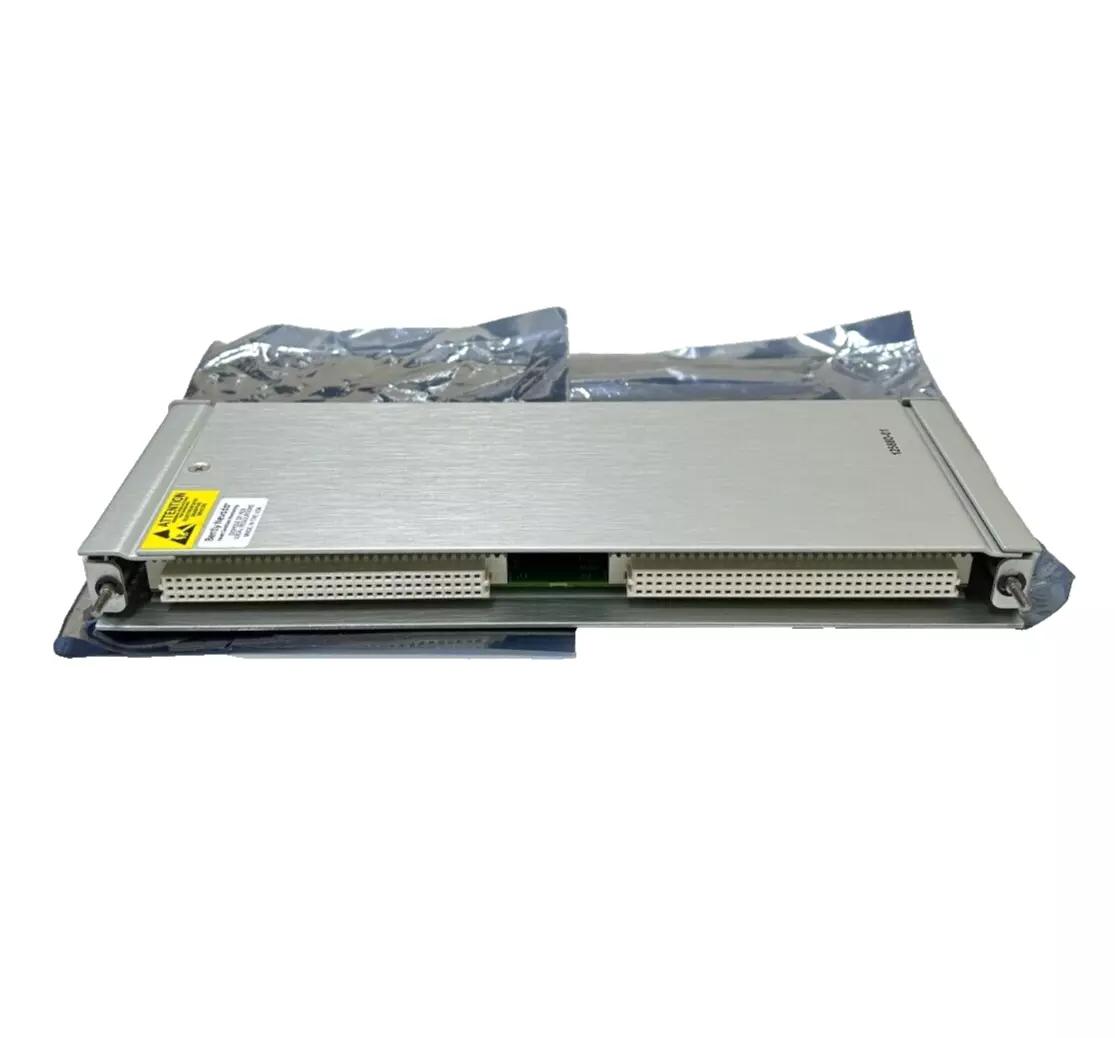

Bently Nevada 3500/40-01-00 125680-01 Proximitor I/O Module

Bently Nevada 3500/40-01-00 125680-01 Proximitor I/O Module (with internal terminals) is part of the 3500 Monitoring System and is designed to receive input signals from Bently Nevada proximity sensors and condition the signals to provide a variety of vibration and position measurements. The module compares the conditioned signals to user-programmable alarm values ​​for machinery protection. Each channel is programmable through the 3500 Frame Configuration Software to perform functions such as Radial Vibration, Eccentricity, REBAM, Thrust Position, and Differential Expansion.

Fuctions & Features

• Multi-channel monitoring and function selection: The 3500/40M 125680-01 Proximitor Monitor is a 4-channel monitor. With the 3500 Rack Configuration Software, users can program each channel to achieve multiple functions such as radial vibration, thrust position, differential expansion, eccentricity and REBAM.

• Paired channel setting: The 125680-01 monitoring channels are set up in pairs and can perform up to two functions at the same time. For example, channels 1 and 2 can perform one function, while channels 3 and 4 can perform other functions (or the same).

• Static value generation: Each channel of the 125680-01 will condition the input signal according to the configuration and generate various parameters called "static values", which helps to more accurately reflect the operating status of the mechanical equipment.

• Main functions Mechanical protection: 125680-01 continuously compares the monitored parameters with the predefined alarm set values ​​and triggers an alarm when the parameters exceed the set range, thereby providing protection for mechanical equipment and reducing the risk of equipment failure.

Specification
