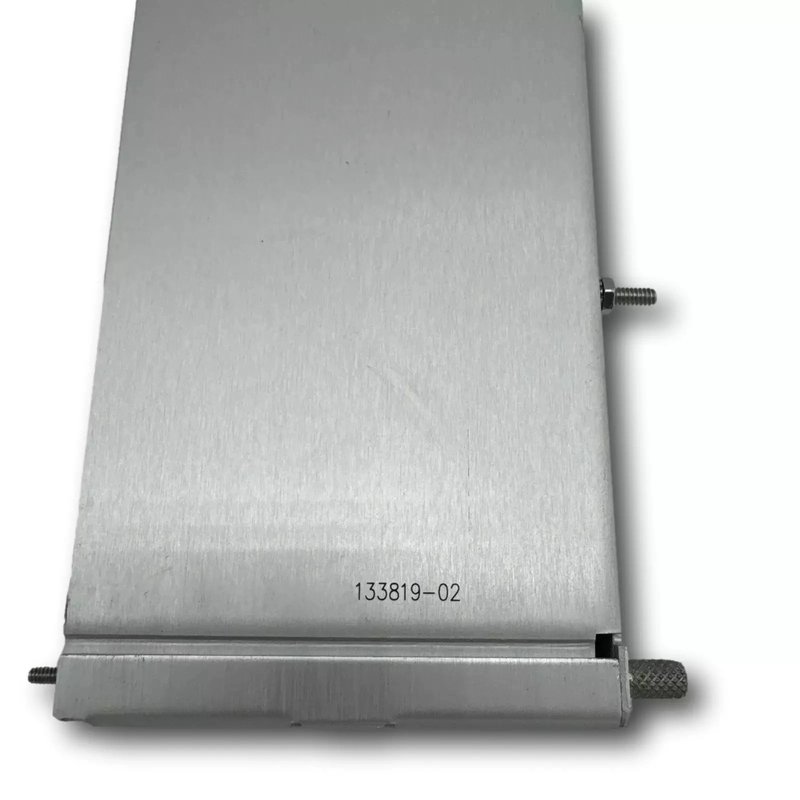

Bently Nevada 3500/61-01-00 133819-02 RTD/TC Temp I/O Module
Item Number:3500/61-01-00 133819-02
Brand:Bently Nevada
Lead Time: In stock
Description:RTD/TC Temp I/O Module
Payment: T/T
Product Description
Bently Nevada 3500/61-01-00 133819-02 RTD/TC Temperature I/O Module is a temperature monitoring module developed by Bently Nevada, belonging to the 3500 series, supporting RTD (resistance temperature detector) and thermocouple (TC) temperature input. The module has internal terminals that can process the input signal and compare it with the user-programmable alarm set point to achieve temperature monitoring.
Function & Features
- Input Support: The 133819-02 RTD/TC Temperature I/O Module supports both thermocouple (TC) and thermal resistor (RTD) temperature inputs. The 3500/60 and 3500/61 Series Temperature Monitoring Modules provide 6 channels of temperature monitoring, conditioning the inputs and comparing them to user-programmable alarm setpoints.
- Configuration: The 133819-02 RTD/TC Temperature I/O Module can be configured for RTD or TC temperature measurements using the 3500 Rack Configuration Software.
- Special Setup: When the 133819-02 RTD/TC Temperature I/O Module is used in a triple-module redundant (TMR) setup, the temperature monitors must be installed adjacent to each other in groups of three. The system uses two different voting methods to prevent single-point failures.
Specifications
|
Signal Input |
Accepts from 1 to 6 RTD or TC transducer signals |
|
|
Input Impedance |
10 MΩ for each lead input |
|
|
Nominal Consumption |
9 watts (for 3500/61) |
|
|
Dimensions (Height x Width x Depth) |
241.3 mm x 24.4 mm x 99.1 mm (9.50 in x 0.96 in x 3.90 in) |
|
|
Weight |
0.45 kg (1.0 lb) |
|
|
RTD Type |
100Ω 3 - wire & 4 - wire platinum RTD (alpha = 0.00385) |
|
|
Temperature Range (Standard) |
-200° C to +850° C (-328 °F to +1562 °F) |
|
|
Temperature Range (With external barriers) |
-50 °C to +850 °C (-122 °F to +1562 °F) |
|
FAQ
Q: What is the brand?
A:Bently Nevada
Q: What is the type?
A:RTD/TC Temp I/O Module
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
Q: Why choose us?
A: We are the supplier for industrial automation spare parts,We speciaized in PLC DCS and TSl system modules and spare parts for 10 years, With our professional expertise and extensive experience, we are well-equipped to meet your requirements.
