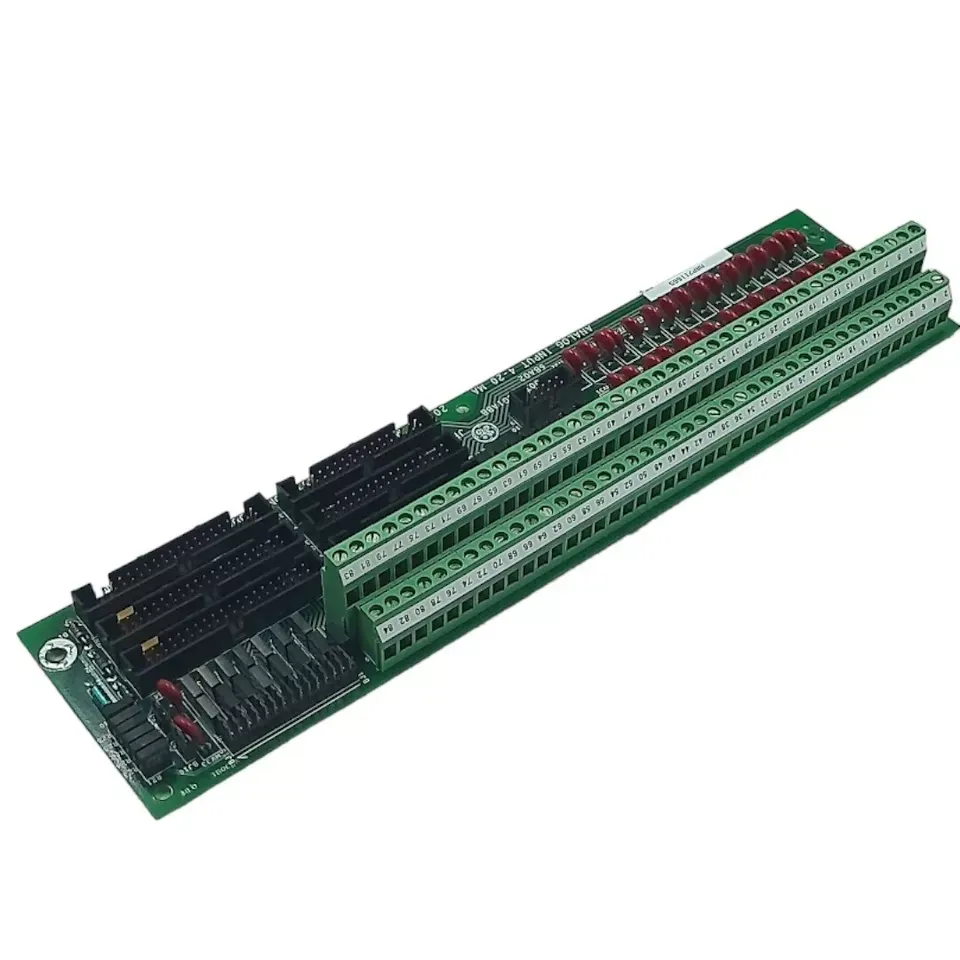

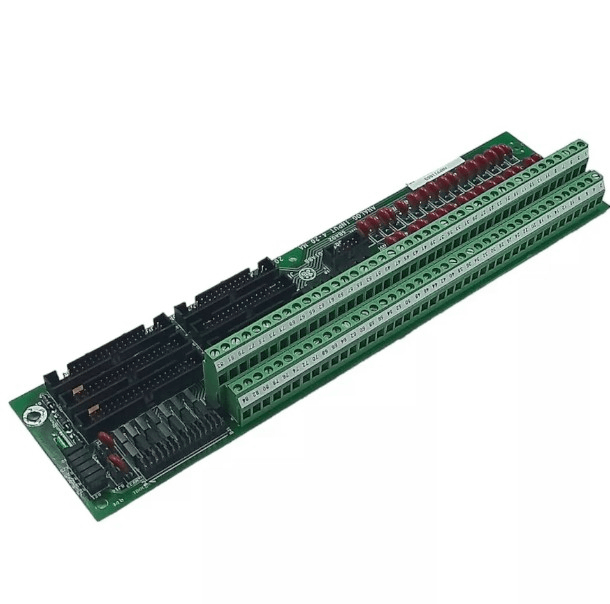

General Electric DS200TBQCG1A DS200TBQCG1AAA RST Analog Termination Board
Item Number:DS200TBQCG1A DS200TBQCG1AAA
Brand:GE
Lead Time: In stock
Description:RST Analog Termination Board
Payment: T/T
Product Description
The GE DS200TBQCG1A is an analog input terminal block designed for the GE Mark V system. It is an essential component for signal connections between different boards within the control system, especially the boards that handle analog input and output signals based on the core settings. Located at position 9 on the system's R1, R2, and R3 cores. This special location allows it to act as a key connector, facilitating signal transmission between each core and other components.
Function & Features
- Position information: GE DS200TBQCG1A is located at the 9th position of the system R1, R2, and R3 core boards. This special position makes it play a key connection role in the system.
- Connection: GE DS200TBQCG1A connects the TCQA board in each core line to the terminal board through TBQC.
- Output range support: GE DS200TBQCG1A module can support reading the 20 - 200 mA output of the TCQA board in the corresponding core board.
- Terminal configuration: GE DS200TBQCG1A contains two terminal blocks TB1 and TB2, each of which has 83 connection points for signal wiring.
Specifications
|
Parameter |
Details |
|
Model |
DS200TBQCG1A DS200TBQCG1AAA |
|
Input signal |
Processes LVDT/R position input signals and 4 - 20 mA |
| Series | Mark V |
|
Size |
8.26 cm high x 4.18 cm |
|
Operating temperature |
-30 to 55 °C |
|
Common Mode Voltage Range |
+5 V dc |
|
Analog output current |
0 - 20 mA |
|
Maximum Lead Resistance |
15Ω |
|
Number of channels |
12 |
FAQ
Q: What is the brand?
A: GE
Q: What is the type?
A:RST Analog Termination Board
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
Q: Why choose us?
A: We are the supplier for industrial automation spare parts,We speciaized in PLC DCS and TSl system modules and spare parts for 10 years, With our professional expertise and extensive experience, we are well-equipped to meet your requirements.
