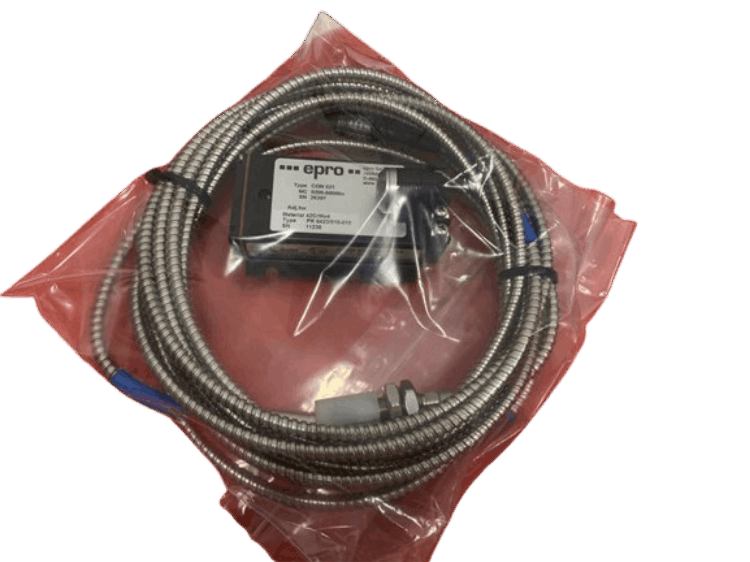

Epro PR6423/010-010 8mm Eddy Current Sensor
Item Number: PR6423/010-010
Brand:EPRO
Lead Time: In stock
Description: 8mm Eddy Current Sensor
Payment: T/T
Product Description
The EPRO PR6423/010-010 8mm eddy current sensor is a non-contact eddy current displacement sensor used to measure dynamic parameters of rotating machinery. It utilizes the eddy current induction principle, detecting displacement changes of a metal target through an electromagnetic field.
Main measurement ranges:
Radial vibration measurement: Monitors the vibration amplitude of a shaft during operation.
Axial displacement measurement: Monitors axial movement of the shaft to prevent friction and collision with components such as impellers and gears.
Eccentricity measurement: Measures shaft deflection during low-speed cranking.
Speed measurement: Measures shaft speed and phase using the keyphasor function.
Position measurement: Measures shaft clearance relative to stationary components.
Products Description
- The EPRO PR6423/010-010 sensor body and 1 meter cable can withstand radiation doses up to 80 Mrad, far exceeding ordinary sensors.
- In a strong radiation field of 0.5 Sv/h, the EPRO PR6423/010-010 calculated lifetime is extremely long (18.26 years for neutron radiation and 183 years for beta/gamma radiation).
- The EPRO PR6423/010-010 sensor probe is made of epoxy resin, which is insulating and anti-aging, allowing the probe to maintain accurate measurements during long-term use.
- The EPRO PR6423/010-010 housing is made of stainless steel with an EPDM O-ring seal to protect the internal components.
Specifications
|
Parameter |
Details |
|
Model |
PR6423/010-010 |
|
Linear Measurement Range |
2 mm (80 mils) |
|
Initial Air Gap |
0.5 mm (20 mils) |
|
Incremental Scale Factor (ISF) |
ISO: 8 V/mm (203.2 mV/mil) ± 5% @ temperature range 0 to 45°C (+32 to +113°F) |
|
Deviation from best fit straight line (DSL) |
± 0.025 mm (± 1 mil) @ temperature range 0 to 45°C (+32 to +113°F) |
|
Minimum Shaft Diameter |
25 mm (0.79") |
|
Target Material (Ferromagnetic Steel) |
42CrMo4 (AISI/SAE 4140) Standard; Other (On Request) |
|
Weight (Sensor with 1m Cable) |
Approx. 100 grams (3.53 oz) |
