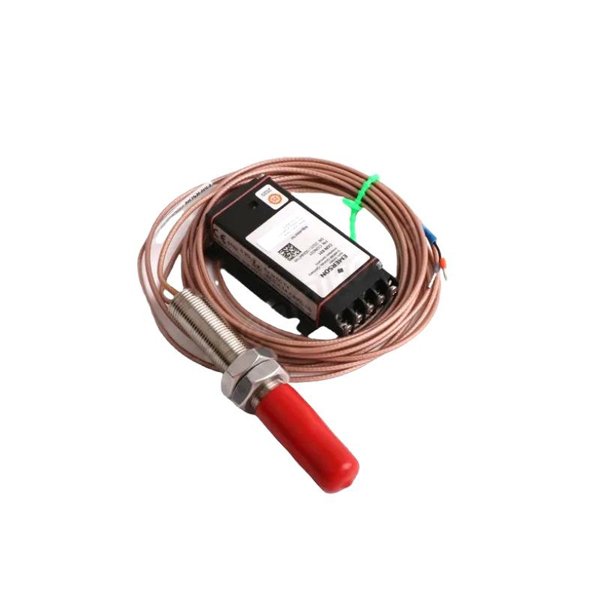

Epro PR6424/01 16mm Eddy Current Sensor

The Epro PR6424/01 is a high-precision 16mm eddy current sensor designed for non-contact measurement of displacement, vibration, and position in industrial applications. This sensor utilizes the principle of eddy current measurement, making it ideal for detecting changes in the proximity of a conductive target. It offers excellent accuracy, reliability, and performance, making it an ideal solution for applications in fields such as machine condition monitoring, industrial automation, and precision measurement.

The Epro PR6424/01 is known for its compact design, featuring a 16mm diameter sensor head that allows for easy integration into space-constrained environments. With its high-frequency response and robust construction, it is capable of providing real-time, precise measurements even in harsh industrial conditions.

Key Features

• High-Precision Measurement: Capable of detecting small displacements with high accuracy, ensuring reliable performance in critical applications.

• Non-Contact Technology: Uses eddy current sensing, which means there is no physical contact with the measured object, reducing wear and tear and enhancing longevity.

• Compact Design: With a sensor head diameter of just 16mm, the module fits into tight spaces, making it ideal for applications where space is limited.

• Robust Construction: Built to withstand harsh industrial environments, with resistance to vibrations, temperature variations, and mechanical stress.

• Wide Application Range: Suitable for both high-speed and high-precision measurement tasks in industrial automation and machine monitoring.

• High-Frequency Response: Ensures fast and accurate detection of changes in the target’s position or displacement.

Technical Specifications

Applications

The Epro PR6424/01 16mm eddy current sensor is widely used in a variety of industrial applications requiring high-precision, non-contact measurements:

• Machine Condition Monitoring: Used to monitor the vibration, displacement, and position of rotating or moving machinery components to detect wear, misalignment, and other faults.

• Automation Systems: Essential in systems where accurate position and displacement data are needed to control automation processes.

• Vibration Measurement: Ideal for measuring vibrations in rotating machinery, helping to prevent unexpected failures and enabling predictive maintenance.

• Position Detection: Used in precision measurement applications where the position of components needs to be monitored continuously.

• Control Systems: The sensor can be integrated into control systems for feedback on position or displacement for process control in industrial settings.

• Testing and Calibration: Provides precise and reliable data for calibrating machines, testing components, and ensuring quality control in manufacturing processes.

Advantages

• Non-Contact Measurement: Eliminates the need for physical contact with the target, reducing wear and tear on the sensor and the measured object, while ensuring greater durability and longer lifespan.

• High Sensitivity and Resolution: Offers fine measurement resolution, enabling accurate detection of small movements or changes in position, ideal for precision tasks.

• Compact and Space-Saving: Its small 16mm diameter sensor head makes it easy to integrate into tight spaces where other measurement sensors may not fit.

• Versatile Application Range: Whether measuring vibration, displacement, or position, the sensor offers flexibility across various applications in different industries.

• Rugged Design: With an IP67 rating, the sensor is designed to operate in harsh industrial environments, withstanding dust, moisture, and extreme conditions.

• Fast Response Time: The high-frequency response allows for rapid measurement updates, making it suitable for dynamic and high-speed applications.

FAQ

1. What types of materials can the PR6424/01 sensor measure?

   Answer: The sensor is designed to measure displacement on conductive materials, such as metals like steel, aluminum, and other alloys.

2. How does the sensor measure displacement without contact?

   Answer: The PR6424/01 uses the eddy current principle, where a magnetic field induces currents in the target, and changes in the target’s position alter the field, which the sensor detects.

3. What is the maximum measurement range of the PR6424/01?

   Answer: The sensor can measure up to 20mm, depending on the material of the target and the configuration of the sensor.

4. What output types does the PR6424/01 provide?

   Answer: The sensor provides analog outputs, typically 4-20mA or voltage output, which can be directly integrated into control systems.

5. Can the PR6424/01 sensor be used in harsh industrial environments?

   Answer: Yes, the sensor is rated IP67, meaning it is resistant to dust, moisture, and can operate in challenging industrial conditions.

6. What is the frequency response of the PR6424/01?

   Answer: The sensor has a high-frequency response, allowing it to detect fast changes in displacement and providing real-time measurement updates.

7. What is the operating temperature range of the PR6424/01?

   Answer: The sensor operates within a temperature range of -40°C to +85°C, making it suitable for a wide range of industrial applications.

8. What are the primary applications for the PR6424/01 sensor?

   Answer: It is commonly used for machine condition monitoring, vibration measurement, position detection, and automation systems.

9. Can the PR6424/01 be integrated into existing control systems?

   Answer: Yes, the sensor’s analog output can be integrated into existing control systems for real-time feedback and monitoring.

10. What advantages does the non-contact measurement provide?

    Answer: Non-contact measurement reduces wear on both the sensor and the target, extending the sensor’s lifespan and improving overall system reliability.
