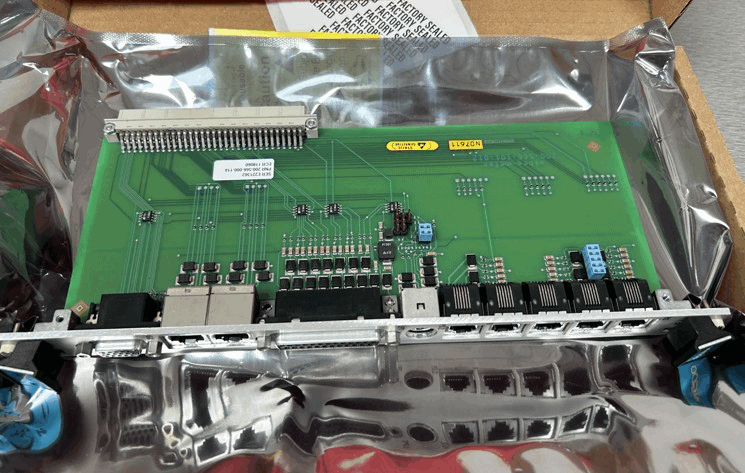

IOCN 200-566-000-112 Modular CPU Card And Input/Output Card
Item Number: IOCN 200-566-000-112
Brand: Vibro-Meter
Lead Time: In stock
Description:Modular CPU Card and Input/Output Card
Payment: T/T
Product Description
IOCN 200-566-000-112 is a Modular CPU Card and Input/Output Card, which serves as the signal and communication interface of the CPUM card and protects all inputs from EMI and signal effects. The card has Ethernet connectors (1 and 2) for primary and secondary Ethernet connections, a serial connector (RS) for secondary serial connections, and two pairs of serial connectors (A and B) for additional serial connections (from optional serial communication modules), which can configure the multi-point RS-485 network of the rack.
Function & Features
- Dual Ethernet interfaces: The IOCN 200-566-000-112 supports primary/backup Ethernet connections (Ethernet 1 & 2) for data upload to DCS/PLC or connection to VibroSight Server.
- Front LCD display: The IOCN displays real-time rack status, including CPUM uptime, IP address, security status and MPC4/AMC8 card measurements (bar graph + numeric value).
- Multi-layer security: The IOCN 200-566-000-112 has a hardware lock to prevent unauthorized physical access and software password authentication (MPSx Password)
Specifications
|
Parameter |
Details |
|
Part Number |
IOCN 200-566-000-112 |
|
Voltage |
5 V<sub>DC</sub> |
|
Power Consumption - CPUM |
<10 W |
|
Power Consumption - IOCN |
<2 W |
|
Total power consumption |
≤12 W |
|
Height |
6U (262 mm, 10.3 in) |
|
Width |
20 mm (0.8 in) |
|
Depth |
125 mm (4.9 in) |
|
Weight |
0.25 kg (0.55 lb) approx. |
FAQ
Q: What is the brand?
A:Others
Q: What is the type?
A:Modular CPU Card and Input/Output Card
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
Q: Why choose us?
A: We are the supplier for industrial automation spare parts,We speciaized in PLC DCS and TSl system modules and spare parts for 10 years, With our professional expertise and extensive experience, we are well-equipped to meet your requirements.
