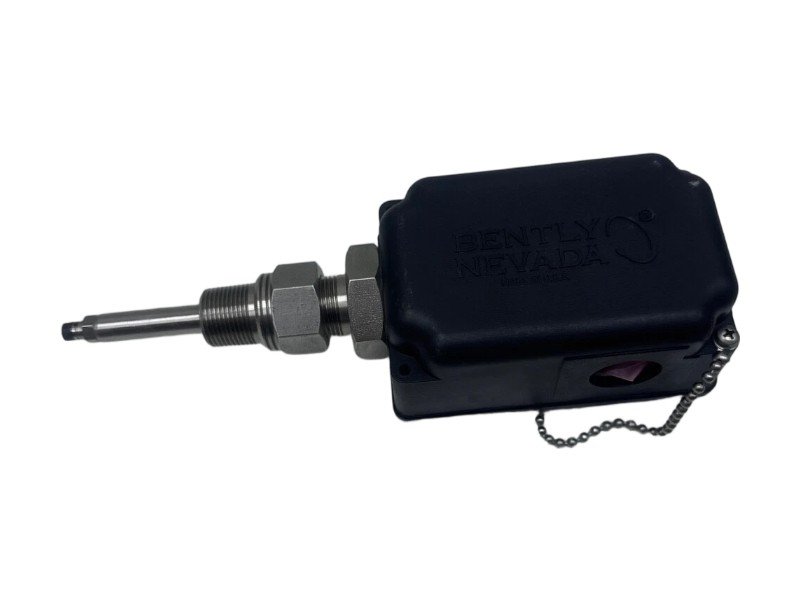

Bently Nevada 31000-28-10-00-015-03-02 Proximity Probe Housing Assembly
Item Number: 31000-28-10-00-015-03-02
Brand:Bently Nevada
Lead Time: in stock
Description:Proximity Probe Housing Assembly
Payment: T/T
Product Description
Bently Nevada 31000-28-10-00-015-03-02 Proximity Probe Housing Assembly is an externally mounted mechanical and environmental protection housing. This component is mainly designed to install a proximity probe (vibration probe or keyphasor probe) radially through the machine casing, thereby providing external access to the probe and cable. Without opening or disassembling the machine, this component allows the clearance between the probe and the shaft to be adjusted or the probe to be replaced from the outside.
Specification
| Parameter | Details |
|---|---|
| Model Number | 31000-28-10-00-015-03-02 |
| Housing Material | Glass-reinforced Polyphenylene Sulfide (PPS) thermoplastic containing conductive fibers |
| O-Ring Material | Neoprene |
| Recommended Torque (retaining nut) | 29.4 N·m (260 in·lb) |
| Mounting Thread | Standard configuration: 3/4-16 UNF |
| Weight | 1.2 kg |
Note: The housing itself is not explosion-proof. If the application requires an explosion-proof housing, the CA21000 or CA24701 series must be selected.
Function & Features
- Externally Accessible: The 31000-28-10-00-015-03-02 allows for probe gap adjustment and probe replacement without disassembling the machine.
- Radial Measurement Specific: The 31000-28-10-00-015-03-02 is specifically designed to measure the radial vibration of the shaft or keyphasor signal. For radial vibration measurements, the machine casing must be fixed to the bearing to obtain an accurate relative vibration signal.
- Not Suitable for Axial Position Measurement: The 31000-28-10-00-015-03-02 is not suitable for measuring axial displacement of the shaft with dual probes. The CA21022 model housing should be used for such applications.
Loading comments...
Bently Nevada 31000-28-10-00-015-03-02 Proximity Probe Housing Assembly
Item Number: 31000-28-10-00-015-03-02
Brand:Bently Nevada
Lead Time: in stock
Description:Proximity Probe Housing Assembly
Payment: T/T
Product Description
Bently Nevada 31000-28-10-00-015-03-02 Proximity Probe Housing Assembly is an externally mounted mechanical and environmental protection housing. This component is mainly designed to install a proximity probe (vibration probe or keyphasor probe) radially through the machine casing, thereby providing external access to the probe and cable. Without opening or disassembling the machine, this component allows the clearance between the probe and the shaft to be adjusted or the probe to be replaced from the outside.
Specification
| Parameter | Details |
|---|---|
| Model Number | 31000-28-10-00-015-03-02 |
| Housing Material | Glass-reinforced Polyphenylene Sulfide (PPS) thermoplastic containing conductive fibers |
| O-Ring Material | Neoprene |
| Recommended Torque (retaining nut) | 29.4 N·m (260 in·lb) |
| Mounting Thread | Standard configuration: 3/4-16 UNF |
| Weight | 1.2 kg |
Note: The housing itself is not explosion-proof. If the application requires an explosion-proof housing, the CA21000 or CA24701 series must be selected.
Function & Features
- Externally Accessible: The 31000-28-10-00-015-03-02 allows for probe gap adjustment and probe replacement without disassembling the machine.
- Radial Measurement Specific: The 31000-28-10-00-015-03-02 is specifically designed to measure the radial vibration of the shaft or keyphasor signal. For radial vibration measurements, the machine casing must be fixed to the bearing to obtain an accurate relative vibration signal.
- Not Suitable for Axial Position Measurement: The 31000-28-10-00-015-03-02 is not suitable for measuring axial displacement of the shaft with dual probes. The CA21022 model housing should be used for such applications.
