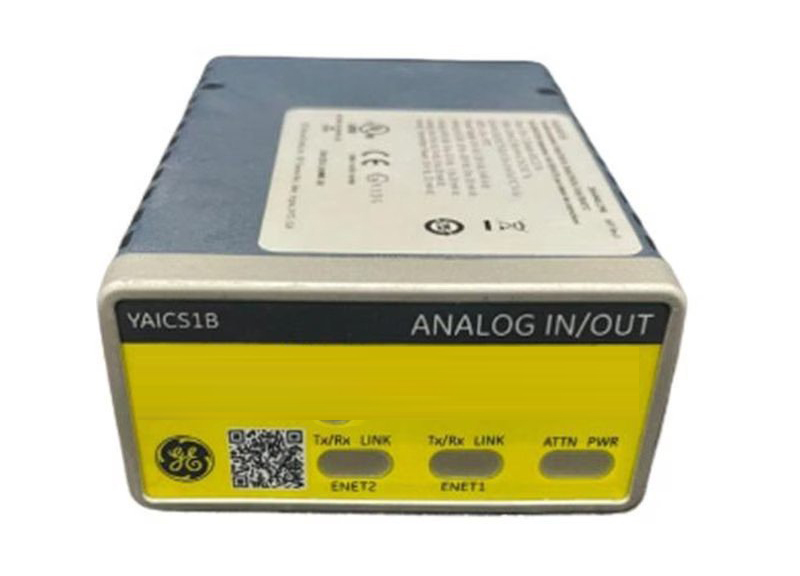

The GE Fanuc IS420YAICS1B is an analog input/output (I/O) pack designed for use in GE’s Mark VIe control systems, especially in turbine control applications. Part of the Mark VIeS series, this module ensures high safety and reliability standards. It provides the necessary interface between the control system and field devices, handling both analog inputs and outputs for accurate monitoring and control.

Technical Specifications

• Model Number: IS420YAICS1B
• Manufacturer: GE Fanuc
• Type: Analog I/O Pack
• Series: Mark VIe
• Analog Inputs: 10 total inputs
  • 2 inputs configurable as ±1 mA or 4-20 mA current inputs
  • 8 inputs configurable as ±5 V, ±10 V, or 4-20 mA current loop inputs
• Input Converter Resolution: 16-bit ADC
• Power Consumption: 5.3 W typical
• Operating Temperature Range: -40°F to 158°F (-40°C to 70°C)
• Communication Ports: Dual RJ45 Ethernet connectors
• Processor Board: BPPC
• Dimensions: 28 cm x 11.5 cm x 4.5 cm
• Weight: 0.6 kg
