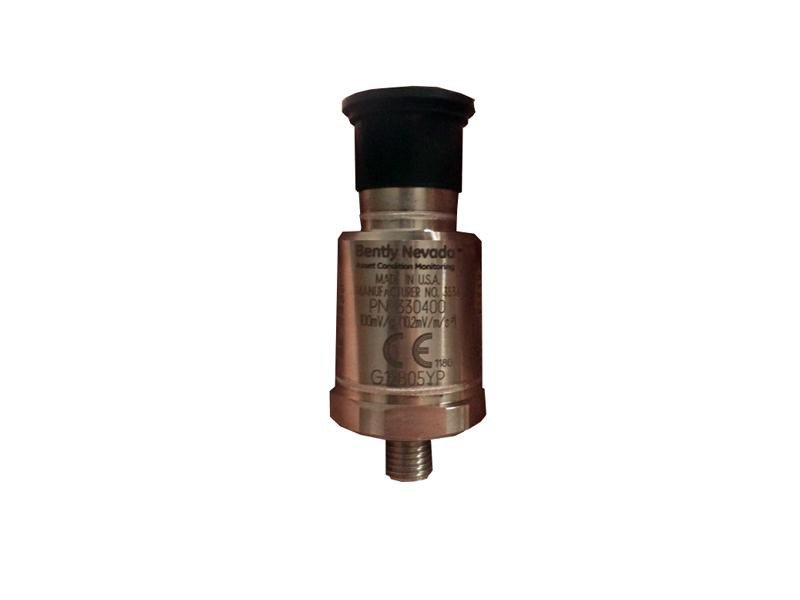

Bently Nevada 330400-02-00 Accelerometer Acceleration Transducer
Item Number:330400-02-00
Brand: Bently Nevada
Lead Time: In stock
Description:Accelerometer Acceleration Transducer
Payment: T/T
Product Description
Bently Nevada 330400-02-00 accelerometer is an acceleration measurement device for critical machinery. It is suitable for applications where housing acceleration measurement is required, such as gear mesh monitoring.
Model 330425 is similar, but has a larger amplitude range and different sensitivity. At the same time, it is critical to properly install this sensor. Improper installation will affect its performance.
Features
-
Measuring range and sensitivity:
- Amplitude range: 50 g (peak)
- Sensitivity: 100 mV/g (suitable for high sensitivity measurement)
-
Signal transmission and mechanical protection:
- The sensor must be used with the monitoring system to ensure that the rotor vibration can be effectively transmitted to the housing, otherwise it may affect the protection effect.
- Suitable for continuous monitoring, early detection of mechanical failure trends, and avoid serious damage.
-
Applicable scenarios:
- Rotor imbalance
- Gear meshing problems
- Bearing wear or damage
Specification
|
Parameter |
Value |
|
Sensitivity |
10.2 mV/m/s² (100 mV/g) ±5% |
|
Acceleration range |
490 m/s² (50 g) peak overall acceleration within the 10 Hz to 15 kHz frequency span. Vibration at frequencies above 15 kHz, especially at the transducer's resonance, will significantly decrease this range. |
|
Amplitude Linearity |
±1% to 490 m/s² (50 g) peak |
|
Broadband Noise Floor (10 Hz to 15 kHz) |
0.039 m/s² (0.004 g) rms |
|
Weight (no cable) |
99 g (3.5 oz), typical |
|
Diameter |
23 mm (0.93 in) |
|
Height |
59 mm (2.3 in), including mounting stud |
|
Connector |
3 - pin MIL - C - 5015 Receptacle 316L stainless steel |
|
Mounting Surface |
32 minch rms |
|
Mounting Torque |
4.1 N·m (3.0 ft·lb) |
|
Case Material |
316L stainless steel |
|
Weight (no cable) |
100 g (3.5 oz), typical |
|
Mounting Angle |
Any orientation |
