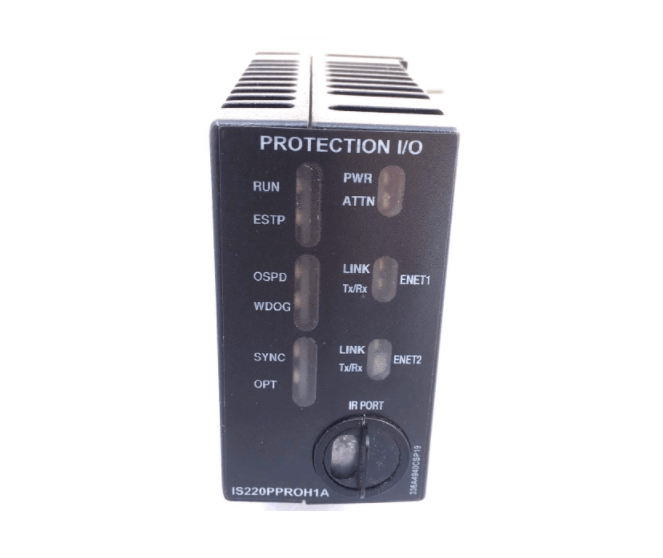

General Electric IS220PPROH1A Backup Turbine Protection I/O Pack
Item Number: IS220PPROH1A
Brand: GE
Lead Time: In stock
Description: Backup Turbine Protection I/O Pack
Payment: T/T
Product Description
GE IS220PPROH1A is a Mark Vie Standby Turbine Protection (PPRO) I/O module for independent backup overspeed protection systems on gas and steam turbines.
This module is typically used with SPRO (simplex protection) or TPROH#C (triple redundant protection) terminal blocks. It also provides generator synchronization verification and serves as an independent monitor for the main control system.
Note: Voltage signal wiring is subject to length and wire gauge limitations.
Function & Features
- Three IS220PPROH1A modules can be installed on a single SPRO terminal board (standalone protection) or TPROH#C terminal board (TMR redundant protection). They can also be installed directly on a TREA terminal board to implement a single-board TMR protection system.
- The IS220PPROH1A is equipped with two independent 10/100 Mbps Ethernet interfaces for IONet communication with the control module.
- The IS220PPROH1A features a processor, hardware reset circuitry, a watchdog timer, and a built-in sensor for temperature tracking.
- The IS220PPROH1A supports barrier or box terminal block connections.
Specifications
|
Parameter |
Details |
|
Model |
IS220PPROH1A |
| Series | Mark Vie |
|
Emergency Trip Interfaces |
TREG (Gas Turbine), TREL (Large Steam Turbine), TRES (Small/Medium Steam Turbine) |
|
Ethernet Ports |
2 × Independent 10/100 Mbps |
|
Front-Panel Indicators |
- PWR/ATTN (Power/Attention) - LINK/TxRx + ENET1 (Ethernet 1 Status) - LINK/TxRx + ENET2 (Ethernet 2 Status) - IR Debug Port |
|
Height (H) |
132 mm |
|
Width (W) |
44mm |
|
Depth (D) |
138 mm |
|
Weight |
0.5 kg |
