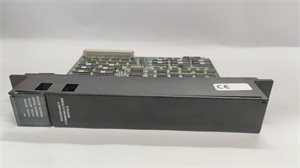

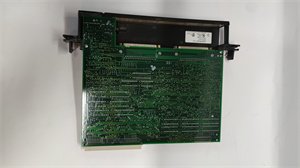

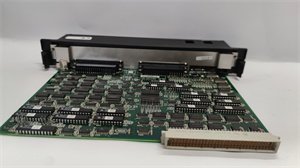

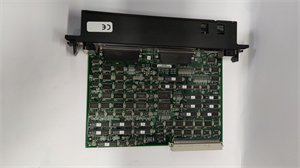

General Electric IC697CSE784C Industrial Ethernet Communication Module

The GE IC697CSE784C is a high-performance Industrial Ethernet communication module belonging to GE’s iconic Series 90-70 PLC product line, engineered to bridge Series 90-70 controllers with Ethernet-based industrial networks. As a critical connectivity component, it enables seamless data exchange between Series 90-70 CPUs (such as the IC697CPU771) and external devices—including HMIs, SCADA systems, other PLCs, and enterprise-level software—via standard TCP/IP and Modbus TCP/IP protocols.

By integrating dual 10/100 Base-TX Ethernet ports, the GE IC697CSE784C supports flexible network topologies (e.g., daisy-chain, star) and auto-negotiation for optimal data transfer speeds, making it suitable for both small-scale machine-level communication and large-scale plant-wide integration. Its design aligns with the reliability and durability of the Series 90-70 platform, ensuring consistent performance in demanding industrial environments where real-time data access is critical for operational efficiency.

Detailed Parameter Table

Core Advantages and Technical Highlights

Dual-port Ethernet flexibility: The GE IC697CSE784C features two 10/100 Base-TX RJ45 ports, eliminating the need for external switches in simple network setups. Each port supports auto-negotiation of speed (10/100 Mbps) and duplex mode (full/half), adapting to existing network infrastructure and reducing configuration complexity. This dual-port design also enables redundant network paths, enhancing system availability in mission-critical applications like power generation or chemical processing.

Multi-protocol support: Beyond standard TCP/IP, the GE IC697CSE784C natively supports Modbus TCP/IP (both client and server modes), a widely adopted industrial protocol. This compatibility allows easy integration with third-party devices—such as sensors, drives, and SCADA systems—that use Modbus, eliminating the need for protocol converters and reducing integration costs. Users can also configure custom TCP/UDP communication for specialized applications, adding versatility to the module.

Seamless Series 90-70 integration: The GE IC697CSE784C is purpose-built for Series 90-70 PLC racks, leveraging the platform’s backplane for power and data communication with the CPU. It requires no additional wiring for backplane connectivity, simplifying installation and ensuring low-latency data transfer between the module and controller (up to 1 Mbps backplane rate). This integration also means the module is managed directly via Series 90-70 programming software (e.g., GE Fanuc VersaPro), streamlining configuration and troubleshooting.

Robust diagnostic capabilities: Equipped with intuitive LED indicators (power, Ethernet link, TX/RX data, fault), the GE IC697CSE784C allows maintenance teams to quickly identify issues—such as a disconnected Ethernet cable or backplane communication failure—without specialized tools. The module also logs diagnostic data (e.g., packet loss, connection errors) that can be accessed via the CPU or programming software, enabling proactive troubleshooting and minimizing unplanned downtime.

Typical Application Scenarios

The GE IC697CSE784C is widely used in industries where reliable Ethernet communication between Series 90-70 PLCs and external systems is essential. In manufacturing, for example, it connects Series 90-70 controllers on assembly lines to HMI panels, enabling operators to monitor real-time production data (e.g., cycle time, error counts) and adjust settings remotely. Its Modbus TCP/IP support also allows integration with conveyor drives and robotic arms, ensuring synchronized operation and reducing production bottlenecks.

In water and wastewater treatment plants, the GE IC697CSE784C facilitates communication between Series 90-70 PLCs (controlling pumps, valves, and treatment processes) and SCADA systems. Plant operators can access centralized data on water flow rates, chemical levels, and tank pressures via the Ethernet network, enabling remote monitoring and control of distributed treatment units. The module’s durability (wide temperature range, vibration resistance) ensures reliable operation in harsh plant environments with fluctuating temperatures and mechanical stress.

For power distribution facilities, the GE IC697CSE784C connects Series 90-70 PLCs (managing circuit breakers, transformers, and meters) to enterprise energy management systems. Its dual Ethernet ports support redundant network paths, ensuring continuous data transmission even if one network link fails—critical for maintaining grid stability and complying with regulatory requirements for data availability. The module’s Modbus TCP/IP server mode also allows utility companies to collect energy consumption data from the PLC for billing and load-balancing purposes.

Installation Commissioning and Maintenance Instructions

Installation preparation: Before installing the GE IC697CSE784C, ensure the Series 90-70 rack is powered off and the rack is grounded to prevent electrostatic discharge (ESD). Gather tools including an anti-static wristband (to protect the module from ESD), a screwdriver (to secure the module to the rack), and a network cable (CAT5e or higher for Ethernet). Verify the rack has an available slot and that the CPU module (e.g., GE IC697CPU771) is compatible with the communication module. Check the installation environment: ensure temperatures are within 0°C to 60°C, humidity is 5%-95% non-condensing, and the area is free from excessive dust or corrosive gases.

Maintenance suggestions: For daily maintenance of the GE IC697CSE784C, inspect the LED indicators regularly—steady green for power and Ethernet link indicates normal operation, while a red fault light signals an issue (e.g., backplane error, network failure). Clean the Ethernet ports monthly with a dry, lint-free cloth to remove dust, which can cause connection issues. If the module fails to communicate, first check the network cable (replace if damaged) and verify IP settings via the programming software. For firmware updates, use GE’s official software (e.g., Proficy Machine Edition) to ensure compatibility—never update firmware during production hours. Keep a spare GE IC697CSE784C on hand for critical applications to minimize downtime if replacement is needed.
