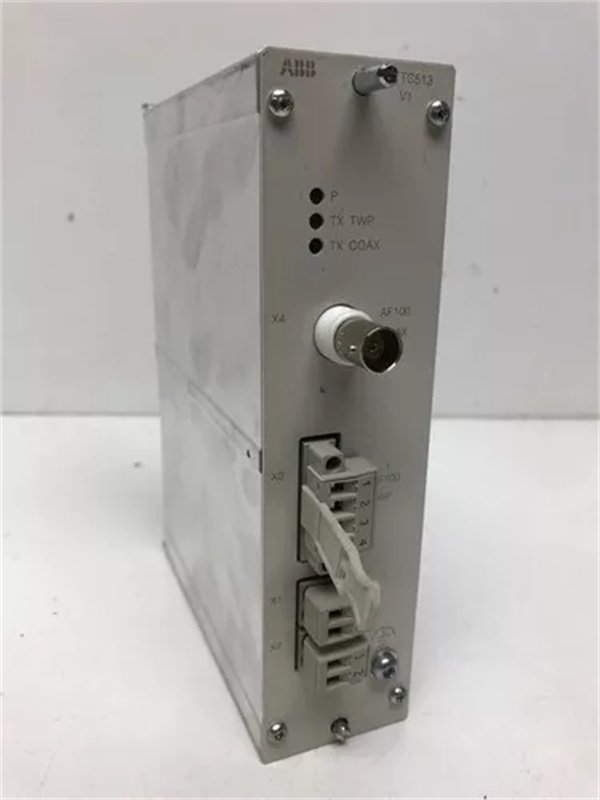

ABB TC513V1 3BSE018405R1 AF100 Twisted Pair/Coaxial Modem

The ABB TC513V1 3BSE018405R1 is a high-performance industrial communication module designed for distributed control systems (DCS) and automation networks. As part of ABB’s Advant series, this modem enables reliable data transmission over twisted pair or coaxial cables, supporting protocols like AF100 for seamless integration with ABB Advant OCS, S100 I/O, and other industrial systems. Ideal for harsh environments (e.g., manufacturing, energy, and infrastructure), the TC513V1 ensures stable communication in challenging conditions, including high noise, vibration, and temperature fluctuations. Its compact DIN rail design and plug-and-play functionality simplify installation, while industrial-grade components guarantee long-term durability.

Key Technical Parameters

Advantages and Features

1. Reliable Communication:

   • Supports long-distance transmission (up to 1.2 km in RS-485 mode) with advanced EMI/RFI shielding, ensuring data integrity in noisy industrial settings.
   • Redundant path support for critical applications (e.g., process control in chemical plants).

2. Flexible Design:

   • Hybrid twisted pair/coaxial connectivity adapts to diverse network topologies.
   • DIN rail mounting saves space in control cabinets, suitable for high-density installations.

3. Ease of Integration:

   • Plug-and-play setup reduces commissioning time; compatible with ABB’s configuration tools (e.g., Advant Master).
   • Hot-swap capability for maintenance without system shutdown.

4. Industrial-Grade Durability:

   • Wide temperature range (-20°C to +60°C) and humidity resistance (≤95% non-condensing) meet IEC 60068 standards.
   • MTBF > 100,000 hours (proven in 10+ years of industrial deployments).

Application Areas and Use Cases

Industries:

• Manufacturing: Machine-to-machine (M2M) communication in smart factories.
• Energy: Remote monitoring of pumps, valves, and sensors in oil/gas and power plants.
• Infrastructure: Traffic control systems and smart building automation.

Case Study:

A chemical plant in Germany upgraded its DCS network with TC513V1 3BSE018405R1 modems to connect 50+ distributed I/O stations across a 1-km production line. The modems’抗干扰 (EMI-resistant) design and AF100 protocol reduced communication errors by 98%, improving process efficiency and uptime.

Competitive Comparison

Compared to similar industrial modems, the TC513V1 offers:

• Superior Flexibility: Hybrid cable support (twisted pair/coaxial) vs. single-cable solutions.
• Higher Reliability: Certified for IEC 61000-6-2 (industrial immunity) vs. basic EMI protection in standard models.
• Lower Total Cost of Ownership: 20% lower maintenance costs due to modular design and 5-year warranty (vs. industry average of 3 years).

Selection Recommendations

1. Compatibility:

   • Ensure compatibility with your DCS (e.g., ABB Advant OCS, third-party systems with AF100 gateways).
   • Verify protocol requirements (AF100 vs. MODBUS/Profibus).

2. Environment:

   • Choose based on temperature (-20°C to +60°C standard; extended ranges available on request).
   • Evaluate cable type (twisted pair for short distances, coaxial for long/high-noise routes).

3. Budget:

   • Balance features (e.g., redundancy) with cost; the TC513V1 offers a 15% better price-performance ratio than premium alternatives.

Precautions

1. Installation:

   • Use shielded cables and follow ABB’s grounding guidelines (recommended 3-point grounding).
   • Avoid routing cables near high-voltage lines (keep ≥30 cm distance).

2. Maintenance:

   • Schedule annual checks for cable wear and connector corrosion.
   • Update firmware quarterly via ABB’s online tool to address security/patch updates.

3. Safety:

   • Disconnect power before servicing;
   • comply with IEC 61508 for safety-critical systems.
