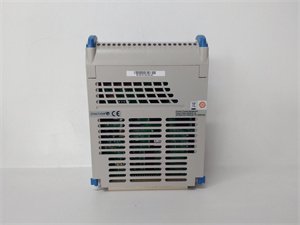

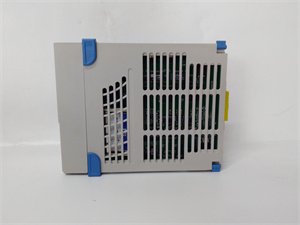

Westinghouse 5X00059G01 Analog Input Module
Manufacturer: Westinghouse (Emerson)
Product Number: 5X00059G01
Category: HART Analog Input Module
System Compatibility: Emerson Ovation control systems
Function: Converts analog signals from sensors into digital formats
Application: Industrial automation requiring HART communication capabilities
Product Description
The Westinghouse 5X00059G01 is a high-performance HART analog input module designed for seamless integration with Emerson Ovation control systems. It excels at converting analog signals from various sensors into digital formats that can be easily processed by modern control systems.
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product Model | Westinghouse 5X00059G01 |
| Manufacturer | Westinghouse |
| Product Category | Analog Input Module |
| Operating Voltage | 220V AC |
| Output Frequency | 30kHz |
| Communication Protocol | HART |
| Operating Range | 4-20mA |
| Power Consumption | Max 3W |
| Input Resistance | 400 ohms |
| Accuracy | ±0.05% Full Scale |
| Environmental Conditions | Temperature: -20°C to +70°C, Humidity: 5% to 95% RH non-condensing |
| Dimensions | 120mm × 80mm × 40mm |
| Weight | 0.58 kg |
| Certifications | CE, RoHS |
Core Advantages and Technical Highlights
High Precision and Reliability
The Westinghouse 5X00059G01 features high accuracy (±0.05% Full Scale) and a wide operating range (4-20mA), ensuring precise data acquisition and conversion.
Robust Design
This module is designed for harsh industrial environments, with an operating temperature range of -20°C to +70°C and an IP65 protection rating. Its compact and lightweight design makes it easy to install and maintain.
Versatile Communication Capabilities
The Westinghouse 5X00059G01 supports the HART communication protocol, facilitating seamless integration with existing industrial systems.
User-Friendly and Flexible
The module includes a user-friendly interface and clear documentation, making installation and maintenance straightforward.
Westinghouse 5X00062G01
Typical Application Scenarios
The Westinghouse 5X00059G01 is widely used in:
-
Manufacturing: For precise control of production lines, including robotic arms and conveyor systems.
-
Process Control: For monitoring and controlling pumps, valves, and mixers in chemical and petroleum industries.
-
Energy Management: For monitoring and control of renewable energy projects, such as wind turbines and solar power plants.
Installation, Commissioning, and Maintenance Instructions
Installation Preparation
Ensure the environment meets the specified temperature and humidity requirements. Use appropriate tools and safety equipment to secure the module in place. Connect the input signal lines and communication cables according to the manufacturer’s guidelines.
Maintenance Suggestions
Regularly inspect the module for signs of wear or damage. Use dedicated debugging software to check and update module parameters as needed. Keep the module clean and free from dust to prevent overheating and ensure efficient operation.
Service and Guarantee Commitment
The Westinghouse 5X00059G01 is backed by a comprehensive warranty and after-sales service commitment. Westinghouse guarantees the quality of the product and provides a 12-month warranty period from the date of purchase. The company offers 24/7 technical support to ensure any issues are resolved promptly.
