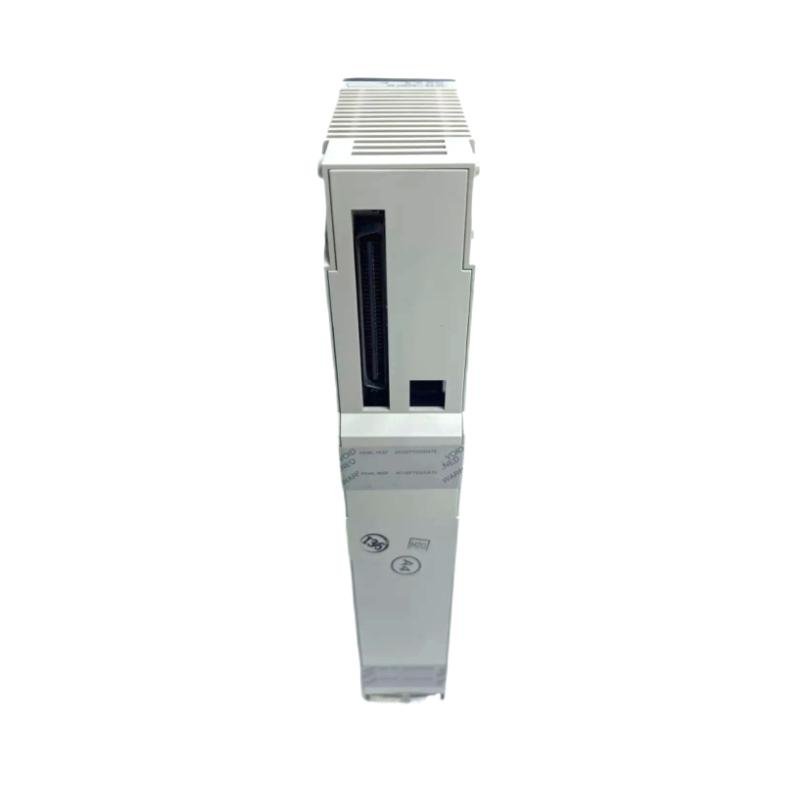

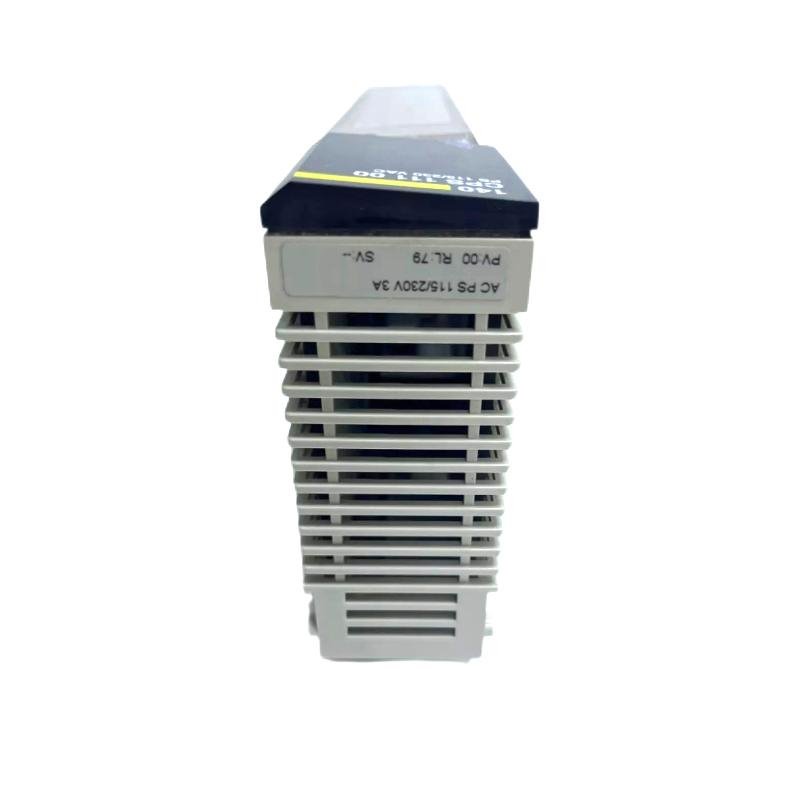

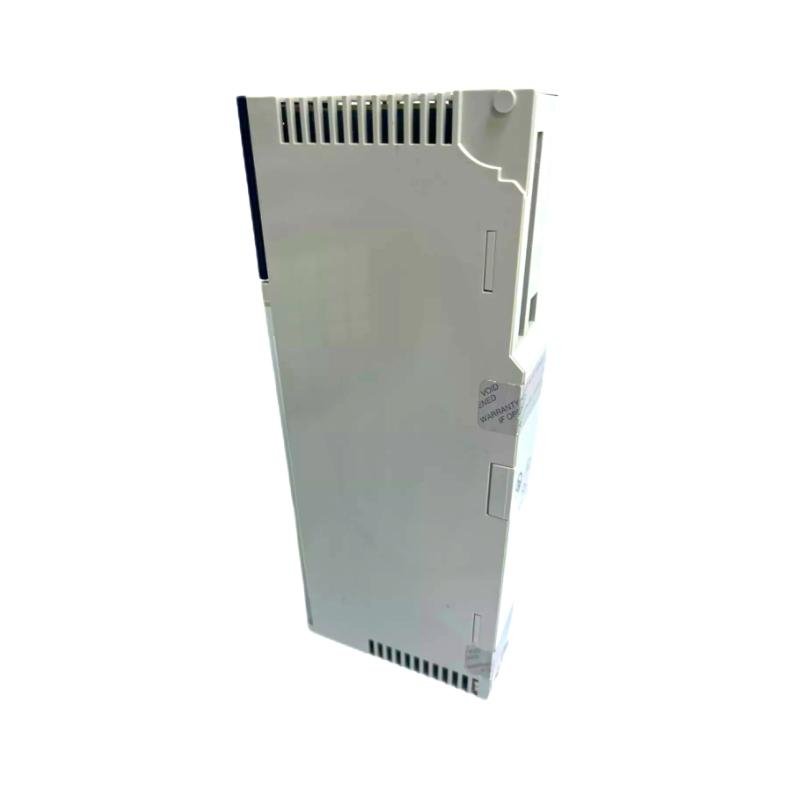

Schneider 140CPS11100 Power Supply Module
Manufacturer: Schneider Electric
Product Number: 140CPS11100
Category: Power Supply Module (Modicon Quantum PLC)
Input Voltage: 115/230 V AC, 50/60 Hz
Output Voltage: 5 V DC
Output Current: 8 A
Efficiency: >80%
Operating Temperature: 0°C to +60°C
Application: Stable DC power for PLC I/O systems, communication modules, and processors
Product Description
The Schneider 140CPS11100 is a power supply module designed for use with Modicon Quantum PLC systems. This module provides a stable, reliable source of DC power, which is essential for the operation of PLC I/O systems, communication modules, and other associated components in industrial automation environments. The 140CPS11100 ensures smooth and uninterrupted power delivery, maintaining the functionality of the entire system, even under varying load conditions.
As part of the Modicon Quantum series, the 140CPS11100 is engineered to integrate seamlessly into your Modicon Quantum PLC setup. Whether used in automation systems, process control applications, or machine control systems, this power supply module ensures that the entire system operates efficiently and reliably.
With its wide input voltage range, compact design, and built-in protection features, the 140CPS11100 is an ideal choice for high-performance industrial control systems. It is compatible with Modicon Quantum I/O racks and ensures stable power to all connected devices, minimizing the risk of power interruptions and enhancing overall system performance.
Key Features
- Wide Input Voltage Range: The 140CPS11100 supports an input voltage range of 85-264V AC, allowing it to adapt to different voltage supplies and ensuring compatibility in global installations.
- Output Voltage: It provides a regulated 24V DC output that powers Modicon Quantum I/O racks, communication modules, and other PLC components.
- High Efficiency: With its energy-efficient design, the 140CPS11100 minimizes energy consumption while providing consistent power to the system, helping to reduce operational costs.
- Built-in Protection: The module includes various protection mechanisms, such as overcurrent protection and overvoltage protection, ensuring safe and reliable operation in challenging industrial environments.
- Compact Design: The 140CPS11100 features a space-saving design, which helps optimize the available space within the control panel or rack system.
- LED Status Indicators: Equipped with LED indicators, the module offers real-time information on the power status, making it easy to monitor system performance and troubleshoot any issues.
- Global Certifications: The module complies with various global standards, including CE and UL, ensuring that it meets safety and quality requirements for use in industrial applications worldwide.
Applications
The Schneider 140CPS11100 is an essential component in various industrial applications where reliable and stable power supply is required. Some of its typical applications include:
- Industrial Automation: Powers Modicon Quantum PLC systems, I/O racks, and field devices for seamless automation of manufacturing processes, control systems, and data acquisition systems.
- Process Control: Supplies reliable DC power to process control systems, enabling real-time monitoring and adjustment of industrial processes.
- Machine Control: Provides stable power for machine control systems, ensuring that robotic arms, conveyors, and other automated machinery run smoothly.
- Energy Management: Used in energy management systems to power metering devices, control panels, and power monitoring systems.
- SCADA Systems: Ensures uninterrupted power to SCADA systems for efficient monitoring and control of industrial processes, reducing downtime and operational risks.
Technical Specifications
| Feature | Specification |
|---|---|
| Model | Schneider 140CPS11100 |
| Type | Power Supply Module for Modicon Quantum PLC |
| Input Voltage | 85-264V AC |
| Output Voltage | 24V DC (±5%) |
| Output Current | Up to 5A |
| Power Consumption | Approximately 120W |
| Efficiency | >85% |
| Protection Features | Overcurrent, Overvoltage, Short Circuit Protection |
| LED Indicators | Power ON, Fault, Output Voltage Status |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -20°C to 85°C (-4°F to 185°F) |
| Humidity | 5% to 95% RH (non-condensing) |
| Dimensions | 103.9 × 40.3 × 250 mm |
| Weight | 0.65 kg |
| Mounting Type | Mounts into Modicon Quantum I/O Rack |
| Environmental Rating | IP20 (Indoor use) |
| Certifications | CE, UL Listed |
| Operating System | Modicon Quantum system compatible |
Detailed Product Features
1. Wide Input Voltage Range
The 140CPS11100 is designed to accept a broad range of input voltages from 85V AC to 264V AC, making it highly adaptable for use in a variety of global environments. This feature ensures that the module can be used in different regions without the need for additional converters or modifications.
2. Stable 24V DC Output
The 24V DC output provided by the 140CPS11100 is essential for powering Modicon Quantum I/O racks, communication modules, and various other system components. This regulated output ensures that the system operates with a constant and reliable power source, preventing any potential system failures due to voltage fluctuations.
3. High Efficiency
With an efficiency rating of over 85%, the 140CPS11100 minimizes power losses and heat generation, making it an energy-efficient choice for your industrial control systems. Its efficient design helps reduce operational costs and contributes to a greener, more sustainable industrial environment.
4. Overcurrent and Overvoltage Protection
Safety is paramount in industrial applications, and the 140CPS11100 features built-in overcurrent and overvoltage protection. This protection mechanism helps prevent damage to the power supply module and connected devices in the event of electrical faults, ensuring safe and reliable operation.
5. Compact and Space-Saving
The 140CPS11100 is designed to fit into Modicon Quantum I/O racks without taking up excessive space. This space-saving design helps optimize your control panel layout, ensuring efficient use of available space.
6. LED Status Indicators
The 140CPS11100 is equipped with LED indicators that provide real-time feedback on the power status, fault conditions, and output voltage. These indicators make it easy to monitor the module’s health and quickly identify any issues, reducing downtime and improving system reliability.
7. Designed for Harsh Environments
Built to withstand the challenges of industrial environments, the 140CPS11100 is designed with IP20 protection for indoor use. It operates within a wide temperature range of 0°C to 60°C, making it suitable for use in factories, control rooms, and other industrial settings.
8. Easy Installation and Integration
The 140CPS11100 can be easily mounted into Modicon Quantum I/O racks, simplifying the installation process. It integrates seamlessly with other Modicon Quantum components, allowing for quick and hassle-free setup of your industrial control system.
9. Global Compliance
The 140CPS11100 is certified to meet international safety standards, including CE and UL certifications. This ensures that the module meets stringent safety, quality, and environmental requirements, making it suitable for use in industrial applications worldwide.
