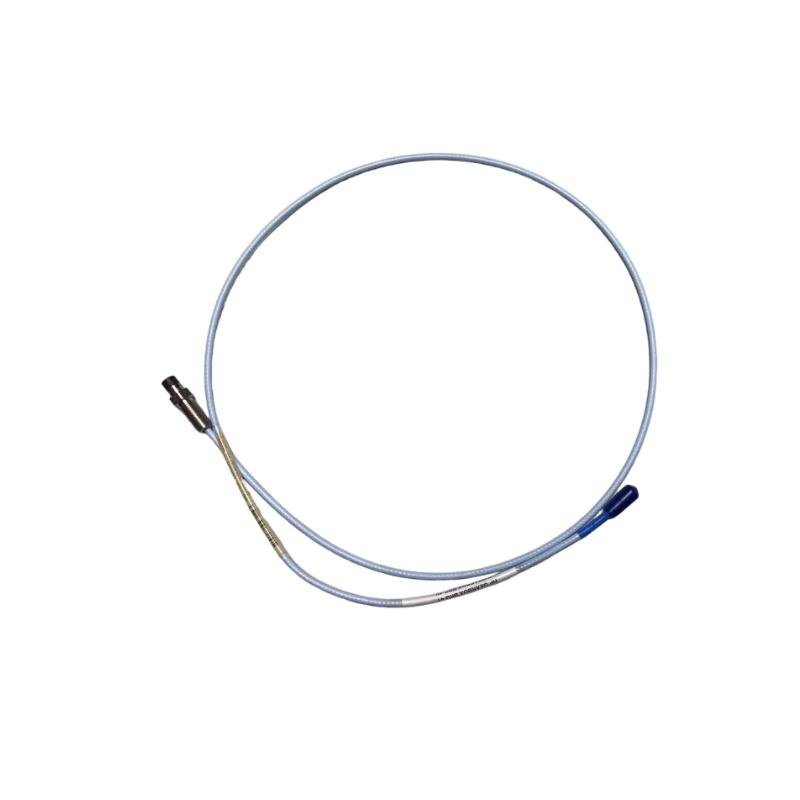

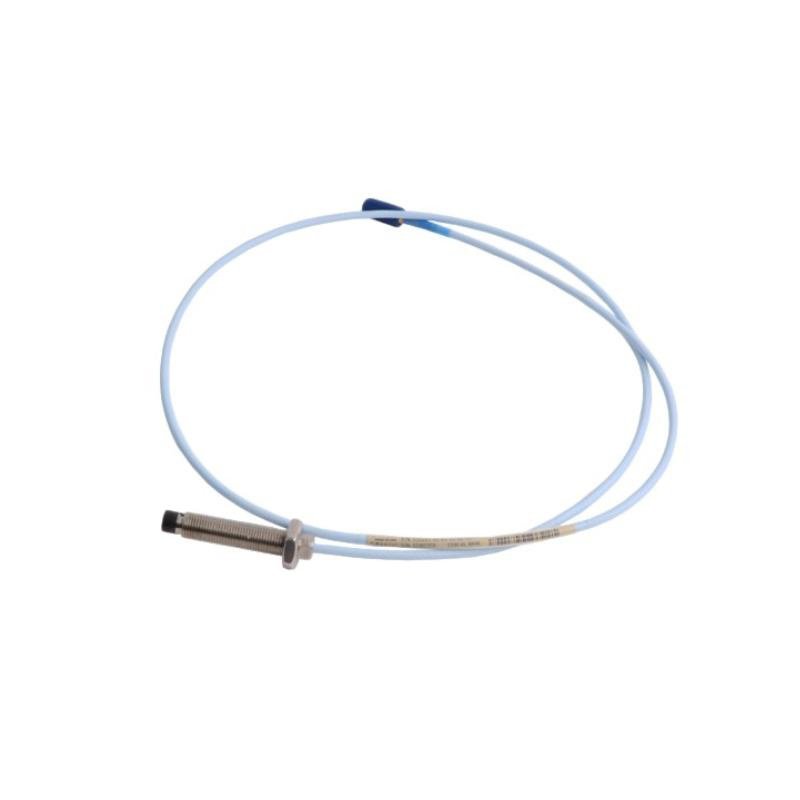

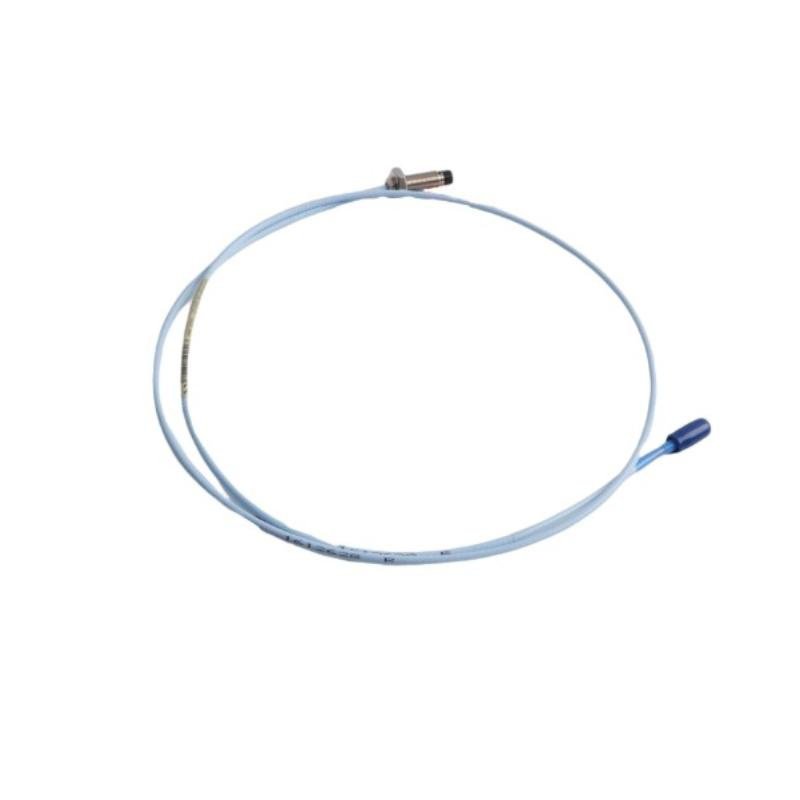

Bently Nevada 330104-00-05-20-02-CN 3300 XL 8 mm Proximity Probe
Manufacturer: Bently Nevada
Product Number: 330104-00-05-20-02-CN
Category: 3300 XL 8 mm Proximity Probe
Probe Diameter: 8 mm
Measurement Range: 2 mm (80 mils)
Output Sensitivity: 7.87 V/mm (200 mV/mil)
Application: Delivers precise shaft position and vibration measurements in demanding industrial environments
Product Description
The Bently Nevada 330104-00-05-20-02-CN is an 8 mm diameter proximity probe from the 3300 XL series, designed to deliver precise shaft position and vibration measurements. Built for demanding industrial environments, this probe ensures reliable performance and longevity when monitoring turbines, compressors, pumps, and other critical rotating equipment. Compatible with the 3300 XL monitoring system, it supports condition-based maintenance and asset protection strategies in power generation, oil and gas, petrochemical, and other sectors.
Key Features
-
Probe Diameter: 8 mm standard size
-
Nominal Sensing Gap: 20 mm distance to target
-
Rugged Stainless Steel Construction: Corrosion and wear resistant
-
High Sensitivity and Stability: Accurate and repeatable measurement signals
-
Full Compatibility: Works seamlessly with Bently Nevada 3300 XL monitoring hardware
-
Designed for Harsh Environments: Temperature and vibration resistant
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | Total Length : 2.0 meters |
| Weight | 0.646 kg |
Electrical Characteristics
| Item | Specification |
|---|---|
| Output Signal | AC variable voltage |
| Frequency Range | 2 kHz to 25 kHz |
| Excitation Voltage | Supplied by 3300 XL monitor |
| Cable Type | Shielded twisted pair, 2-wire |
| Operating Voltage | Up to 24 V AC |
Mechanical & Environmental
| Item | Specification |
|---|---|
| Operating Temperature | -40°C to +120°C |
| Vibration Resistance | Up to 50 g |
| Material | Stainless steel probe body |
| Connector Type | 2-pin connector or cable termination |
| Protection Rating | IP65 or higher depending on installation |
System Compatibility
| Item | Specification |
|---|---|
| Supported Systems | Bently Nevada 3300 XL Monitoring System |
| Application Types | Vibration and shaft position monitoring |
Industry Applications
-
Power Generation: Turbine shaft vibration and position monitoring
-
Oil & Gas: Compressor and pump condition surveillance
-
Petrochemical: Rotating equipment diagnostics and protection
-
Mining & Metals: Mill and crusher vibration monitoring
-
Pulp & Paper: Large motor and drive condition monitoring
The Bently Nevada 330104-00-05-20-02-CN 3300 XL 8 mm Proximity Probe delivers accurate and reliable vibration and position data critical for protecting valuable rotating assets and enabling predictive maintenance in harsh industrial environments.
