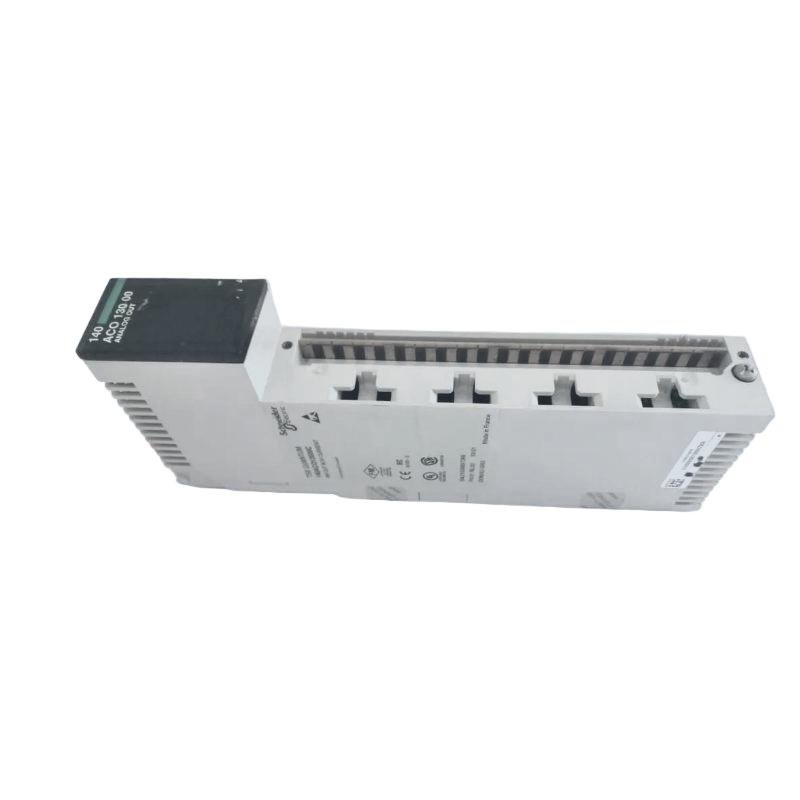

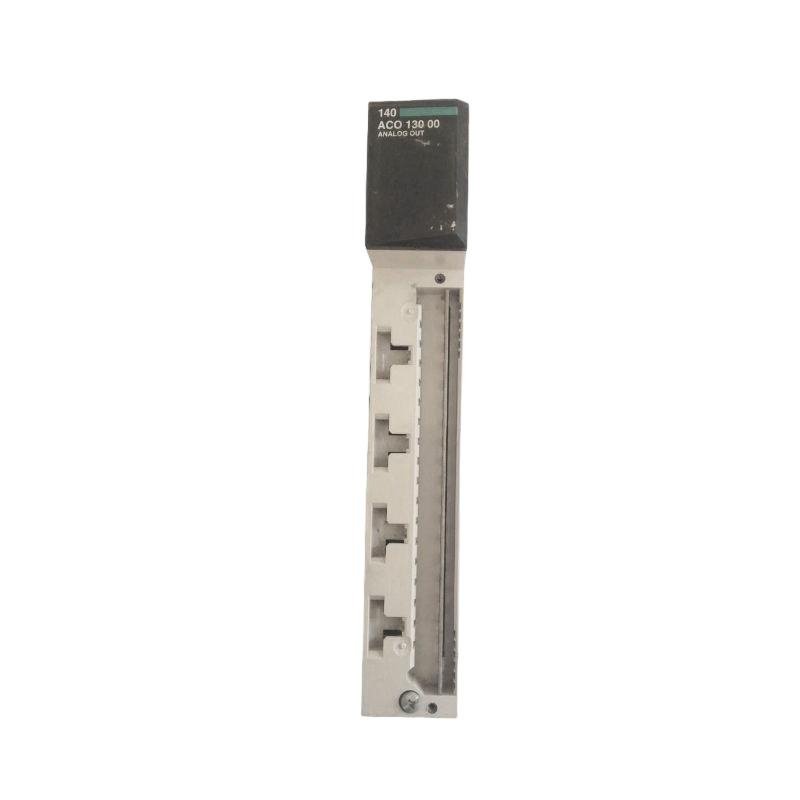

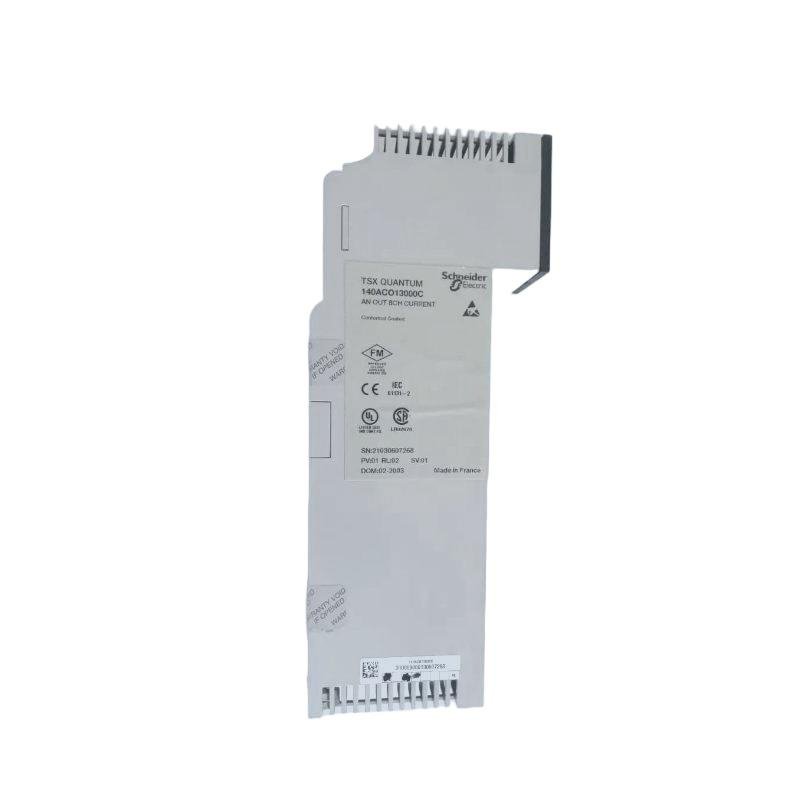

Schneider 140ACO13000C Analog Output Modules

The Schneider 140ACO13000C Analog Output Module is a high-performance module designed for Modicon® Quantum and Modicon® Premium programmable logic controller (PLC) systems. This module enables accurate and reliable analog output control, making it ideal for industrial automation applications that require fine-tuned control of physical processes. It provides a wide range of analog output capabilities, including voltage and current outputs, for controlling devices such as actuators, valves, and motors.

The 140ACO13000C module is engineered to meet the demands of complex automation systems, offering precise, real-time control of industrial equipment in applications such as process control, manufacturing, and energy management. Its robust design, high accuracy, and seamless integration with Schneider Electric’s PLCs make it a trusted solution for a variety of industries.

Key Features

• High Accuracy–Provides high-precision analog output control with excellent resolution, ensuring smooth and reliable operation of connected devices.

• Flexible Output Options–Supports both 4-20 mA current and 0-10 V voltage output options, providing flexibility in controlling a variety of field devices.

• Wide Output Range–Capable of handling a wide range of output values to suit various industrial applications, from low-power devices to high-demand equipment.

• Real-Time Performance–Ensures real-time control of industrial processes with low latency, making it suitable for time-sensitive applications.

• Built-In Diagnostics–Includes built-in diagnostic features for monitoring output health, fault detection, and easy troubleshooting.

• Seamless Integration–Fully compatible with Schneider Electric’s Modicon Quantum and Modicon Premium PLC systems, facilitating easy integration into existing control systems.

• Rugged and Reliable–Designed for industrial environments with extended operating temperature ranges and robust protection against electrical noise, ensuring long-lasting, reliable performance.

Technical Specifications

Dimensions and Weight

Electrical Characteristics

Environmental Characteristics

System Compatibility

Industry Applications

• Process Control–Used in chemical, petrochemical, and food processing industries to control parameters such as temperature, pressure, and flow through the manipulation of valves, actuators, and other field devices.

• Manufacturing Automation–Controls the position of machinery, robotics, and actuators, ensuring precise operation of automated production lines.

• Energy Management–Provides output control for power generation systems, including turbines, transformers, and other electrical devices, to maintain system stability and efficiency.

• Water and Wastewater Treatment–Monitors and controls the operation of pumps, valves, and filtration systems in water treatment plants, enabling efficient and continuous process control.

• Building Automation–Controls HVAC systems, lighting, and other building management systems by adjusting parameters such as temperature, humidity, and airflow.

• Automotive–Used for controlling robotic arms, conveyor belts, and automated assembly lines in the automotive industry.

• Oil & Gas–Controls equipment in refining, offshore platforms, and distribution systems, ensuring safe and reliable operation of critical infrastructure.

The Schneider 140ACO13000C Analog Output Module offers high-precision analog output control in industrial automation systems. With flexible output options (0-10 V and 4-20 mA), real-time performance, and seamless integration with Modicon Quantum and Modicon Premium PLCs, this module is ideal for process control, manufacturing automation, and energy management. Its built-in diagnostics, wide output range, and rugged design ensure reliable and efficient control in demanding industrial environments, making it a crucial component for high-performance automation systems.
