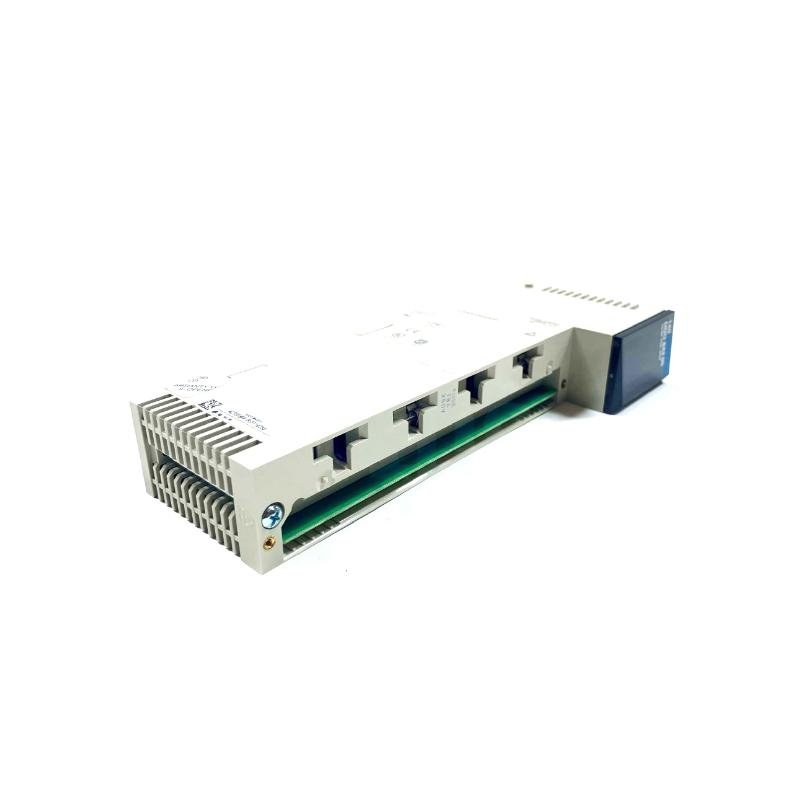

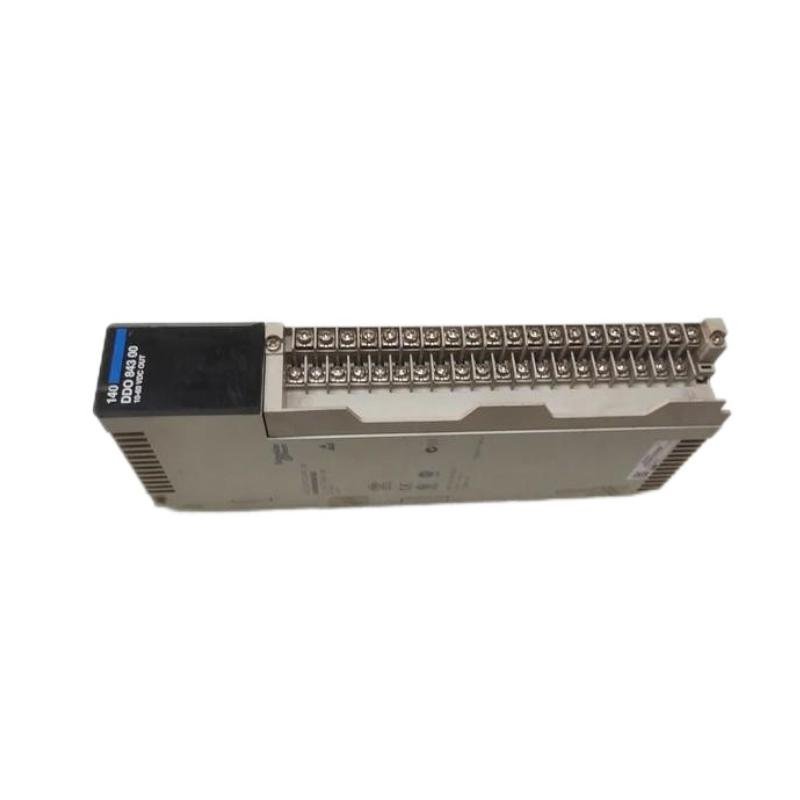

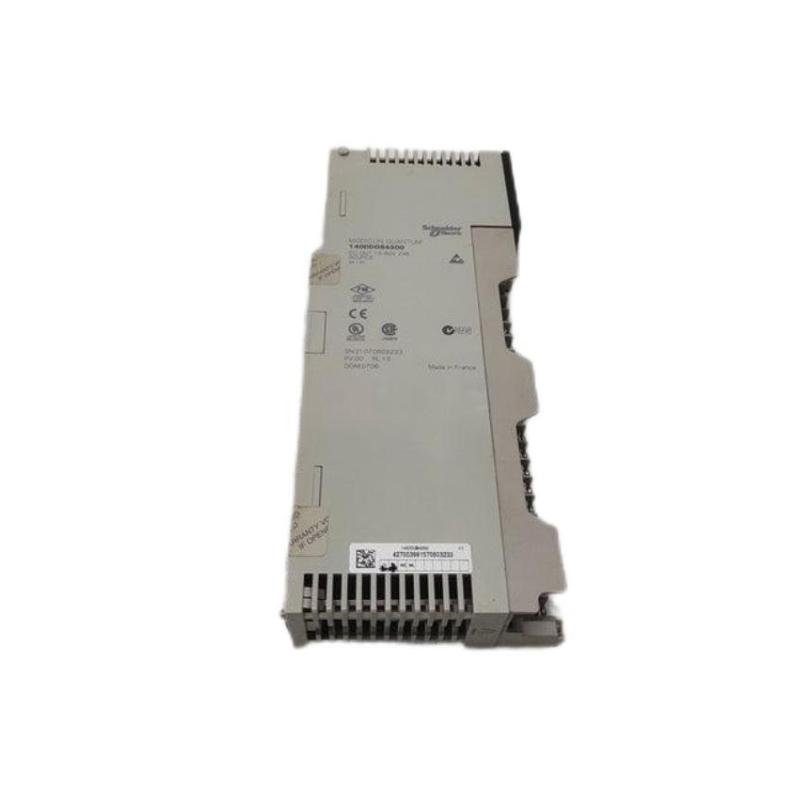

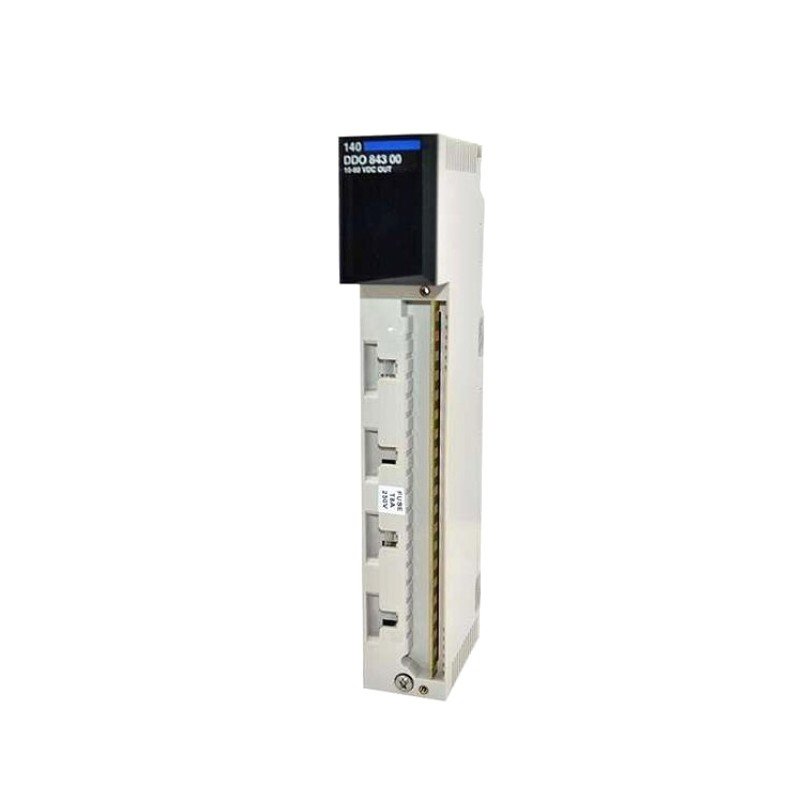

Schneider 140DDO84300 Discrete Output Modules
Manufacturer: Schneider Electric
Product Number: 140DDO84300
Category: Discrete Output Module (Modicon Quantum, Premium)
Number of Outputs: 16 (typical)
Output Type: 24 VDC digital output
System Compatibility: Modicon Quantum and Premium automation systems
Product Description
The Schneider 140DDO84300 Discrete Output Module is designed for use in Schneider Electric’s Modicon Quantum and Premium automation systems. It provides high-performance discrete output functionality, offering reliable signal transmission to control field devices in industrial automation systems. With its robust design and easy integration, the 140DDO84300 module ensures optimal control of equipment such as motors, valves, and actuators, making it ideal for diverse industrial applications requiring discrete output control.
Key Features
-
Flexible Output Configuration: Provides a range of discrete output channels for controlling field devices with high reliability.
-
High-Speed Switching: Enables rapid and precise switching of field devices, ensuring optimal system performance.
-
Compact and Modular Design: Space-efficient form factor allows easy installation in control cabinets and system scalability.
-
Wide Voltage Compatibility: Supports various voltage levels, offering flexibility for different control system designs.
-
Diagnostic Capabilities: Built-in diagnostics help monitor the health of the module and simplify troubleshooting and maintenance.
-
Reliable Performance: Designed to operate reliably in harsh industrial environments, ensuring minimal downtime.
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 103.9 × 40.3 × 250 mm |
| Weight | 0.45 kg |
Module Information
| Item | Specification |
|---|---|
| Model Number | 140DDO84300 |
| Module Type | Discrete Output Module |
| Mounting | DIN Rail Mountable |
| Output Type | Discrete Outputs (Relay/Transistor) |
Electrical and Physical Characteristics
| Item | Specification |
|---|---|
| Supply Voltage | 24 V DC |
| Power Consumption | < 1 W |
| Operating Temp | -20°C to +60°C |
| Storage Temp | -40°C to +85°C |
| Humidity | 5% to 95% RH, non-condensing |
| Protection Class | IP20 |
System Compatibility
| Item | Specification |
|---|---|
| Compatible Systems | Modicon Quantum, Premium |
| Communication Interface | Modbus, Ethernet (depending on configuration) |
| Software Configuration | Unity Pro, Concept, SoMachine |
Industry Applications
-
Automated Manufacturing: Controls outputs to motors, relays, and other field devices for precise automation in production lines.
-
Building Automation: Used to control actuators, lighting systems, and security devices in commercial buildings.
-
Energy Management: Facilitates the operation of energy meters, breakers, and other control systems in energy management systems.
-
Oil & Gas: Controls valves, pumps, and other equipment in process control applications in the oil and gas industry.
-
Water Treatment: Used for controlling pumps, solenoid valves, and other discrete devices in water and wastewater treatment plants.
The Schneider 140DDO84300 Discrete Output Module is an essential component for controlling discrete outputs in industrial automation systems. Its high-speed switching, flexibility, and reliable performance make it ideal for use in a wide range of applications, from manufacturing to energy management and water treatment.
