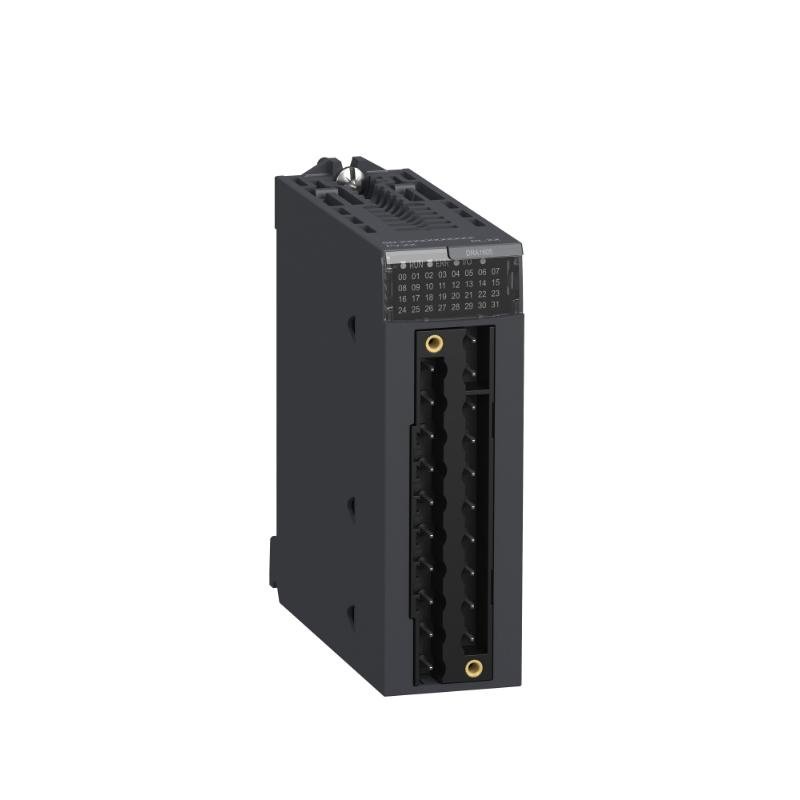

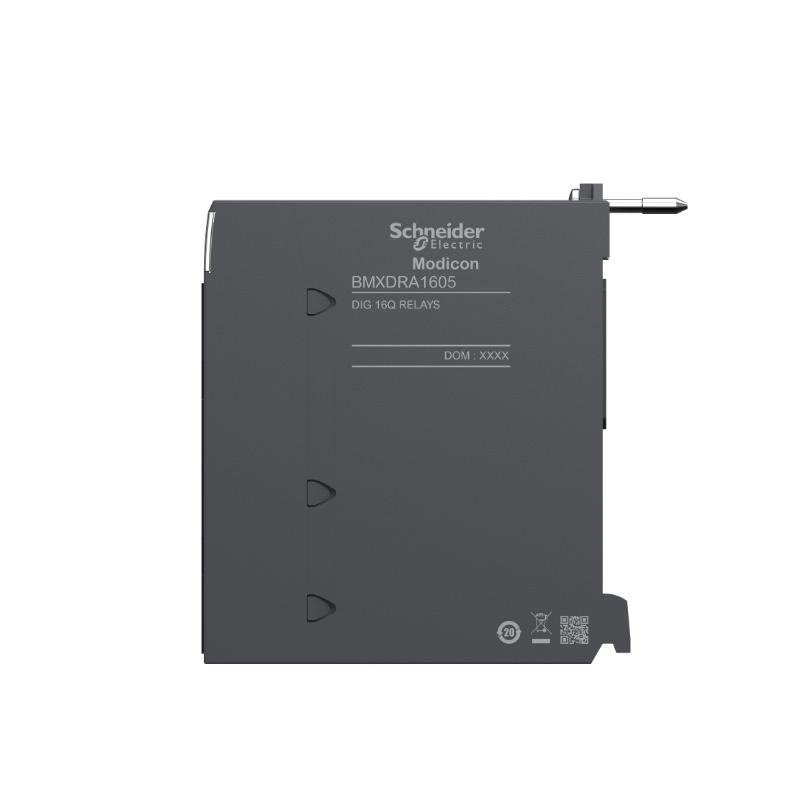

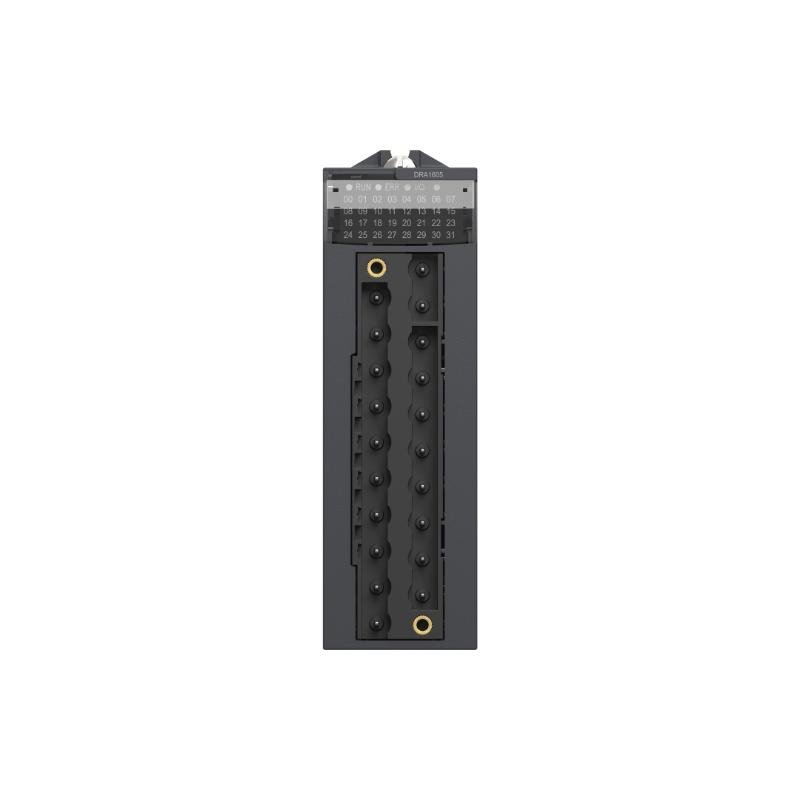

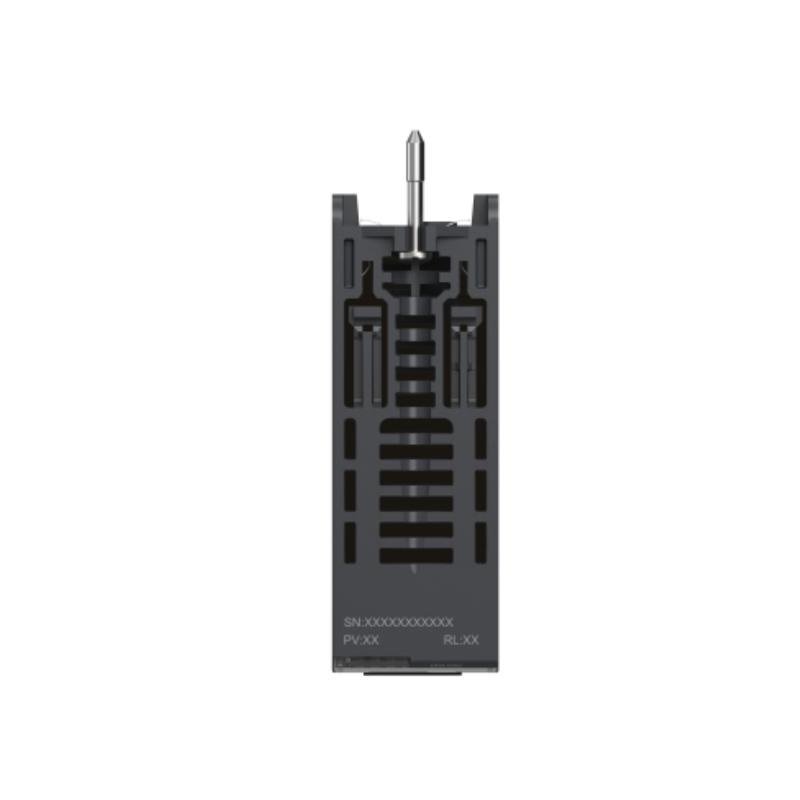

Schneider BMXDRA1605 Discrete Output Modules
Manufacturer: Schneider Electric
Product Number: BMXDRA1605
Category: Discrete Output Module (Modicon X80 series)
Number of Outputs: 16 (typical)
Output Type: Relay outputs
Contact Rating: 2A @ 230VAC
System Compatibility: Modicon X80 series
Product Description
The Schneider BMXDRA1605 Discrete Output Modules are designed for high-performance control of discrete output signals in industrial automation systems. Part of the Modicon X80 series, these modules offer reliable, fast switching for a wide range of applications. The BMXDRA1605 provides 16 digital outputs in a compact form factor, ensuring smooth and efficient operation of machinery and equipment. Its rugged design and seamless integration with Modicon PLC systems make it a versatile solution for controlling actuators, relays, and other field devices in industrial environments.
Key Features
-
16 Discrete Outputs–Provides 16 digital output channels, ideal for controlling various devices like relays, valves, and motors
-
Fast Switching–Ensures fast and accurate switching for precise control over industrial processes
-
Robust Design–Built to endure harsh environmental conditions such as high temperatures, vibrations, and electromagnetic interference (EMI)
-
Modular Integration–Easily integrates into larger automation systems, expanding control capabilities as needed
-
Efficient Energy Use–Low power consumption, supporting energy-efficient industrial operations
-
Flexible Configuration–Allows for easy setup and configuration within the Modicon PLC system, reducing installation time and effort
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 160 x 100 x 35 mm |
| Weight | 0.15 kg |
Electrical Characteristics
| Item | Specification |
|---|---|
| Voltage Rating | 24 V DC |
| Current Rating | 100 mA per output |
| Power Consumption | 3 W |
| Output Voltage | 24 V DC |
Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5%–95% RH (non-condensing) |
| Enclosure Rating | IP20 |
System Compatibility
| Item | Specification |
|---|---|
| Platform | Compatible with Modicon PLC systems |
| Communication Protocol | Modbus TCP/IP, Modbus RTU |
Industry Applications
-
Industrial Automation–Ideal for controlling output devices such as solenoids, actuators, and relays in manufacturing and processing lines
-
Energy Management–Used in power generation and distribution systems for controlling discrete outputs in real-time
-
Building Automation–Suitable for controlling devices such as lighting systems, HVAC units, and security systems
-
Water and Wastewater–Provides reliable output control for process equipment in water treatment and wastewater systems
-
Transportation–Assists in managing outputs for transportation systems, including signaling and control devices
The Schneider BMXDRA1605 Discrete Output Modules offer a reliable and efficient solution for controlling a wide range of output devices in industrial automation systems. Their high durability, fast switching, and ease of integration make them an essential part of any industrial control system.
