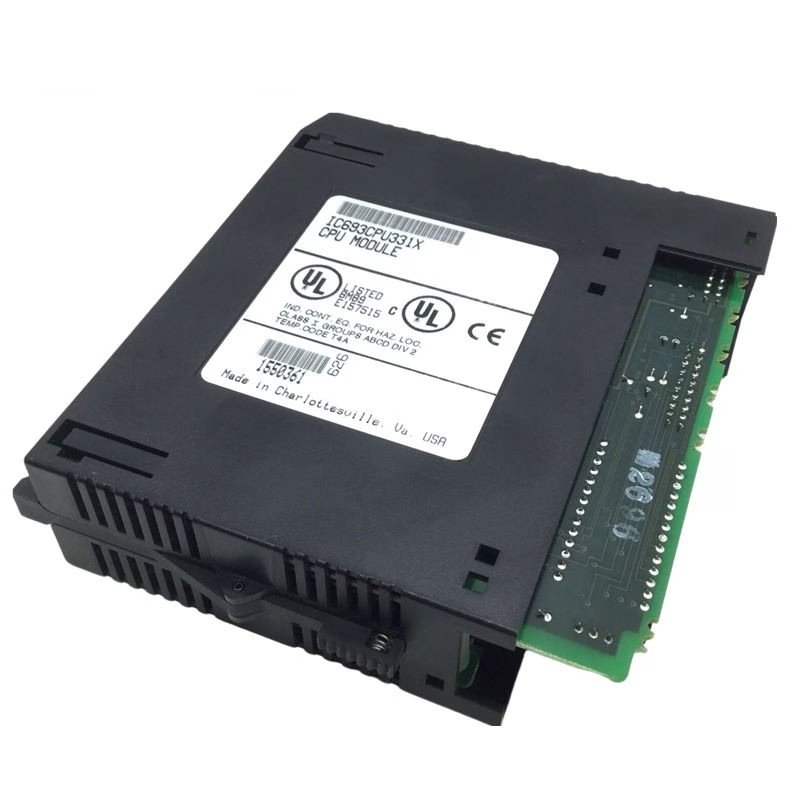

The GE Fanuc IC693CPU331X is a single-slot Central Processing Unit (CPU) designed for use in the GE Fanuc Series 90-30 PLC system. It provides the processing power necessary to execute control programs and manage I/O devices efficiently. This high-performance CPU module is designed for a wide range of industrial automation applications, ensuring reliable performance and seamless integration with other system components.

Technical Specifications

• Product Type: Single Slot CPU Module
• Manufacturer: GE Fanuc
• Application: GE Series 90-30 PLC systems
• Processor: 80188, 10 MHz
• Operating Voltage: +5V DC
• Load Requirement: 350 mA
• Memory: 16K bytes user program memory
• Scan Rate: 0.4 ms per 1K of logic (Boolean contacts)
• Discrete Input Points: 512
• Discrete Output Points: 512
• Discrete Global Memory: 1280 bits
• Internal Coils: 1024 bits
• Output Temporary Coils: 256 bits
• System Status References: 128 bits
• Register Memory: 2048 words
• Analog Inputs: 128 words
• Analog Outputs: 64 words
• Timers/Counters: 680
