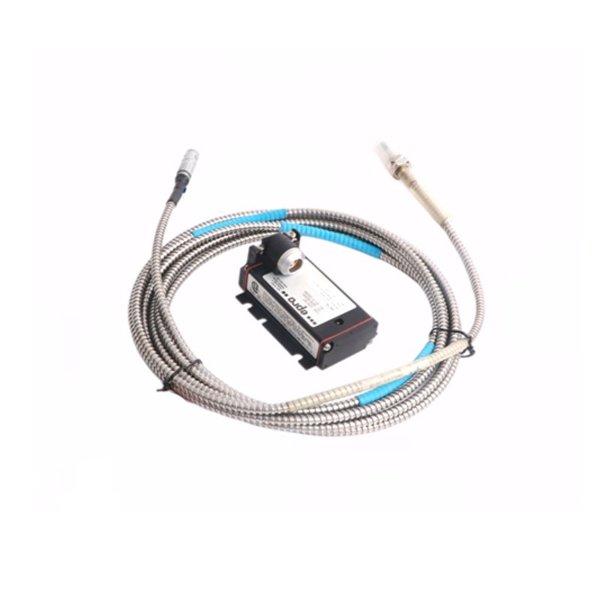

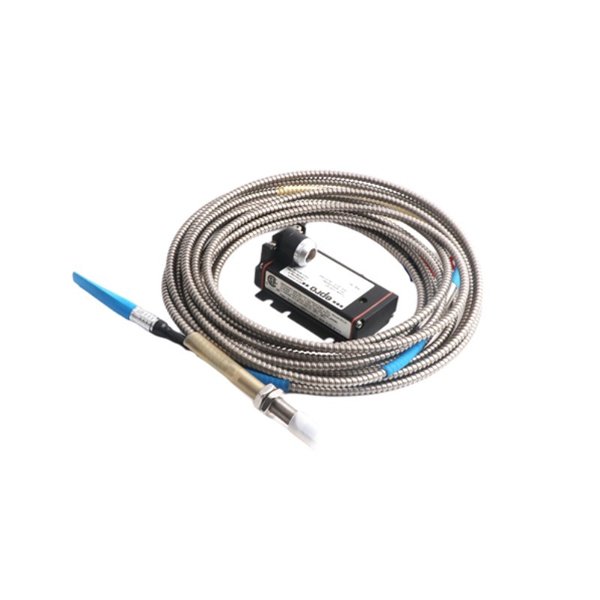

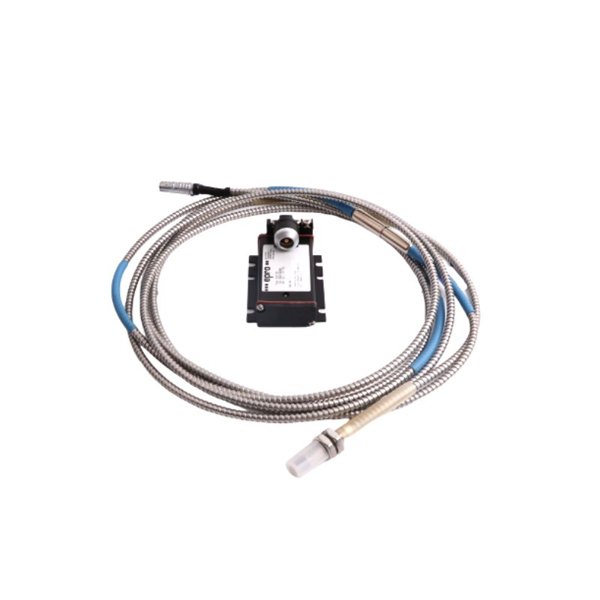

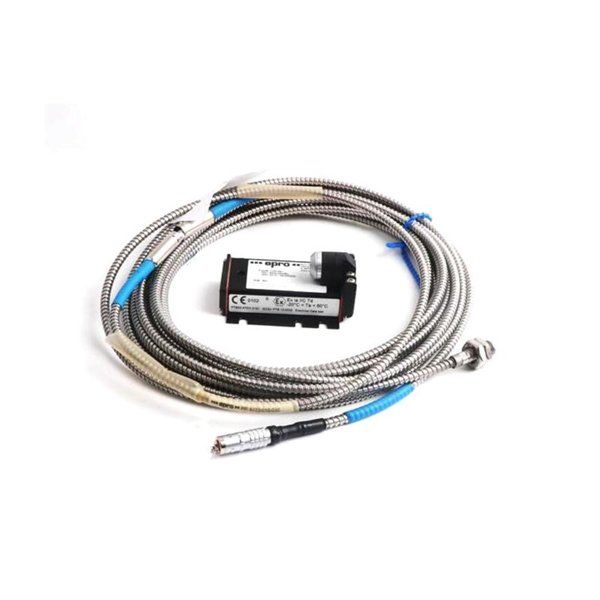

The Epro PR6424/119-000 16 mm Eddy Current Sensor is a high-performance sensor designed for precise non-contact measurement of displacement, position, and vibration in industrial applications. Utilizing eddy current technology, the PR6424/119-000 sensor operates with high accuracy and reliability, offering superior resolution and linearity over a wide range of measurement applications. This sensor is ideal for applications where traditional contact-based measurement systems would be difficult or inefficient.

The PR6424/119-000 sensor is built for use in harsh industrial environments, where it can withstand vibrations, temperature fluctuations, and electrical interference. Its compact design, with a 16 mm diameter sensor head, ensures it can be used in applications with limited space or where a small footprint is required. The sensor is often used in critical monitoring applications such as machine condition monitoring, process control, and machinery diagnostics.

Technical Specifications

The following table outlines the key technical specifications of the Epro PR6424/119-000 16 mm Eddy Current Sensor:

Product Applications

The Epro PR6424/119-000 16 mm Eddy Current Sensor is widely used in various industrial applications requiring precise, non-contact measurement. Some of its common uses include:

• Machine Condition Monitoring: Used for vibration and displacement monitoring in rotating machinery, such as motors, turbines, and pumps.

• Process Control: Employed in measuring critical parameters in automated systems where non-contact measurement is essential.

• Machinery Diagnostics: Used in diagnostics for detecting potential misalignments, wear, and other issues in mechanical systems.

• Position Measurement: Ideal for measuring the position of moving parts in automated machinery, including robotic arms and conveyors.

• Turbine Monitoring: Used for continuous measurement in turbines to detect displacement and avoid mechanical failure.

• Automotive Industry: Ideal for measuring critical parameters such as wheel alignment, position of moving parts, and vibration in automotive assembly lines.

• Aerospace: Used for precise measurements in aircraft components, including detecting shifts or displacements in parts under load.

Product Advantages

• High Precision: The PR6424/119-000 offers high accuracy with a typical deviation of ±0.001 mm, making it suitable for high-precision applications.

• Non-Contact Measurement: The sensor measures displacement and position without physical contact, eliminating wear and tear, and improving system longevity.

• Durable Design: Built with industrial-grade materials, it is designed to operate reliably in harsh environments with temperature variations and mechanical vibrations.

• Compact and Lightweight: With a sensor head diameter of just 16 mm and a weight of only 0.2 kg, it can fit into tight spaces, making it ideal for compact systems.

• Versatile Output Options: The sensor supports both analog (4-20 mA) and digital (0-10 V) output, providing flexibility depending on system requirements.

• Fast Response Time: With a response time of less than 1 ms, it can monitor rapidly changing processes and provide real-time feedback.

• IP67 Protection: The sensor is rated IP67, ensuring it is dust-tight and can withstand temporary immersion in water, making it ideal for challenging environments.

FAQ

1. What is the measurement principle used by the Epro PR6424/119-000 sensor?

The Epro PR6424/119-000 uses the eddy current principle for non-contact displacement and position measurement.

2. What is the output type of the Epro PR6424/119-000 sensor?

The output type of the sensor can be analog (4-20 mA) or digital (0-10 V), depending on configuration.

3. What is the accuracy of the Epro PR6424/119-000 sensor?

The typical accuracy of the sensor is ±0.001 mm, providing high precision in measurements.

4. What is the operating distance range for this sensor?

The sensor can operate at distances from 1 mm to 8 mm, depending on the specific configuration.

5. What is the supply voltage required for the Epro PR6424/119-000 sensor?

The supply voltage for the sensor is 10 to 30 VDC.

6. How fast is the response time of the sensor?

The response time of the sensor is less than 1 ms, making it suitable for real-time monitoring of high-speed systems.

7. Can the sensor be used in outdoor environments?

Yes, the sensor has an IP67 protection rating, making it dust-tight and capable of withstanding temporary immersion in water.

8. What is the storage temperature range for the Epro PR6424/119-000?

The storage temperature range for the sensor is from -40°C to 100°C.

9. Is the Epro PR6424/119-000 sensor suitable for use in high-vibration environments?

Yes, the sensor is designed for use in environments with mechanical vibrations, making it ideal for applications like machine condition monitoring.

10. Can the sensor be customized for different output configurations?

Yes, the sensor offers customizable output options, allowing for flexibility in integration with different systems.
