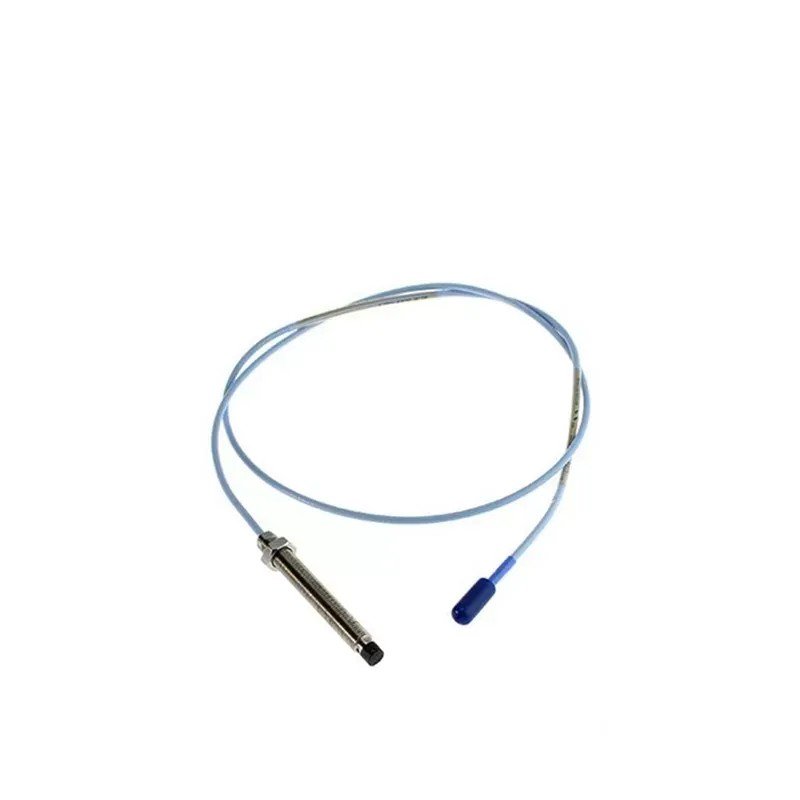

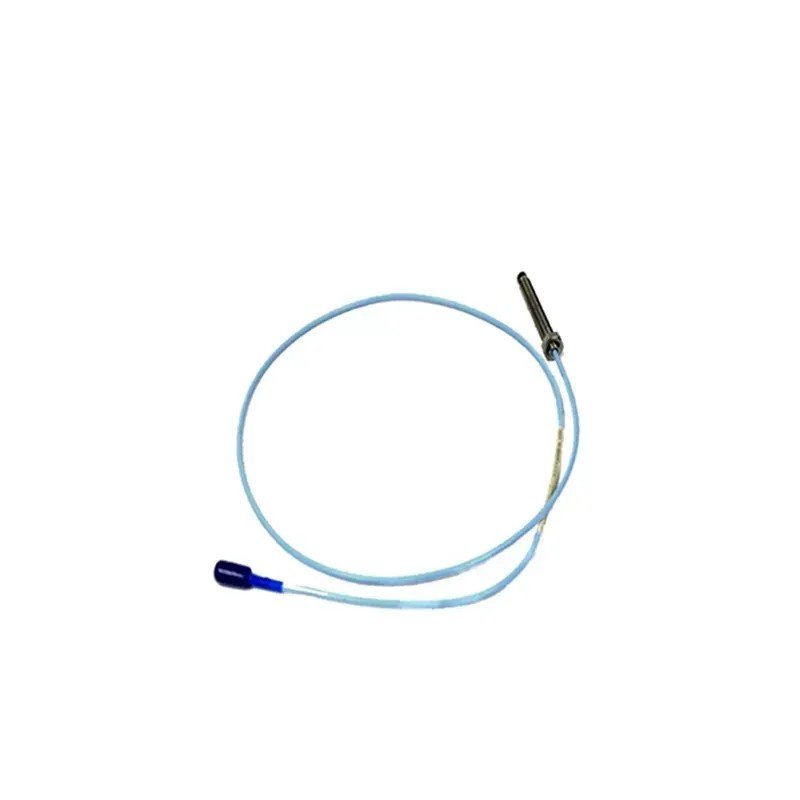

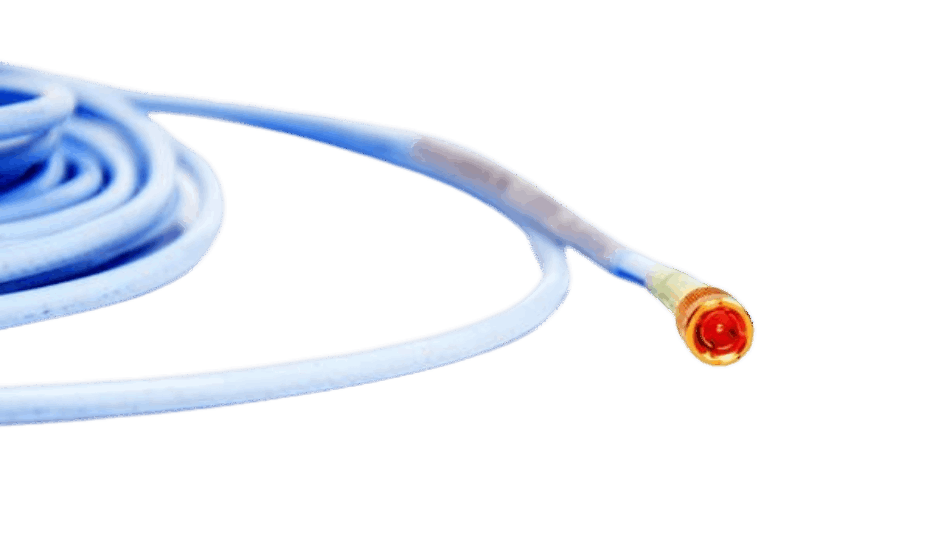

Bently Nevada 330854-080-24-CN Extension Cable
Item Number:330854-080-24-CN
Brand:Bently Nevada
Price:$1
Lead Time: In stock
Description:Extension Cable
Payment: T/T
Product Description
Bently Nevada 330854-080-24-CN Extension Cable is an extension cable for the 3300 XL 25mm eddy current sensor system. It is designed for 25mm eddy current probes. The system is suitable for measuring the expansion difference (DE) caused by the different expansion rates of the rotor and stator (casing) of medium to large steam turbine generators, such as steam turbine and gas turbine DE end shaft vibration/displacement monitoring.
Function & Features
- Sealed and moisture-proof: Double seal (front + rear) + FluidLoc® cable completely prevents moisture from entering the probe tip.
- Protective accessories: Standard connector cover + disposable installation tool to prevent contamination.
- Supports a variety of probe housing types:
- Imperial thread: 1¼-12, 1½-12
- Metric thread: M30x2, M39x1.5
- Smooth housing: 1.06/1.50 inch diameter (side exit/rear exit).
Specifications
|
Specification Category |
Details |
|
Model Number |
330854-080-24-CN |
|
Probe Diameter |
25 mm |
|
Cable Length |
8.0 meters (26.2 feet) - Code "080" |
|
Agency Approvals |
None (Code "00") |
|
Cable Construction |
75-ohm triaxial with PFA (perfluoroalkoxyethylene) insulation |
|
Capacitance |
69.9 pF/m (21.3 pF/ft) typical |
