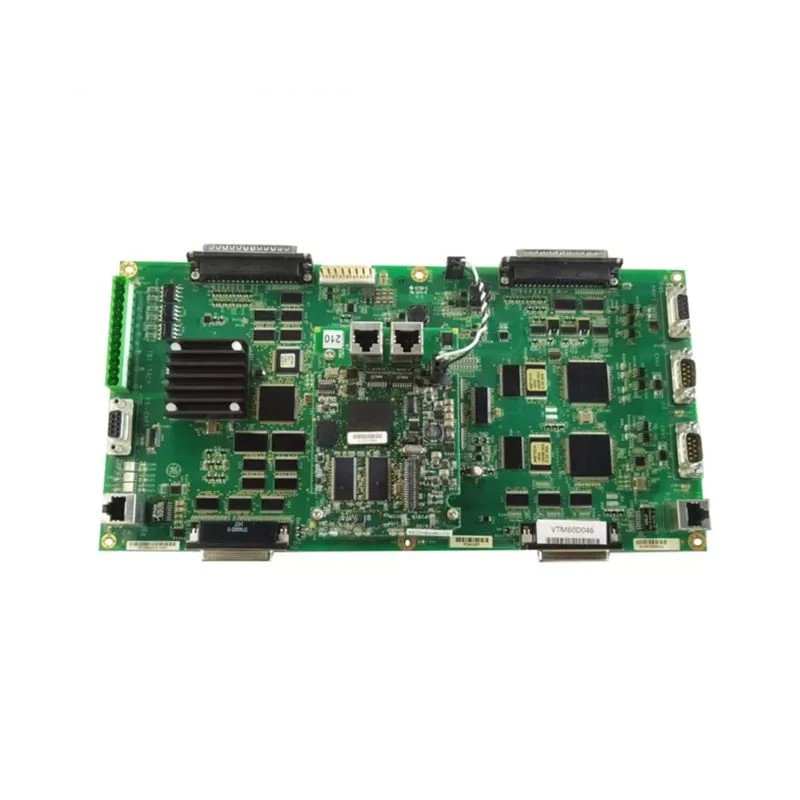

The GE IS210MACCH1AKH is a crucial component of the Speedtronic Mark VI system. This microprocessor-based board is used in distributed control systems for steam and gas turbines.

Functions of IS210MACCH1AKH

• Input/Output (I/O):
  • The board features multiple I/O channels.
  • It connects to sensors and actuators.
  • It collects data from sensors like temperature and pressure.
  • It sends control signals to actuators such as valves and motors.
• Data Processing:
  • The onboard microprocessor handles data from I/O channels.
  • It performs functions such as filtering and scaling.
  • It can generate alarms based on processed data.
• Communication:
  • The board includes a communication interface.
  • It facilitates data exchange with other Speedtronic Mark VI boards.
  • It handles control commands and status reports.

Technical Specifications

• Processor: Motorola 68020
• Clock Speed: 14 MHz
• Memory:
  • 512 KB RAM
  • 256 KB ROM
• I/O Channels:
  • 32 analog inputs
  • 32 analog outputs
  • 64 digital inputs
  • 64 digital outputs
• Communication Interface: RS-232
