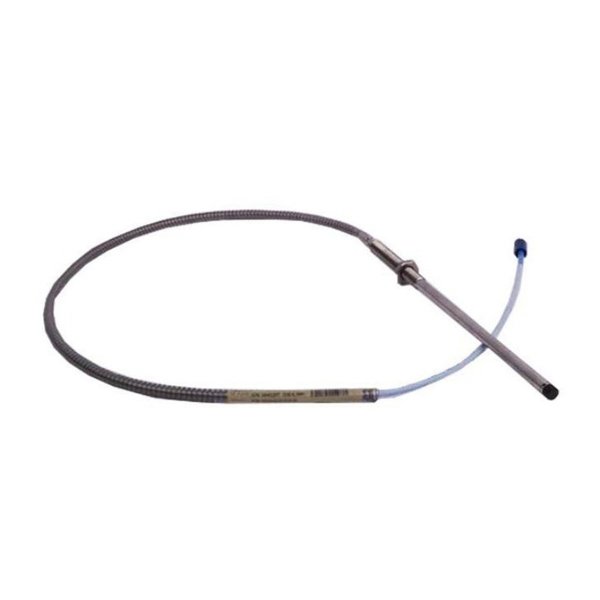

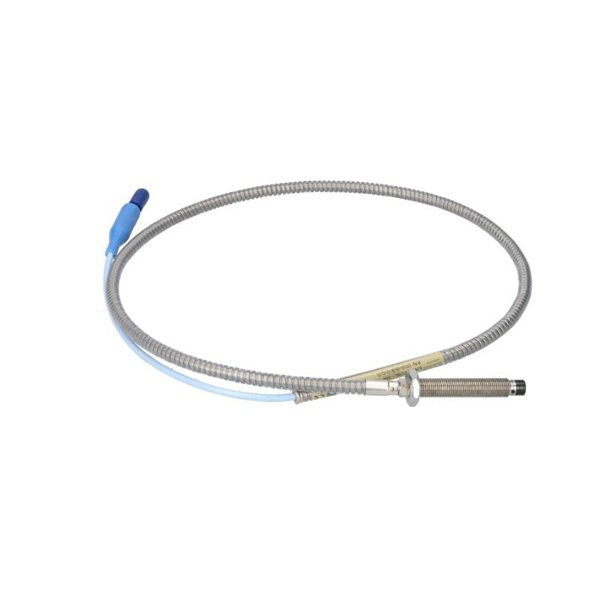

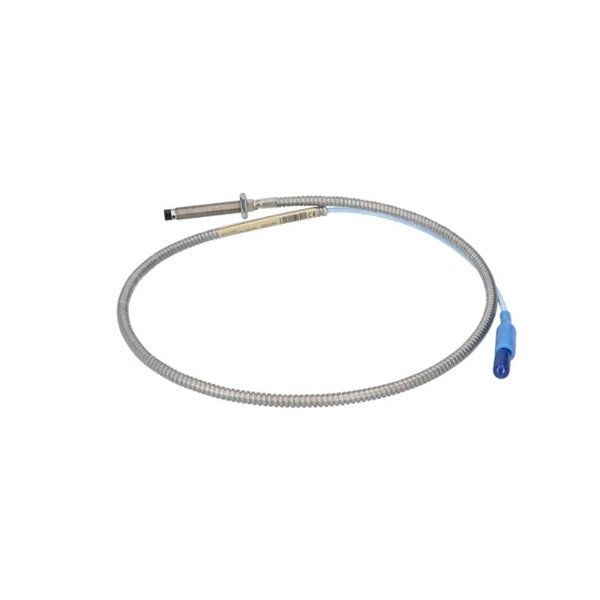

Bently Nevada 330104-00-08-10-02 3300 XL 8 mm Proximity Probe
Manufacturer:Bently Nevada
Product Number:330104-00-08-10-02
Product Type:3300 XL 8 mm Proximity Probe
Origin:USA
Total Length:1.0 meter
Weight:0.323 kg
Views:72
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 330104-00-08-10-02 is part of the 3300 XL 8 mm series, designed for precise non-contact vibration and position monitoring in rotating machinery. It features an armored M10x1 thread probe with a total length of 1.0 meter and is fully compatible with the 3300 XL Proximitor Sensor and extension cables.
Technical Specifications
| Parameter | Value |
|---|---|
| Model Number | 330104-00-08-10-02 |
| Probe Type | Armored, M10x1 thread |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Tip Diameter | 8 mm |
| Cable Type | 75Ω triaxial, FEP-insulated |
| Connector Type | Miniature coaxial ClickLoc |
| Operating Temperature | -52°C to +177°C |
| Recommended Gap | 1.27 mm (50 mils) |
| Sensitivity | 7.87 V/mm (200 mV/mil) ±5% |
| Case Material | Stainless Steel (AISI 303 or 304) |
| Minimum Cable Bend Radius | 25.4 mm (1.0 inch) |
| Compliance | API 670, CE, RoHS, FCC Part 15, SIL2/SIL3 |
Applications
-
Vibration monitoring of fluid-film bearing machinery
-
Shaft position and radial displacement measurement
-
Speed and phase reference (Keyphasor) detection
-
Turbine and compressor condition monitoring
-
Critical machinery overspeed protection (with guidelines)
Advantages
-
No calibration needed when replacing components
-
Fully interchangeable probe, cable, and sensor
-
Withstands harsh environments with armored design
-
FluidLoc option prevents oil migration
-
RFI/EMI resistant; suitable for use in fiberglass enclosures
-
API 670 compliant for linearity and mechanical specs
-
ClickLoc connectors for secure and tool-free connection
Frequently Asked Questions (FAQ)
Q1: What is the probe’s measuring range?
A1: 0.25 mm to 2.3 mm (10 to 90 mils), linear and accurate.
Q2: Does this model meet API 670?
A2: Yes, it complies with the mechanical and performance requirements of API 670.
Q3: Is recalibration needed during component replacement?
A3: No, it supports full interchangeability without recalibration.
Q4: Can the probe be used in hazardous areas?
A4: Yes, it’s certified for Class I, Zone 0 and Zone 2 applications.
Q5: What is the output sensitivity?
A5: 7.87 V/mm (200 mV/mil) ±5%.
Q6: What size shaft is recommended for use?
A6: Minimum diameter 50.8 mm; recommended 76.2 mm.
Q7: What is the total length and weight of this model?
A7: 1.0 meter; approximately 0.323 kg.
Q8: What connector does it use?
A8: Gold-plated ClickLoc connector, finger-tight with locking click.
Q9: Can this probe operate at high temperatures?
A9: Yes, up to +177°C standard; up to +218°C with ETR version.
Q10: Is it resistant to EMI/RFI interference?
A10: Yes, designed with excellent immunity without special shielding.
