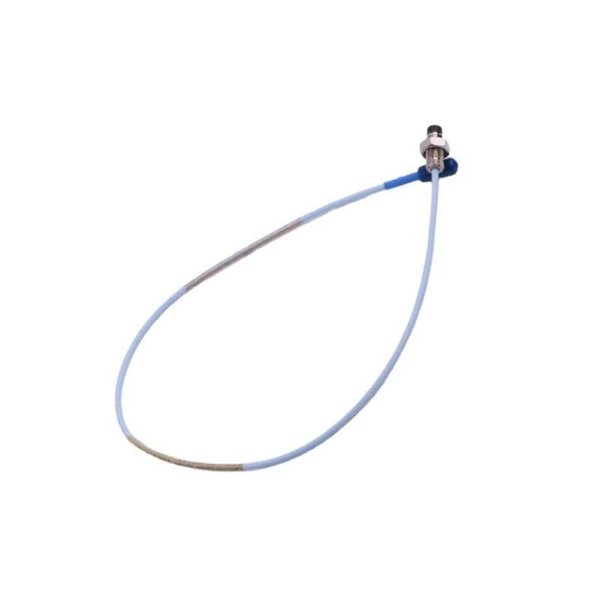

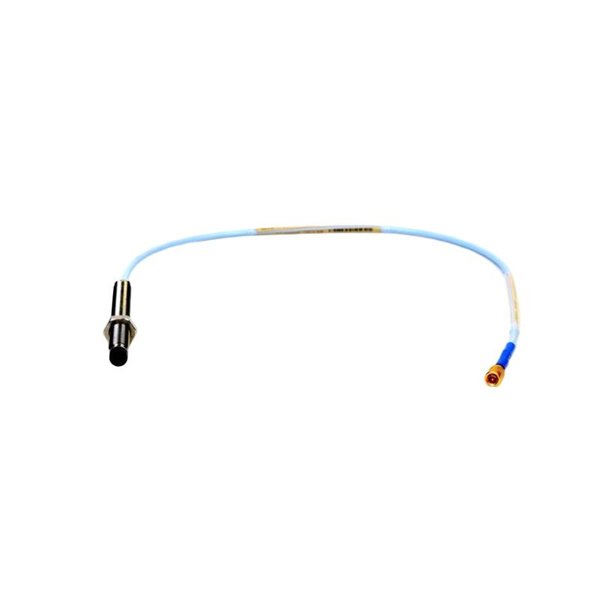

The Bently Nevada 330172-00-08-50-02-00 3300 5mm proximity probe is an advanced, high-precision measurement tool designed for monitoring machinery health and performance. This 5mm probe is part of Bently Nevada’s renowned 3300 series, which is widely recognized for providing accurate and reliable proximity measurements in harsh industrial environments. It is used to monitor the displacement and position of rotating machinery components such as shafts, bearings, and other moving parts.

This sensor is engineered for optimal performance in extreme conditions, providing continuous feedback on vibration and displacement in industrial settings. The Bently Nevada 3300 5mm proximity probe is typically used in turbines, motors, pumps, and compressors to detect potential issues such as misalignment, imbalance, and wear, enabling maintenance teams to take proactive measures.

Product Specifications

Applications

The Bently Nevada 330172-00-08-50-02-00 3300 5mm Proximity Probe is used in a wide range of applications, particularly in condition monitoring and vibration analysis. Common use cases include:

• Rotating Equipment Monitoring: The proximity probe is extensively used in monitoring turbines, compressors, and pumps, where precise displacement data is critical to ensure efficient operation and prevent mechanical failures.

• Condition-Based Maintenance: This probe helps in tracking vibration and displacement data, allowing maintenance teams to monitor machinery health and predict failures before they happen.

• Misalignment Detection: Used for detecting misalignment in rotating equipment, enabling teams to make corrective adjustments before damage occurs.

• Balancing and Vibration Monitoring: This sensor is ideal for detecting imbalance or excessive vibration, which could lead to wear or failure in high-speed machinery.

• Performance Monitoring in Critical Systems: Essential for real-time monitoring of systems where performance is vital, such as in power generation or oil and gas industries.

Product Advantages

• High Precision: The 5mm sensing distance provides high accuracy, making it ideal for critical applications requiring precise proximity measurements.

• Durable Construction: Built with stainless steel material, the sensor is designed to withstand harsh industrial environments, ensuring long-term reliability.

• Wide Temperature Range: The operating temperature range of -40°C to +120°C allows the sensor to be used in a variety of environments, including those with extreme temperatures.

• Reliable Output: The sensor provides analog output for easy integration into existing monitoring systems.

• Enhanced Signal Integrity: The sensor’s design ensures that the signal integrity remains intact, even in environments with significant electromagnetic interference.

• IP67 Protection: The IP67 protection rating ensures that the sensor remains resistant to dust, moisture, and other contaminants, ensuring reliable performance in tough conditions.

• Proactive Monitoring: By providing real-time displacement data, the proximity probe enables early detection of potential issues, reducing downtime and minimizing the risk of equipment failure.

FAQ

1. What is the sensing distance of the Bently Nevada 3300 5mm proximity probe?

The Bently Nevada 330172-00-08-50-02-00 proximity probe has a 5mm sensing distance, allowing it to measure small displacements accurately.

2. What is the typical application for this proximity probe?

This proximity probe is commonly used in rotating equipment monitoring such as turbines, compressors, and pumps, where it measures displacement and vibration to prevent mechanical failures.

3. What output type does the Bently Nevada 3300 proximity probe provide?

The Bently Nevada 3300 proximity probe provides analog output, which is ideal for integration with standard monitoring systems and helps track real-time displacement data.

4. What is the temperature range of the Bently Nevada 3300 5mm proximity probe?

The operating temperature range of the Bently Nevada 3300 proximity probe is -40°C to +120°C, making it suitable for use in extreme environmental conditions.

5. What is the weight of the Bently Nevada 3300 proximity probe?

The Bently Nevada 3300 5mm proximity probe weighs approximately 1.615 kg, making it manageable for installation and maintenance.

6. What is the frequency range of the Bently Nevada 3300 proximity probe?

The Bently Nevada 3300 5mm proximity probe has a frequency range of up to 100kHz, ensuring accurate measurements even in high-speed applications.

7. Is the Bently Nevada 3300 proximity probe suitable for high-vibration environments?

Yes, the Bently Nevada 3300 proximity probe is designed to provide reliable measurements even in environments with high vibration, making it ideal for critical machinery monitoring.

8. What is the protection class of the Bently Nevada 3300 proximity probe?

The Bently Nevada 3300 proximity probe has an IP67 protection class, ensuring that it is resistant to dust, moisture, and other contaminants, making it suitable for use in harsh environments.

9. Can the Bently Nevada 3300 proximity probe be used with other monitoring systems?

While designed to work with the 3300 XL series monitoring system, the Bently Nevada 3300 proximity probe can be integrated into other systems with compatible interfaces.

10. How is the Bently Nevada 3300 proximity probe mounted?

The Bently Nevada 3300 proximity probe typically uses a standard flange mount, making it easy to install in a variety of machines and equipment.
