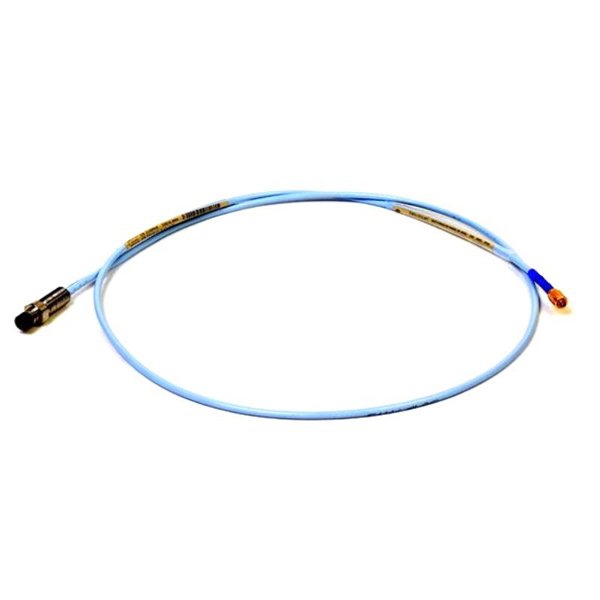

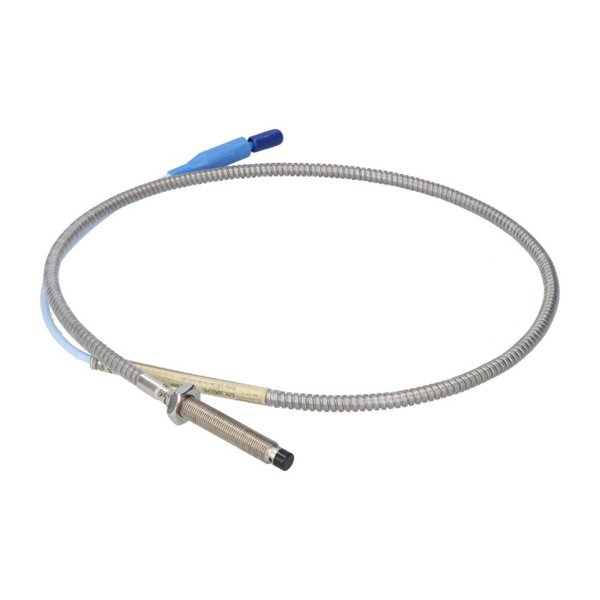

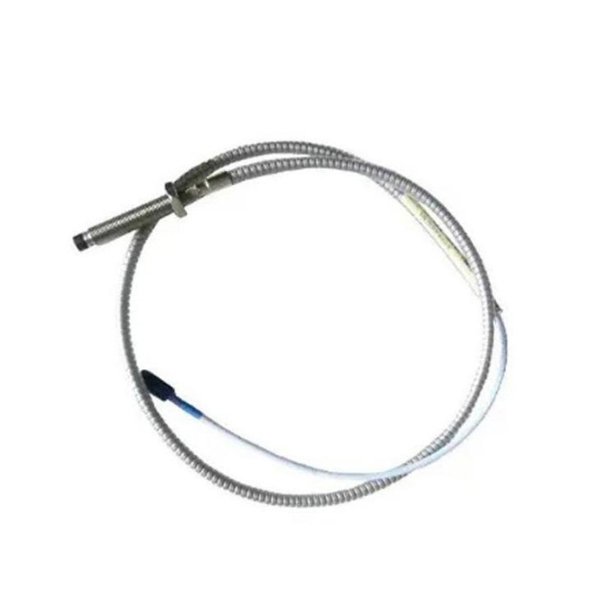

Bently Nevada 330104-00-07-50-02-00 3300 XL 8 mm Proximity Probe
Manufacturer:Bently Nevada
Product Number:330104-00-07-50-02-00
Product Type:3300 XL 8 mm Proximity Probe
Origin:USA
Total Length:5.0 meters
Weight:1.615 kg
Views:51
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 330104-00-07-50-02-00 is part of the 3300 XL 8 mm Proximity Transducer System, offering highly reliable, precise non-contact displacement and vibration measurements. It consists of a probe with M10 x 1 threaded mounting, armored cable, and ClickLoc connectors. Designed for harsh industrial environments, it ensures accurate monitoring of fluid-film bearing machines.
Applications
-
Turbomachinery vibration monitoring
-
Shaft position and radial displacement measurements
-
Overspeed and Keyphasor signal detection
-
Steam, gas, and hydro turbine condition monitoring
-
Gearbox and motor diagnostics
Advantages
Complies with API 670 for mechanical configuration and accuracy
Armor protection ensures durability in harsh environments
ClickLoc connectors prevent loosening and simplify installation
Full component interchangeability—no calibration required
Extended temperature capability with ETR versions
High RFI/EMI immunity suitable for industrial environments
Technical Specifications
| Parameter | Description |
|---|---|
| Probe Type | 3300 XL 8 mm with M10 x 1 thread, armored cable |
| Model | 330104-00-07-50-02-00 |
| Total Length | 5.0 meters |
| Weight | 1.615 kg (typical) |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Case Material | Stainless Steel (AISI 303 or 304) |
| Cable Type | 75Ω triaxial, FEP insulated with stainless steel armor |
| Operating Temp. (Probe) | -52°C to +177°C |
| Linear Range | 2 mm (80 mils) |
| Recommended Gap | -9 Vdc ≈ 1.27 mm (50 mils) |
| Incremental Scale Factor (ISF) | 7.87 V/mm ±5% (Standard 5m system) |
| Frequency Response | 0 to 10 kHz |
| Minimum Target Diameter | 15.2 mm (0.6 in) |
| Recommended Shaft Diameter | ≥ 76.2 mm (3 in) |
| Environmental Rating | RFI/EMI immune, CE compliant |
| Compliance | SIL 2/3, FCC, CE, RoHS, ATEX/IECEx |
FAQs
Q1: What does the “50” in the model number signify?
A1: It indicates the total cable length of 5.0 meters.
Q2: Is this probe compatible with older non-XL Bently Nevada systems?
A2: Yes, it is backward compatible and interchangeable with 3300 5 mm and 8 mm series.
Q3: Does it support API 670 compliance?
A3: Yes, the 3300 XL 8 mm series is fully compliant with API 670 standards.
Q4: What type of connector does it use?
A4: It uses gold-plated ClickLoc connectors with armor and protector.
Q5: Can this probe be used in high-vibration environments?
A5: Yes, it is designed specifically for such conditions in turbomachinery.
Q6: What’s the function of the armored cable?
A6: It protects the cable from mechanical damage and harsh environments.
Q7: What is the advantage of the FluidLoc option?
A7: It prevents oil ingress through the cable, suitable for wet machinery.
Q8: Is calibration required when replacing components?
A8: No, the components are fully interchangeable without field calibration.
Q9: What materials are used in the probe’s construction?
A9: The case is stainless steel, and the tip is molded PPS plastic.
Q10: What’s the max pressure rating of the probe tip?
A10: While pressure-rated with a Viton O-ring seal, pressure testing must be specified separately.
