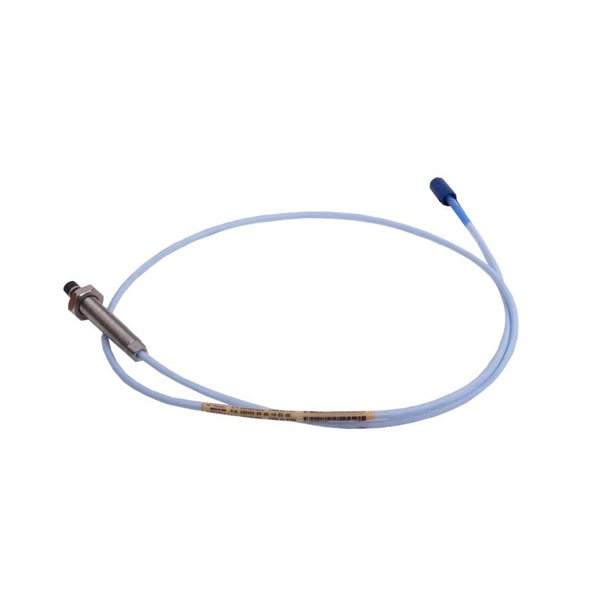

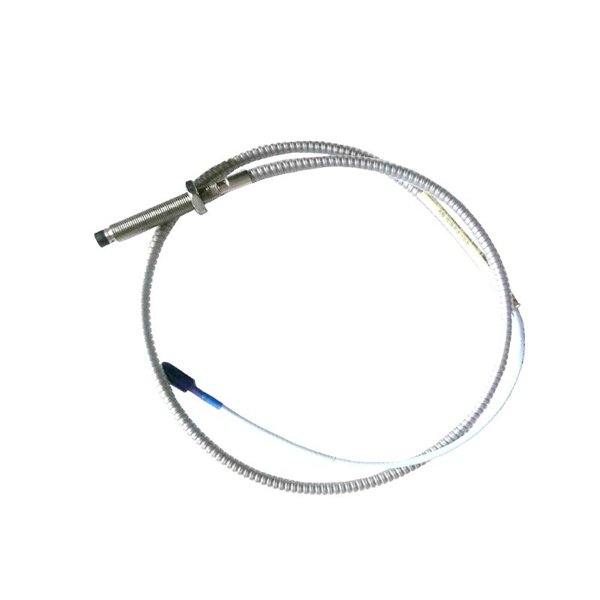

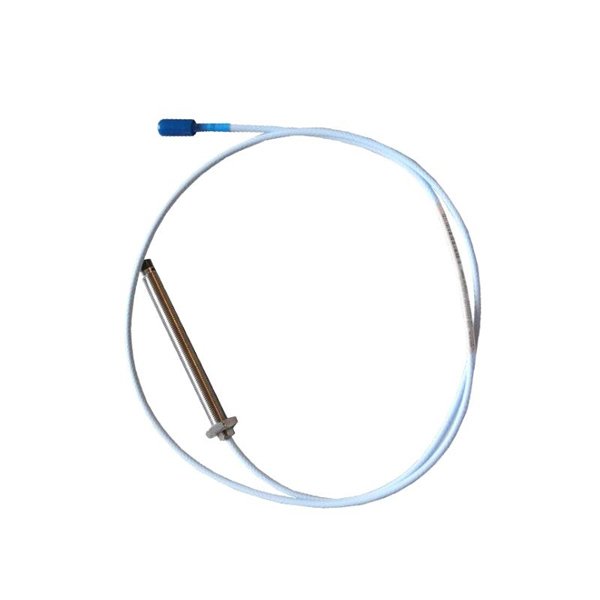

The Bently Nevada 330104-00-16-10-02-05 is a key component of the 3300 XL 8 mm Proximity Transducer System, developed by Bently Nevada, a Baker Hughes company. This proximity probe is widely recognized in the industry for its durability, accuracy, and superior vibration monitoring in critical rotating machinery applications.

The 3300 XL 8 mm system provides non-contact measurements of shaft displacement, position, and vibration. It consists of a probe, extension cable, and proximitor sensor. The model 330104-00-16-10-02-05 specifically refers to the probe component with a tip diameter of 8 mm, designed for robust performance under high-temperature, high-vibration, and harsh industrial conditions.

As part of Bently Nevada’s trusted line of machine protection systems, this proximity probe is compliant with API 670 standards and is compatible with various monitoring systems. It is a preferred choice for engineers responsible for maintaining turbomachinery, compressors, pumps, and generators in oil & gas, petrochemical, and power industries.

Technical Specifications

Applications

The Bently Nevada 330104-00-16-10-02-05 proximity probe is engineered for continuous monitoring of rotating equipment, particularly where high-precision and rugged sensing is necessary. Common applications include:

• Steam & Gas Turbines: Monitoring shaft displacement and radial vibration.

• Centrifugal Compressors: Ensuring real-time protection and diagnostics.

• Industrial Pumps: Tracking shaft movement and wear to prevent seal failures.

• Electric Generators: Vibration monitoring for condition-based maintenance.

• Gearboxes and Fans: Used to measure rotor vibration and detect imbalance or misalignment.

• Refinery and Petrochemical Plants: Embedded in critical process machinery.

• Hydraulic Motors: Detecting early-stage failure via displacement signals.

• Large Rotating Machines: General machinery health monitoring in power and manufacturing sectors.

Product Advantages

• API 670 Compliance: Meets stringent international standards for machine protection systems.

• High Reliability: Proven performance in extreme temperatures, vibration, and oil environments.

• Non-contact Design: Reduces mechanical wear and improves maintenance intervals.

• Robust Cable Construction: Abrasion-resistant jacket prolongs life in harsh routing scenarios.

• Consistent Calibration: Factory calibration ensures high precision across systems.

• Versatile System Integration: Compatible with a wide range of extension cables and proximitor modules.

• Field-Proven Technology: Used globally in thousands of critical asset installations.

• Compact and Durable Form: Easily embedded in tight spaces with secure mounting options.

Frequently Asked Questions (FAQ)

1. What does the part number 330104-00-16-10-02-05 specify?

   It refers to a specific 8 mm probe with a 16-foot cable and standard mounting thread (3/8-24 UNF).

2. Can this probe be used in high-temperature environments?

   Yes, it is rated for up to +177°C (+350°F), making it suitable for steam turbines and compressors.

3. Is the probe compatible with older 7200 and 3300 systems?

   It is primarily designed for the 3300 XL system but backward compatibility is possible with appropriate modules.

4. How is the probe typically installed?

   It’s threaded into a probe holder or bracket using torque between 5–8 in-lbf and aligned toward the shaft.

5. Does it require recalibration after installation?

   Factory-calibrated, but verification against target material is recommended during commissioning.

6. What extension cables are compatible with this probe?

   It is compatible with Bently Nevada 330130 series extension cables.

7. Can I use this probe with non-metallic targets?

   No, the probe is calibrated for AISI 4140 steel. Other materials will require custom calibration.

8. Is the probe immune to oil contamination?

   Yes, designed to operate in oil-rich turbine and compressor housings.

9. What is the sensitivity output of the probe?

   200 mV/mil (7.87 mV/µm), consistent across the linear measurement range.

10. Can this probe measure axial displacement?

    Yes, it can be mounted axially to detect thrust movement in rotating equipment.
