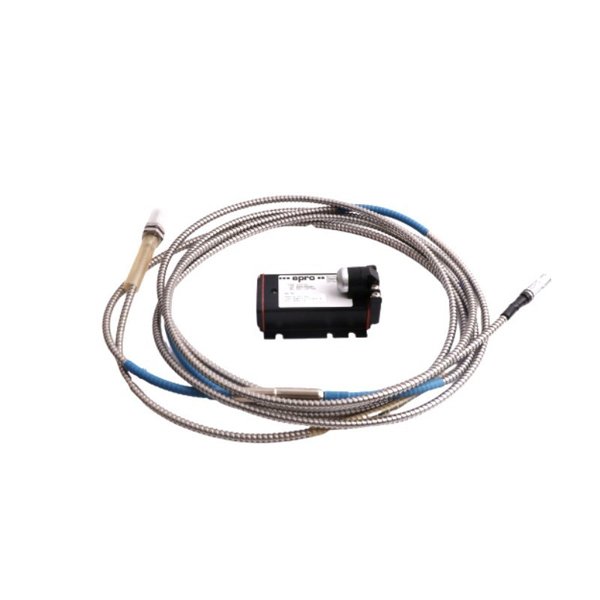

The Epro PR6424/105-121 is a high-precision 16mm Eddy Current Sensor designed for measuring displacement, proximity, and position in various industrial and manufacturing applications. This sensor operates on the principle of eddy current measurement, utilizing a magnetic field to detect changes in inductance caused by a conductive target. The result is an extremely accurate, contactless measurement system that is immune to external influences such as temperature fluctuations, magnetic fields, and vibrations.

Thanks to its compact design, the PR6424/105-121 is ideal for applications where space is limited but precise measurements are still required. The sensor is highly suitable for use in rotating machinery monitoring, bearing health assessment, and precision positioning in automated systems. Its robust construction ensures reliable performance in harsh industrial environments.

Technical Specifications

Product Applications

The Epro PR6424/105-121 Eddy Current Sensor is used in a wide range of industrial applications requiring precise displacement measurements:

• Rotating Machinery Monitoring: The sensor is widely used for monitoring rotating equipment such as motors, turbines, and shafts, detecting axial and radial displacement to prevent mechanical failures.

• Bearings and Vibration Monitoring: In bearing applications, the sensor helps detect wear and tear by measuring the displacement of bearings, preventing unexpected breakdowns.

• Proximity Detection: The sensor is used in proximity sensing applications, ensuring that parts and components maintain proper spacing or positioning.

• Position Measurement in Robotics: The sensor plays a crucial role in robotics, enabling precise positioning of robotic arms or grippers by measuring tiny displacements.

• Process Control: In manufacturing processes, the PR6424/105-121 ensures precise measurement and feedback, aiding in automation and quality control in production lines.

Its versatility in various industrial sectors and its compact design make it an ideal choice for precise and reliable measurements.

Product Advantages

• High Precision: With a resolution of 0.1 µm and an accuracy of ±0.1% of full scale, the PR6424/105-121 provides highly accurate and repeatable measurements.

• Compact and Durable: The sensor’s 16mm diameter head and stainless steel housing make it compact yet robust, capable of withstanding harsh conditions while fitting in tight spaces.

• Wide Measurement Range: Capable of measuring displacements in the 0 to 10 mm range, the PR6424/105-121 can be applied to a variety of precision measurement needs.

• Flexible Output Options: The sensor supports both analog and digital outputs, providing flexibility in integrating into existing control systems.

• Wide Temperature Tolerance: Operating within a temperature range of -20°C to 85°C, the PR6424/105-121 can function effectively in both extreme cold and heat.

• Environmental Immunity: The sensor’s resistance to external factors such as vibrations, magnetic fields, and temperature variations ensures consistent and accurate performance in a range of environments.

FAQ

1. What is the measurement range of the Epro PR6424/105-121 sensor?

The Epro PR6424/105-121 sensor has a measurement range from 0 to 10 mm, which allows it to measure small displacements accurately.

2. What output types does the PR6424/105-121 support?

The PR6424/105-121 sensor supports both analog and digital outputs, providing flexibility for use in various industrial control systems.

3. What is the resolution of the PR6424/105-121 sensor?

The sensor offers a high resolution of 0.1 µm, which ensures accurate displacement measurements even for small movements.

4. What is the accuracy of the PR6424/105-121 sensor?

The sensor has an accuracy of ±0.1% of full scale, ensuring high-precision measurements in critical applications.

5. What is the operating temperature range for the PR6424/105-121 sensor?

The sensor operates within a temperature range of -20°C to 85°C, making it suitable for use in various industrial environments.

6. What is the housing material of the PR6424/105-121 sensor?

The sensor is housed in stainless steel, which provides excellent durability and resistance to harsh environments.

7. How does the PR6424/105-121 sensor detect displacement?

The PR6424/105-121 uses eddy current measurement technology, where a magnetic field is generated and interacts with a conductive target. Changes in inductance are measured and translated into displacement.

8. What power supply does the PR6424/105-121 require?

The PR6424/105-121 requires a 15-30 VDC power supply, which is typical for most industrial sensors.

9. In what industries can the PR6424/105-121 sensor be used?

The sensor is ideal for applications in industries such as manufacturing, aerospace, automotive, robotics, and process control, where precise displacement measurement is crucial.

10. What connection type is used by the PR6424/105-121 sensor?

The PR6424/105-121 sensor uses an M12 connector, which ensures easy integration into industrial control systems.
