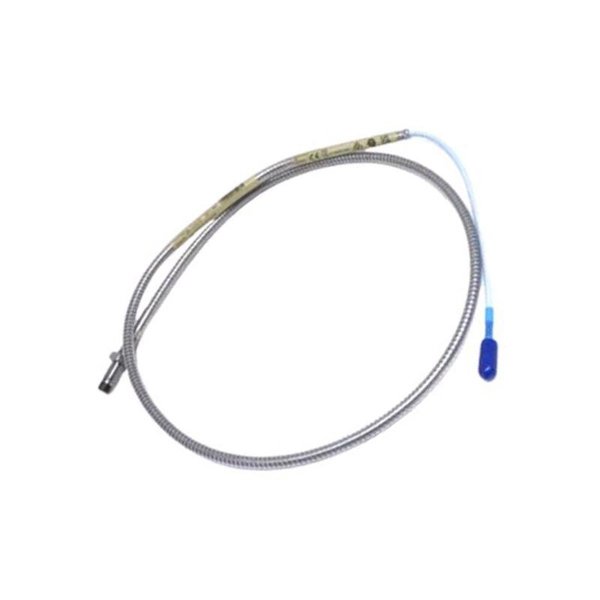

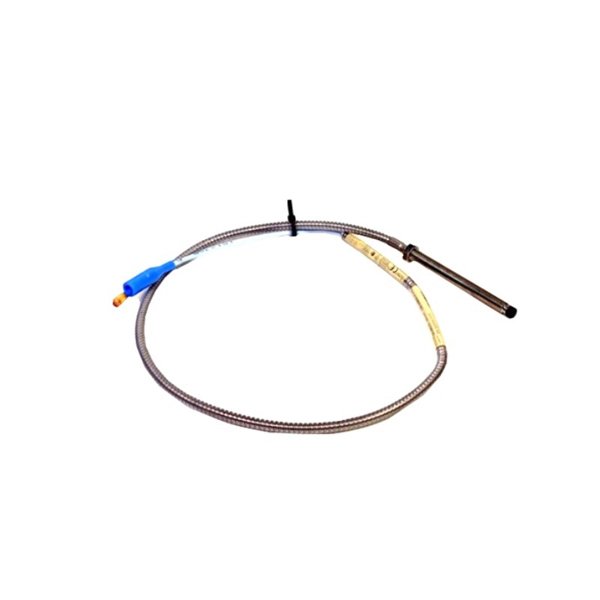

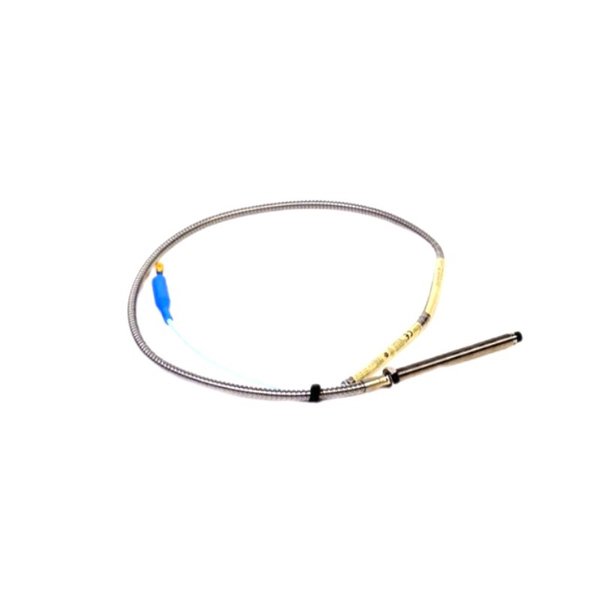

The Bently Nevada 330102-00-88-10-02-05 3300 XL 8 mm Proximity Probe is a high-precision displacement monitoring sensor designed for industrial machinery and rotating equipment. It is part of the 3300 XL series, renowned for its reliability in critical asset monitoring and machinery protection. This probe is used to accurately detect shaft position and vibration, providing real-time data for condition monitoring and protection systems.

Technical Specifications

Applications

• Monitoring of turbine shafts in power generation equipment

• Protection of compressors, pumps, and motors

• Vibration monitoring in high-speed rotating machinery

• Integration with 3300 XL monitoring systems for predictive maintenance

• Condition monitoring in petrochemical and oil & gas facilities

• Critical asset protection in manufacturing plants

Product Advantages

• High Accuracy: Provides precise displacement and vibration measurements.

• Durable Construction: Stainless steel housing ensures resistance to harsh industrial environments.

• Non-contact Measurement: Eliminates wear and tear, extending operational reliability.

• Wide Operating Temperature Range: Suitable for extreme conditions.

• Compatibility: Seamlessly integrates with 3300 XL monitoring systems.

• Fast Response: High-frequency response ensures accurate dynamic monitoring.

• Maintenance-Friendly: Easy to install and replace without affecting system uptime.

FAQ

Q1: What is the operating voltage range for this probe?

A1: The probe operates at 24 VDC, standard for 3300 XL systems.

Q2: Can this probe measure non-ferromagnetic materials?

A2: No, it is designed for ferromagnetic targets; non-ferromagnetic materials will not generate accurate readings.

Q3: What is the maximum cable length supported without signal degradation?

A3: The standard cable length is 1m; extensions up to 15 m are possible with proper shielding.

Q4: How does the probe respond to high vibration environments?

A4: It is designed to withstand 20 g vibration up to 2000 Hz without performance degradation.

Q5: Is it possible to replace the probe while the system is running?

A5: No, the system should be powered down before replacing the probe to avoid transient errors.

Q6: What is the maximum sensing gap for reliable measurement?

A6: The probe reliably measures within a 0.25–2.54 mm gap.

Q7: Does the probe provide analog or digital output?

A7: It provides an analog voltage output proportional to shaft displacement.

Q8: Can this probe be used in explosive atmospheres?

A8: It requires certification for hazardous areas; standard 3300 XL probes need intrinsically safe barriers for such environments.

Q9: How precise is the measurement accuracy?

A9: Typical accuracy is ±2 µm over the calibrated gap range.

Q10: What maintenance is required for long-term performance?

A10: Regular inspection of the probe tip and cable integrity is recommended; no calibration is generally needed under normal operation.
