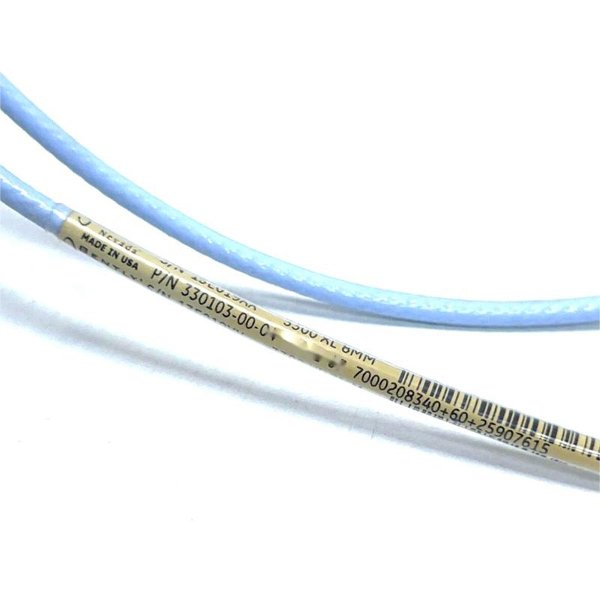

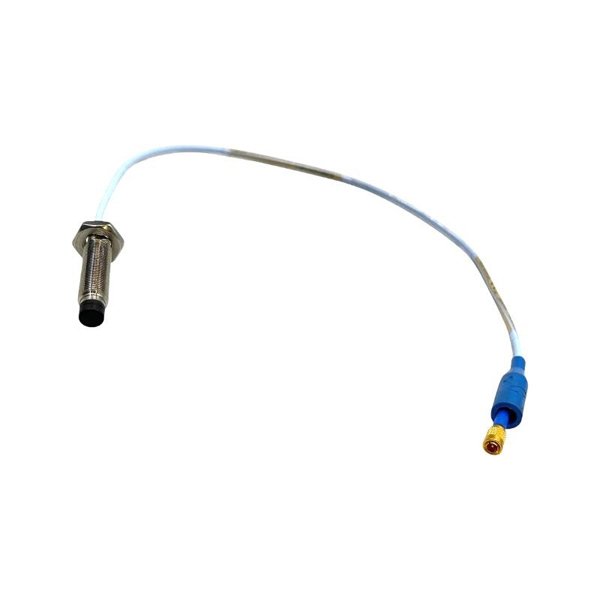

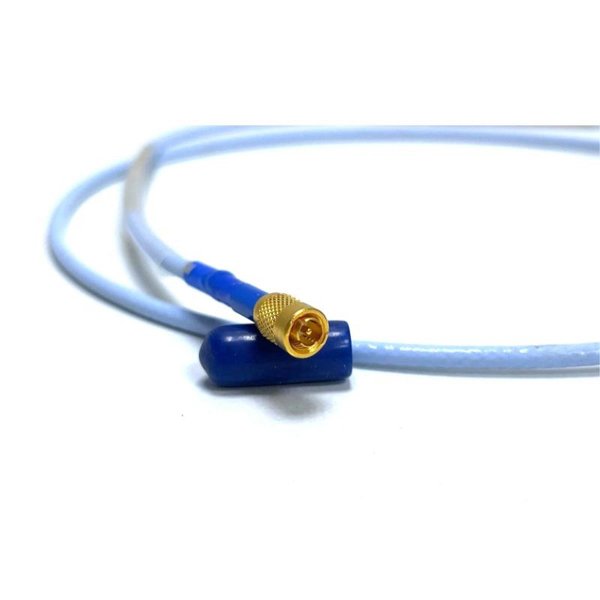

Bently Nevada 330103-00-16-10-12-05 3300 XL 8 mm Proximity Probe
Manufacturer:Bently Nevada
Product Number:330103-00-16-10-12-05
Product Type:3300 XL 8 mm Proximity Probe
Origin:USA
Total Length:1.0 meter
Weight:0.323 kg
Views:28
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 330103-00-16-10-12-05 is part of the 3300 XL 8 mm Proximity Transducer System, designed for high-precision measurement of shaft vibration and position in rotating machinery. It delivers a linear voltage output proportional to the distance between the probe tip and a conductive surface. This model provides robustness, improved temperature stability, and full compliance with API 670 standards.
Technical Specifications
| Parameter | Specification |
|---|---|
| Probe Type | 3300 XL 8 mm, M10 x 1 thread |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Linear Range | 2 mm (80 mils) |
| Operating Temperature | -52°C to +177°C (standard) |
| Storage Temperature | -52°C to +177°C |
| Frequency Response | 0 – 10 kHz (+0, -3 dB) |
| Recommended Shaft Diameter | ≥ 50.8 mm (2 in) |
| Probe Tip Material | PPS (Polyphenylene Sulfide) |
| Probe Case Material | Stainless Steel AISI 303/304 |
| Connector Type | Miniature coaxial ClickLoc |
| Mounting Torque | 7.5–11.2 N·m recommended |
Applications
-
Shaft vibration and position monitoring in turbines, compressors, and pumps.
-
Keyphasor and speed measurement applications.
-
Suitable for harsh industrial environments with high electromagnetic interference and extreme temperatures.
Advantages
-
Fully API 670 compliant.
-
High linearity and accuracy.
-
Backward compatibility with non-XL 3300 series.
-
Superior resistance to RFI/EMI.
-
ClickLoc connectors for secure and tool-free installation.
-
Optional FluidLoc cable prevents oil ingress.
FAQ
Q1: What is the linear range of the 330103 probe?
A1: The linear measurement range is 2 mm (80 mils).
Q2: Does the probe meet API 670 standards?
A2: Yes, it is fully compliant with API 670 mechanical and electrical specifications.
Q3: Can the probe operate in high-temperature environments?
A3: The standard probe operates up to +177°C, with an extended temperature option up to +218°C.
Q4: Is the probe compatible with older 3300 series components?
A4: Yes, it is backward compatible and interchangeable with 3300 5 mm and 8 mm components.
Q5: What type of connector is used?
A5: It uses a gold-plated miniature coaxial ClickLoc connector.
Q6: What is the recommended minimum shaft diameter?
A6: The minimum recommended shaft diameter is 50.8 mm (2 inches).
Q7: Does the probe resist radio frequency interference?
A7: Yes, it has improved RFI/EMI immunity for reliable operation.
Q8: What material is the probe tip made from?
A8: The tip is molded from PPS for durability.
Q9: Can the probe and extension cable withstand oil leakage?
A9: The optional FluidLoc cable design prevents oil ingress.
Q10: Is special installation tooling required?
A10: No, the ClickLoc connectors allow installation without special tools.
