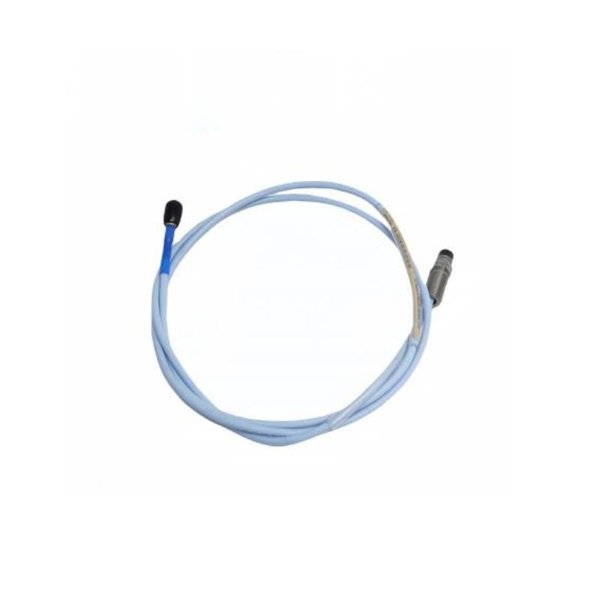

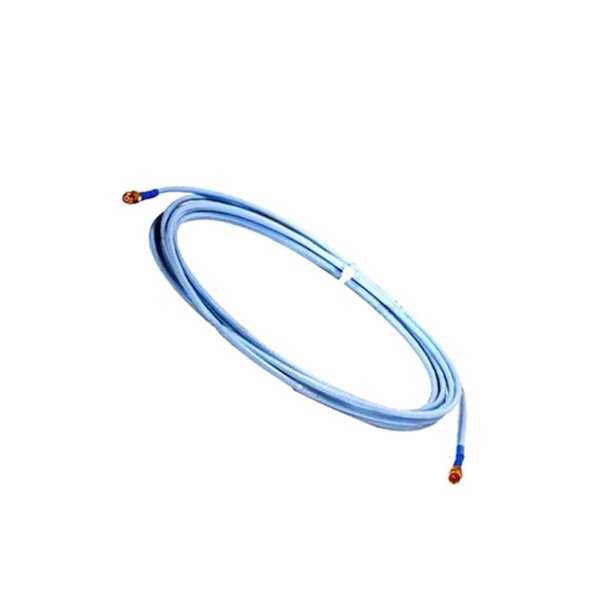

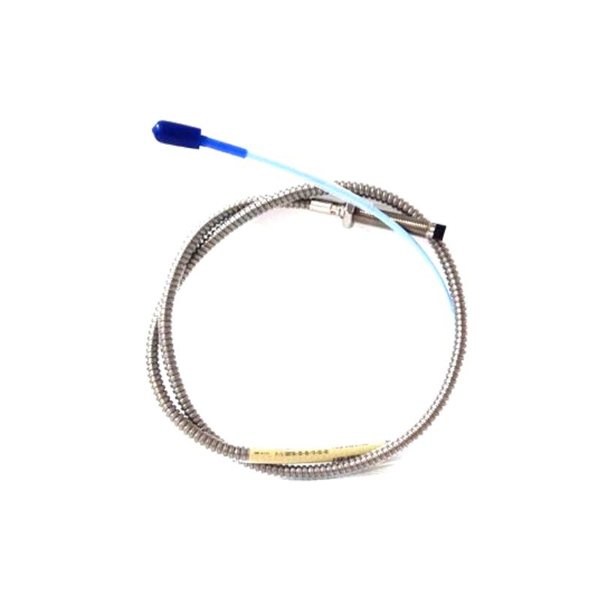

The Bently Nevada 330104-00-13-50-02-05 is part of the 3300 XL series of 8 mm Proximity Probes, designed for precise vibration and shaft displacement monitoring in rotating machinery. These probes are engineered for high reliability in industrial environments, providing accurate position measurements with minimal signal noise. The 3300 XL series is widely used in critical applications such as turbines, compressors, pumps, and generators to ensure early detection of mechanical issues and protection of machinery assets.

Product Advantages

• High Accuracy: Provides precise measurement of shaft displacement and vibration, enabling early detection of machinery faults.

• Robust Design: Resistant to harsh industrial conditions including high temperature, pressure, and corrosive environments.

• Wide Compatibility: Works seamlessly with Bently Nevada 3300 XL series monitoring systems.

• Stable Signal: Low-noise output ensures reliable data acquisition for condition monitoring and diagnostic purposes.

• Maintenance-Friendly: Designed for easy installation and replacement without requiring specialized tools.

• Proven Reliability: Bently Nevada’s 3300 XL probes have a long history of dependable performance in critical industrial applications.

Technical Specifications

Product Applications

• Turbines: Steam, gas, and hydro turbines for continuous shaft vibration monitoring.

• Compressors: Ensures reliable operation of centrifugal and axial compressors.

• Pumps: Monitors critical pumps to prevent mechanical failures.

• Generators: Provides shaft position feedback for electrical generators in power plants.

• Industrial Machinery: General use in rotating machinery for condition monitoring.

• Early Fault Detection: Identifies imbalance, misalignment, and bearing wear before major failure occurs.

FAQ

1. Q: What is the maximum vibration frequency the 3300 XL probe can accurately measure?

   A: The probe supports vibration measurement up to 20 kHz.

2. Q: Can the probe operate in explosive or hazardous environments?

   A: Yes, when used with appropriate intrinsically safe barriers.

3. Q: What type of signal output does the probe provide?

   A: AC voltage differential signal compatible with 3300 XL monitoring systems.

4. Q: Is the probe compatible with standard 3300 XL monitoring modules?

   A: Yes, fully compatible with all standard 3300 XL proximity monitoring systems.

5. Q: What is the recommended gap between the probe and the target shaft?

   A: The standard operating gap is 25 mils (0.635 mm), adjustable based on application requirements.

6. Q: Can the probe be installed in high-temperature applications?

   A: Yes, the probe operates reliably up to 120°C.

7. Q: What type of cable is used for this probe?

   A: High-temperature, shielded, twisted-pair cable.

8. Q: How does the probe maintain accuracy in high-vibration environments?

   A: The probe features a ruggedized tip and low-noise electronics to maintain signal integrity.

9. Q: Is the probe suitable for both radial and axial measurements?

   A: Yes, depending on installation orientation, it can measure both radial and axial displacement.

10. Q: What is the probe’s response time for detecting shaft motion?

    A: The response time is less than 1 microsecond, ensuring real-time monitoring.
