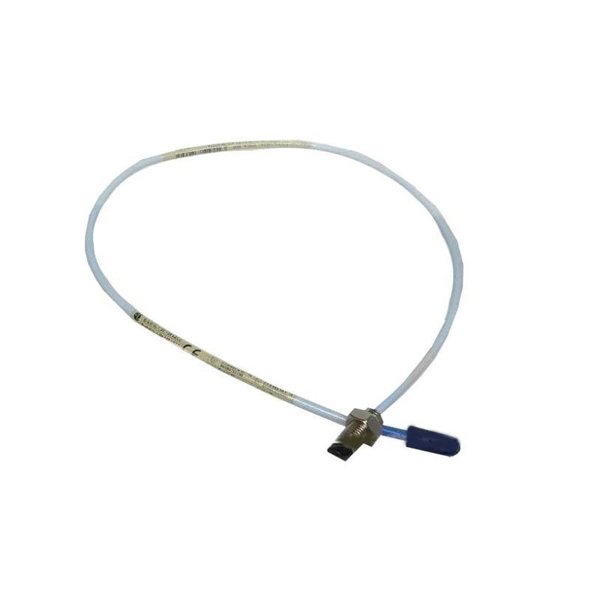

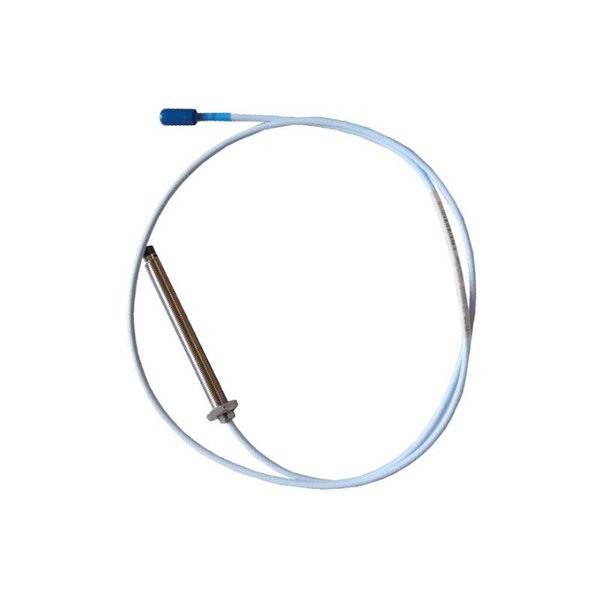

The Bently Nevada 330103-00-02-10-02-05 is a high-precision 8mm proximity probe from the renowned 3300 XL series. Designed for non-contact measurement of shaft vibration and position, this probe utilizes eddy current technology to deliver accurate and reliable data essential for machinery monitoring and protection systems. Its robust construction and compatibility with various industrial environments make it a preferred choice for critical applications.

Product Specifications

Product Applications

The Bently Nevada 330103-00-02-10-02-05 is extensively used in various industrial applications, including:

• Steam and Gas Turbines: Monitoring shaft vibration and axial thrust to prevent mechanical failures.

• Centrifugal Compressors: Detecting vibration anomalies for predictive maintenance.

• Industrial Pumps: Preventing issues like cavitation and imbalance through continuous monitoring.

• Electric Motors and Generators: Ensuring optimal performance by tracking radial and axial movements.

• Gearboxes and Expanders: Maintaining alignment accuracy and detecting early faults.

• Petrochemical and Power Plants: Integrating into machinery protection systems compliant with API 670 standards.

Product Advantages

• High Sensitivity and Accuracy: Delivers precise measurements essential for critical machinery monitoring.

• Robust Environmental Tolerance: Operates reliably under extreme temperatures and harsh conditions.

• Modular Design: Allows independent replacement of probe, extension cable, and proximitor, reducing downtime.

• Superior EMI/RFI Immunity: Functions effectively in electrically noisy industrial environments.

• Compliance with Industry Standards: Meets API 670, CE, RoHS, and ATEX certifications, ensuring safety and reliability.

• Versatile Mounting Options: Threaded design facilitates easy installation in various configurations.

Frequently Asked Questions (FAQ)

1. Q: What does the model number 330103-00-02-10-02-05 signify?

   A: It indicates the probe series, unthreaded length, overall case length, total length, connector type, and agency approval.

2. Q: Is this probe compatible with all 3300 XL proximitor sensors?

   A: Yes, it is specifically designed for compatibility with 3300 XL proximitor modules.

3. Q: Can this probe be used in hazardous environments?

   A: Yes, when paired with certified proximitor sensors and appropriate barriers, it is suitable for hazardous areas.

4. Q: What is the operating temperature range of this probe?

   A: It operates reliably between -40°C and +125°C.

5. Q: How is the probe mounted?

   A: It can be mounted using a 3/8-24 UNF threaded port or bracket with locking hardware.

6. Q: What is the output voltage range of the probe?

   A: The output voltage ranges from 0 to -22 VDC, correlating with the distance to the target.

7. Q: Is the cable armored?

   A: This model comes with a standard cable; armored versions are available upon request.

8. Q: What materials can the probe detect?

   A: It is calibrated for AISI 4140 steel but can work with other metals; re-calibration may be required.

9. Q: What is the linear sensing range of the probe?

   A: It provides accurate measurements within a range of 0.2 mm to 2.5 mm.

10. Q: Can the system length be extended beyond the specified length?

    A: The total system length is fixed; however, different models are available with alternative lengths.
