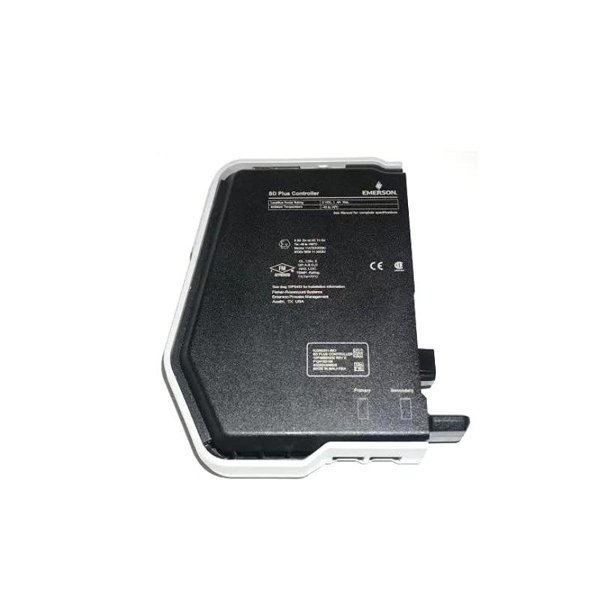

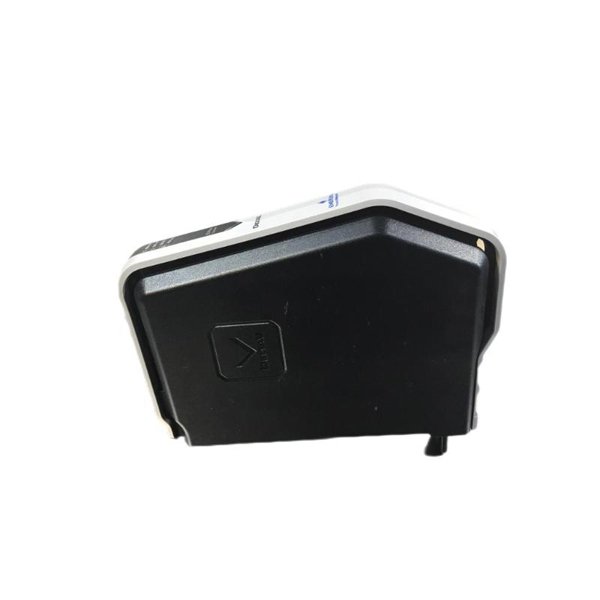

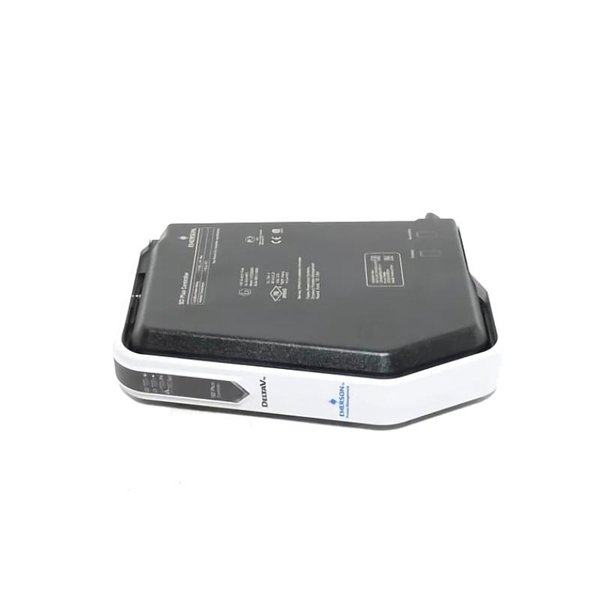

The Emerson KJ2003X1-BK1 is a robust and highly intelligent controller module designed specifically for use in Emerson’s DeltaV™ Distributed Control System (DCS). This controller plays a critical role in orchestrating process automation strategies across industrial environments, offering advanced capabilities for real-time control, system communication, diagnostics, and redundancy.

The KJ2003X1-BK1 is built with high reliability in mind, making it suitable for continuous operation in mission-critical processes. It integrates seamlessly into the DeltaV system architecture and supports scalable applications across process industries such as oil & gas, chemical processing, and power generation.

Whether implemented as a standalone primary controller or configured with redundancy for high-availability operations, this model ensures smooth performance, efficient control execution, and ease of integration with both Emerson and third-party devices.

Product Specifications

Product Applications

The Emerson KJ2003X1-BK1 is engineered to handle critical control functions across a variety of industries where reliability, speed, and scalability are non-negotiable:

• Oil & Gas: Upstream wellhead control, midstream pipeline management, downstream refining automation.

• Power Generation: Turbine control systems, balance of plant operations, boiler sequencing.

• Chemical Processing: Batch control, reactor temperature and pressure management, continuous process loops.

• Pharmaceuticals: Cleanroom process control, compliant batch operations, CIP/SIP process control.

• Water Treatment: Pumping station control, filtration management, chemical dosing automation.

• Pulp & Paper: Pulp mill sequencing, paper machine automation, chemical control loops.

• Food & Beverage: Batch recipes, temperature/humidity monitoring, clean-in-place cycles.

Product Advantages

• High Availability: Offers support for redundant control to ensure zero process interruption.

• Deterministic Performance: Real-time loop execution ensures tight control of critical processes.

• Efficient Communication: Dual Ethernet ports and support for open protocols enable easy integration.

• Scalable Architecture: Supports small and large systems alike with flexible expansion options.

• Environmentally Robust: Wide temperature operating range and industrial-grade design.

• Reduced Engineering Time: Integration with DeltaV Control Studio simplifies logic configuration.

• Enhanced System Diagnostics: Built-in watchdogs, health checks, and LED indicators for proactive maintenance.

• Hot Swappable: Can be removed and replaced without shutting down the control system.

• Secure and Compliant: Meets stringent industrial standards for hazardous areas and secure operations.

• Long Lifecycle Support: Backed by Emerson’s global service and long-term parts availability.

Frequently Asked Questions (FAQ)

1. What is the main function of the KJ2003X1-BK1 module?

   It functions as a central controller within the Emerson DeltaV DCS, executing control strategies in real-time.

2. Can this module be configured for redundant operation?

   Yes, it supports hot standby redundancy for mission-critical applications.

3. How many I/O channels can it support?

   Up to 750 I/O channels per controller, depending on system design.

4. Is the KJ2003X1-BK1 suitable for hazardous environments?

   Yes, it is ATEX Zone 2 and FM Class 1 Div 2 certified for use in hazardous areas.

5. What diagnostic features are available?

   It includes built-in self-checks, a watchdog timer, and LED status indicators.

6. How is the module mounted in the system?

   It mounts on a DeltaV carrier base or standard DIN rail.

7. Is the controller hot-swappable?

   Yes, it can be swapped without shutting down the system, maintaining uptime.

8. Which software tools are used for programming this controller?

   It is programmed using DeltaV Control Studio and managed via DeltaV Explorer.

9. What kind of communication interfaces are provided?

   It has dual 10/100 Mbps Ethernet ports supporting DeltaV and open protocols.

10. What distinguishes the BK1 from the BA2 controller variant?

    The BK1 version typically supports similar hardware functionality but may differ in firmware compatibility or region-specific certifications.
