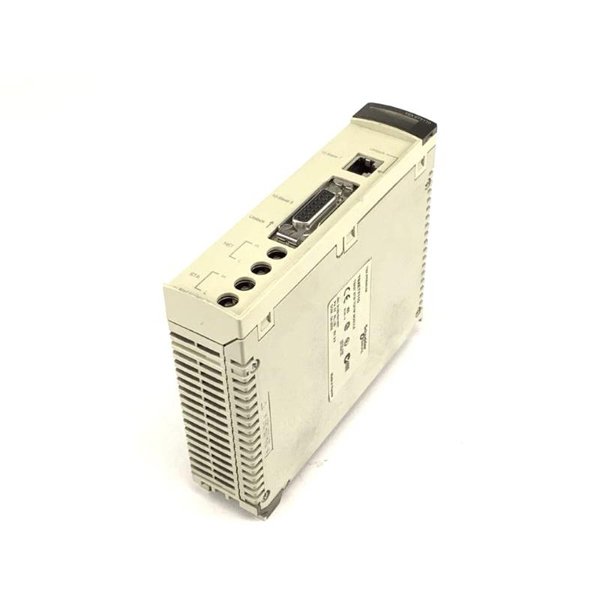

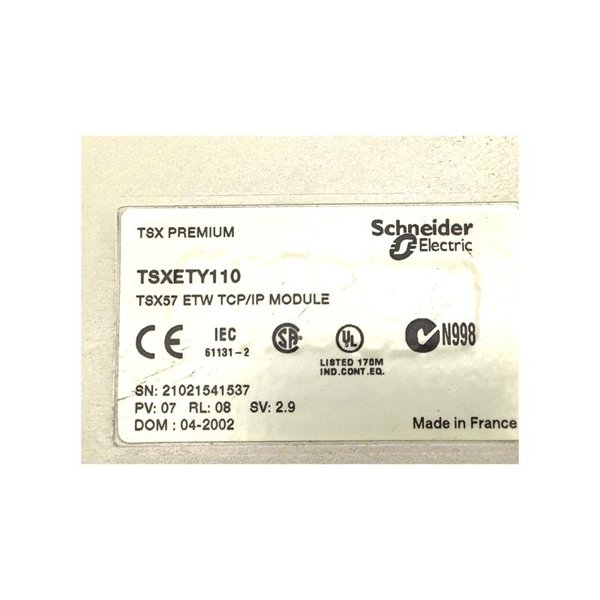

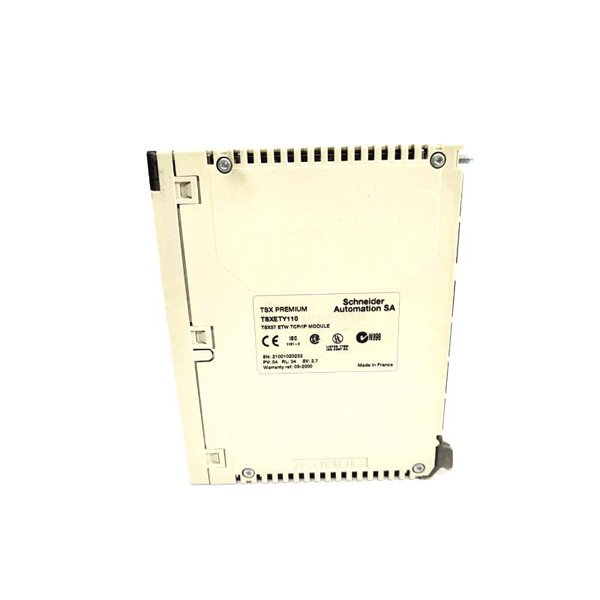

The Schneider Electric TSXETY110 is an Ethernet TCP/IP communication module designed for the Modicon TSX Premium PLC series. It facilitates seamless integration of PLCs into Ethernet networks, enabling real-time data exchange and remote monitoring. This module supports multiple protocols, including Modbus TCP, Ethway, and Uni-Telway, ensuring compatibility with various industrial communication standards.

Technical Specifications

Applications

The TSXETY110 module is widely used across various industries that require reliable Ethernet communication, including:

• Manufacturing Automation: Integrating PLCs with SCADA systems for real-time monitoring and control.

• Process Industries: Facilitating data exchange between control systems and field devices.

• Building Management Systems: Enabling centralized control of HVAC, lighting, and security systems.

• Water and Wastewater Treatment: Monitoring and controlling treatment processes remotely.

• Energy Management: Collecting and analyzing data from various energy meters and devices.

Product Advantages

• Multi-Protocol Support: Ensures compatibility with various industrial communication standards.

• High Connection Capacity: Supports up to 64 simultaneous connections, facilitating extensive network integration.

• Integrated Web Server: Allows for remote diagnostics and monitoring via standard web browsers.

• Robust Design: Built to withstand industrial environments with a wide operating temperature range.

• Seamless Integration: Easily integrates into existing TSX Premium PLC systems without extensive modifications.

Frequently Asked Questions (FAQ)

1. What is the primary function of the TSXETY110 module in a PLC system?

The TSXETY110 acts as an Ethernet TCP/IP communication interface for TSX Premium PLCs, enabling real-time data exchange, remote monitoring, and programming over an Ethernet network.

2. Can the TSXETY110 module support Modbus TCP/IP protocol?

Yes, the TSXETY110 natively supports the Modbus TCP/IP protocol, making it compatible with SCADA systems, HMIs, and other Modbus-enabled devices in industrial networks.

3. What software is required to configure or access the TSXETY110 module?

You will need Unity Pro or PL7 software, depending on your controller model. Both platforms offer full configuration, diagnostics, and firmware update capabilities for the TSXETY110.

4. Does the TSXETY110 support web server functionality?

The standard TSXETY110 does not include embedded web server functionality. For web-based monitoring, you will need the TSXETY110WS version or a higher-end model such as TSXETY5103.

5. What kind of network infrastructure is required for integrating TSXETY110?

A standard 10/100 Mbps Ethernet switch or hub can be used. The module supports RJ45 connections and requires Cat5 or better Ethernet cabling.

6. Is the TSXETY110 suitable for industrial environments with high electrical noise?

Yes, it is designed for industrial-grade operation and complies with EMC standards. However, for environments with extreme EMI or transient surges, additional shielding or isolation may be necessary.

7. How many simultaneous connections can TSXETY110 handle?

The module typically supports up to 16 simultaneous Modbus TCP/IP client requests. For more complex networks or redundancy, consider higher-end modules like the TSXETY5103.

8. How can firmware updates be performed on the TSXETY110 module?

Firmware updates are handled through the configuration software via Ethernet. Ensure the module is not in use during the update and always back up your project files beforehand.

9. What diagnostic features are available in the TSXETY110?

The module provides LED indicators for link, activity, and module status. Additional diagnostic details such as communication errors and performance stats can be viewed via the software.

10. Is the TSXETY110 compatible with Schneider’s newer automation platforms like Modicon M340 or M580?

No, TSXETY110 is specifically designed for the TSX Premium family. For Modicon M340/M580 series, consider Ethernet modules like BMXNOE0100 or BME NOC modules, which are optimized for those platforms.
