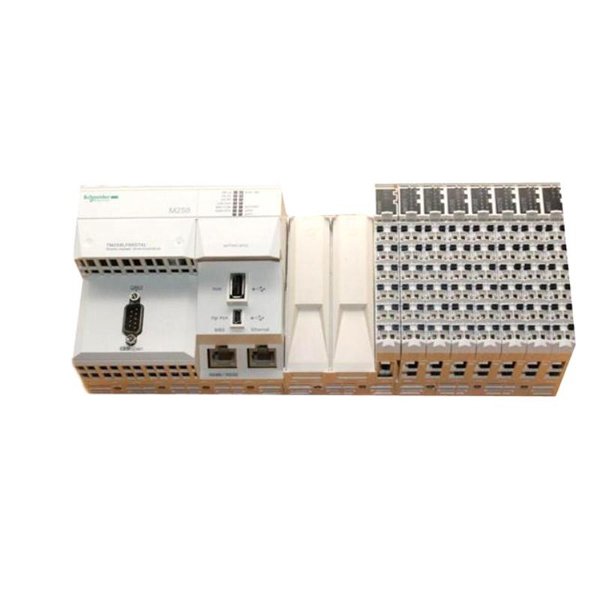

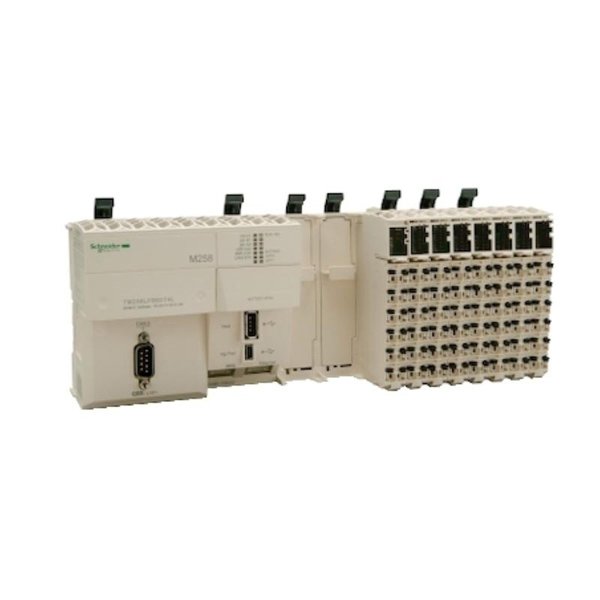

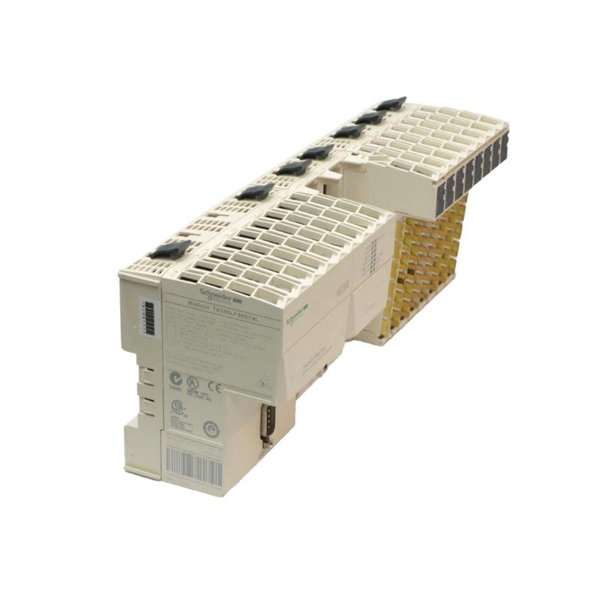

Schneider TM258LF66DT4L Programmable controller
Manufacturer: Schneider Electric
Part Number: TM258LF66DT4L
Category: Programmable Logic Controller (Modicon M258)
Digital Inputs: 24 (24 VDC)
Digital Outputs: 12 (transistor), 12 (relay)
Communication: Ethernet, CANopen, serial
System Compatibility: Modicon M258, SoMachine
Application: Machine control, motion control, industrial automation
Product Description
The Schneider TM258LF66DT4L is a high-performance modular controller from the Modicon M258 Logic Controller series. Designed for industrial automation applications, it offers advanced processing capabilities, robust communication options, and flexible I/O configurations. This controller is ideal for complex machinery, packaging systems, and process control applications.
Product Parameters
| Parameter | Specification |
|---|---|
| Model | TM258LF66DT4L |
| Processor | 32-bit ARM Cortex-A9 |
| Memory | 64 MB RAM, 128 MB Flash |
| Digital I/O | 24 inputs, 16 outputs (configurable) |
| Analog I/O | 4 analog inputs, 2 analog outputs |
| Communication | Ethernet, USB, CAN, Serial ports |
| Programming | SoMachine/SoMachine Basic |
| Operating Voltage | 24 V DC (19.2–28.8 V) |
| Power Consumption | 8 W (typical) |
| Operating Temp. | -20°C to +60°C |
| Storage Temp. | -40°C to +85°C |
| Humidity | 5–95% (non-condensing) |
| Dimensions | 262.5x 99x 85mm |
| Weight | 0.8 kg |
| Certifications | CE, UL, cUL, IEC 61131-2 |
Product Applications
The TM258LF66DT4L is widely used in:
Industrial Automation: Control of production lines, robotic systems, and CNC machines.
Packaging Machinery: High-speed labeling, filling, and sealing systems.
Process Control: Monitoring and regulation of temperature, pressure, and flow.
Material Handling: Conveyor systems, sorting machines, and AGVs.
Energy Management: Smart grid and renewable energy systems.
Product Advantages
High Performance: 32-bit processor ensures fast execution of complex logic.
Modular Design: Easy expansion with additional I/O modules.
Versatile Communication: Supports Ethernet, CAN, and serial protocols.
Robust Construction: Designed for harsh industrial environments.
User-Friendly Programming: Compatible with SoMachine/SoMachine Basic.
Energy Efficient: Low power consumption reduces operational costs.
Frequently Asked Questions (FAQ)
What programming software is used for the TM258LF66DT4L?
SoMachine or SoMachine Basic is required for configuration and programming.
Can I expand the I/O capacity of this controller?
Yes, additional I/O modules can be added via the built-in expansion ports.
What is the maximum operating temperature?
It operates reliably between -20°C and +60°C.
Does it support Ethernet/IP communication?
Yes, it supports Ethernet/IP for seamless integration with SCADA and HMI systems.
Is the TM258LF66DT4L suitable for safety-critical applications?
While robust, it is not SIL or PL-rated. For safety applications, consider dedicated safety controllers.
What is the warranty period for this product?
Schneider Electric typically offers a 1-year warranty, subject to terms and conditions.
Can it be used in outdoor environments?
Only if installed in an enclosure rated for outdoor use (IP65 or higher).
How many analog inputs/outputs are available?
It has 4 analog inputs and 2 analog outputs by default.
What is the backup method for program storage?
Programs are stored in non-volatile flash memory and can be backed up via USB.
Is training available for programming this controller?
Schneider Electric offers training courses for SoMachine and related software.
