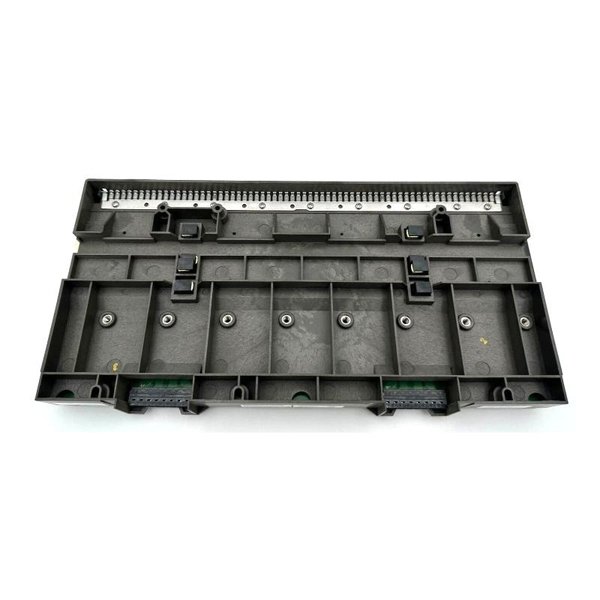

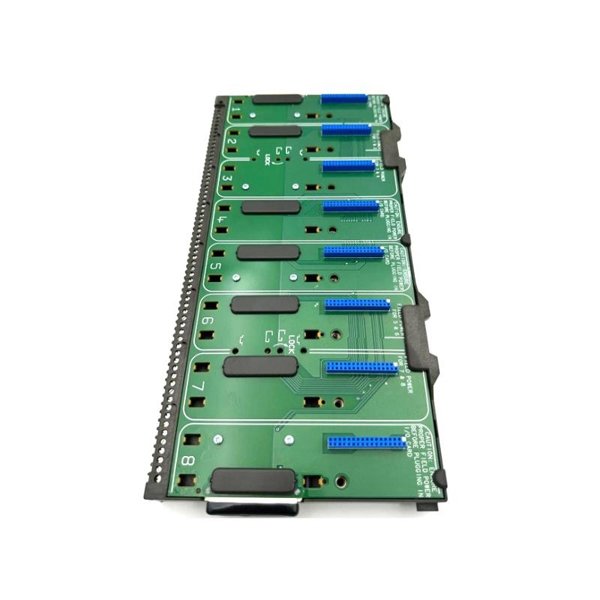

The Emerson VE4050E1C0 is an 8-wide I/O interface carrier designed for the DeltaV™ M-series distributed control system. It features a carrier shield bar and a single enhanced carrier extender cable (1.2 m). This module enables efficient integration of I/O cards and terminal blocks into a compact, horizontally mounted modular subsystem. It supports plug-and-play installation and is engineered for systems requiring scalable expansion with integrated field power per two I/O cards.

Technical Specifications

Applications

• Process control systems in oil & gas, power, and chemical industries

• Safety Instrumented Systems (SIS) requiring high integrity I/O integration

• Modular control architectures demanding scalable I/O expansion

• Complex automation networks using DeltaV™ M-series systems

• Marine and hazardous area certified industrial environments

Product Advantages

• Modular Expandability: Seamlessly add I/O capacity as systems grow.

• Integrated Power Distribution: Simplifies field wiring and minimizes noise.

• DIN Rail Mounting: Enables quick and easy installation.

• Carrier Shield Bar: Enhances EMC performance in industrial environments.

• Compatibility: Works with DeltaV SIS systems using enhanced extender cables.

• Plug-and-Play Architecture: Reduces system configuration time and complexity.

FAQ

Q1: What is the primary function of the VE4050E1C0?

A1: It serves as an 8-wide I/O interface carrier, supporting eight I/O cards and terminal blocks for use with the DeltaV M-series system.

Q2: Can this carrier be used with redundant SIS systems?

A2: Yes, it includes a single enhanced carrier extender cable compatible with DeltaV SIS networks.

Q3: What type of DIN rail is required for mounting?

A3: A T-type DIN rail is used for mounting the VE4050E1C0.

Q4: Is individual field power supported per I/O card?

A4: No, this model distributes field power per two I/O cards.

Q5: What kind of certifications does the product meet?

A5: It complies with CE, FM, CSA, ATEX, and marine certifications such as ABS and DNV.

Q6: How many carriers can be added in a single I/O subsystem?

A6: A maximum of eight 8-wide carriers can be supported in one subsystem.

Q7: Does the VE4050E1C0 support plug-and-play functionality?

A7: Yes, it allows easy integration with I/O terminal blocks and I/O cards.

Q8: Can the carrier be used in hazardous environments?

A8: Yes, it is certified for Class I, Division 2 and ATEX Zone 2 installations.

Q9: What’s the difference between this and the VE4050K1C0 model?

A9: VE4050K1C0 offers individual field power per I/O card; VE4050E1C0 does not.

Q10: Is there a limitation when mixing 4-wide and 8-wide carriers?

A10: Yes, when using an M-series controller, slot numbering skips after 4-wide carriers.
