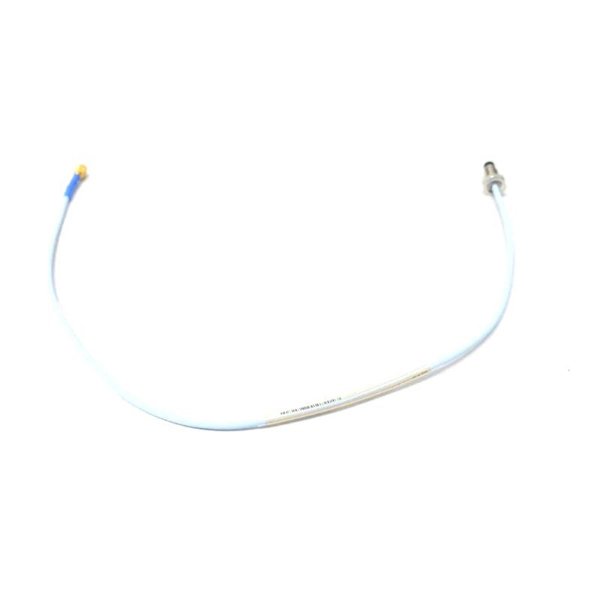

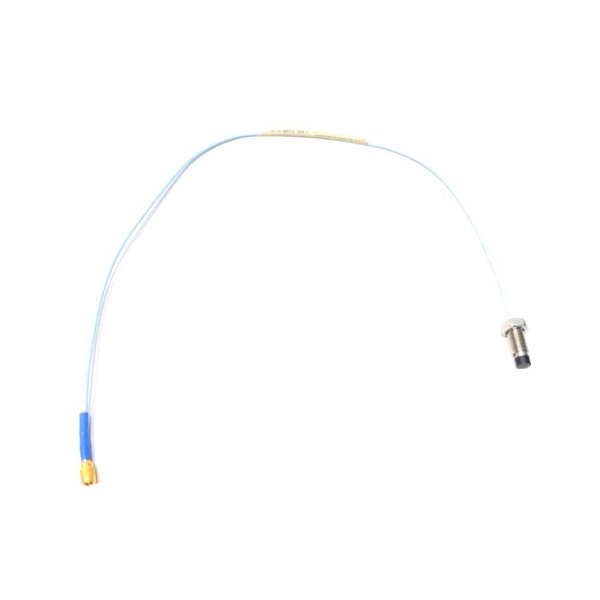

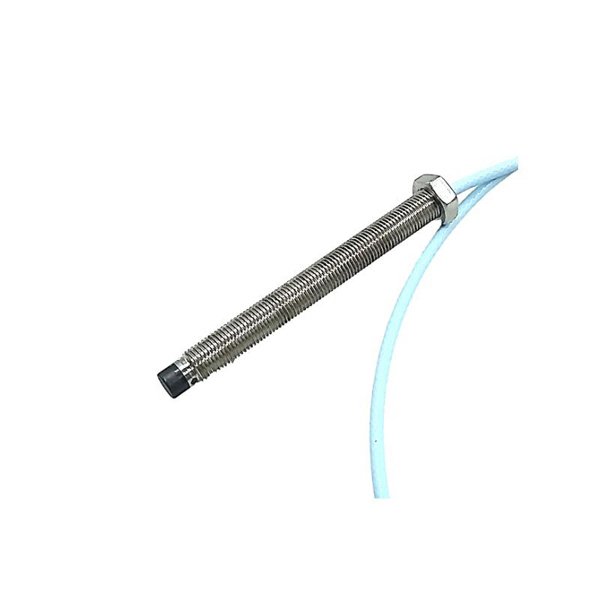

The Bently Nevada 330101-00-25-10-02-05 is a high-performance 8 mm proximity probe from the 3300 XL series, engineered for reliable and precise non-contact vibration and position measurements in rotating machinery. It offers excellent resistance to harsh environments and ensures long-term stability and accuracy in industrial monitoring systems.

Product Features

• 8 mm probe tip for standard applications

• Compatible with 3300 XL Proximitor sensors

• Designed for hazardous environments

• Long-term reliability with robust cable and connector design

Technical Specifications

Application Areas

• Steam and gas turbines

• Compressors

• Motors and generators

• Pumps

• Gearboxes

• Fans and blowers

Product Advantages

• Rugged Build: Withstands extreme temperatures and industrial environments

• High Accuracy: Reliable and repeatable displacement measurements

• Wide Compatibility: Integrates seamlessly with other 3300 XL system components

• Flexible Installation: Multiple thread and cable length options

• Long Lifespan: Designed for years of maintenance-free operation

Frequently Asked Questions (FAQ)

1. What does the model number 330101-00-25-10-02-05 represent?

Each segment indicates specifications like cable length, thread type, and connector options tailored to specific applications.

2. Is this probe suitable for high-temperature environments?

Yes, it operates reliably in temperatures up to +177°C.

3. Can it be used with non-Bently Nevada systems?

It is optimized for use with Bently Nevada 3300 XL Proximitor sensors, but may work with compatible third-party systems depending on configuration.

4. What type of output does this probe provide?

It provides a voltage output proportional to the distance between the probe tip and the observed surface.

5. Is the probe tip replaceable?

No, the tip is fixed and designed for long-term use without replacement.

6. Can the cable be extended beyond 25 feet?

No, the system is calibrated for specific cable lengths. Extending beyond factory configuration may affect accuracy.

7. What is the probe’s protection rating?

It features robust environmental sealing but does not have a specific IP rating. It is suitable for industrial-grade environments.

8. Is this probe intrinsically safe?

Some variants of the 3300 XL series are available in intrinsically safe versions. Check the specific configuration.

9. Does it require regular maintenance?

No routine maintenance is required under normal conditions.

10. What is the main difference between the 3300 XL and older series?

Improved cable design, enhanced environmental durability, and better EMI resistance.
