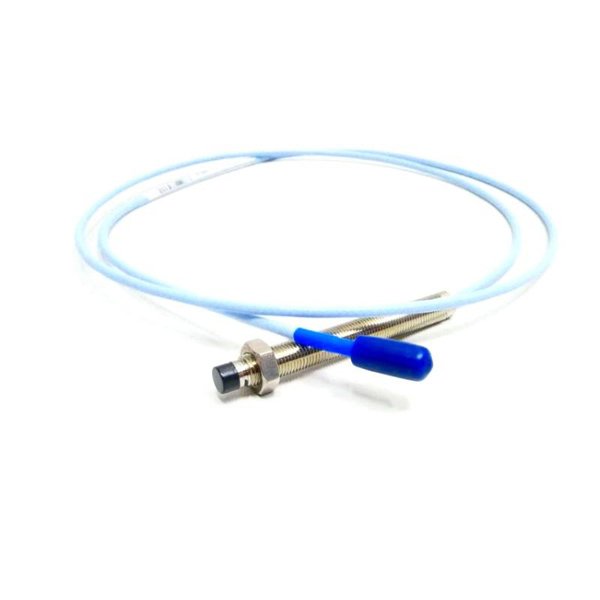

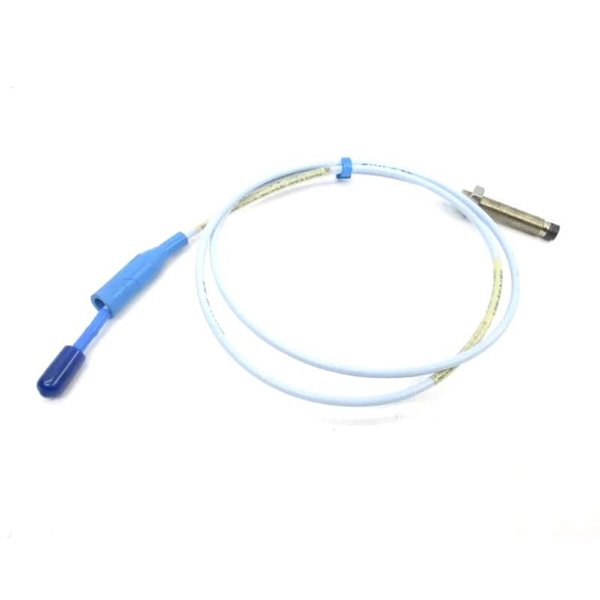

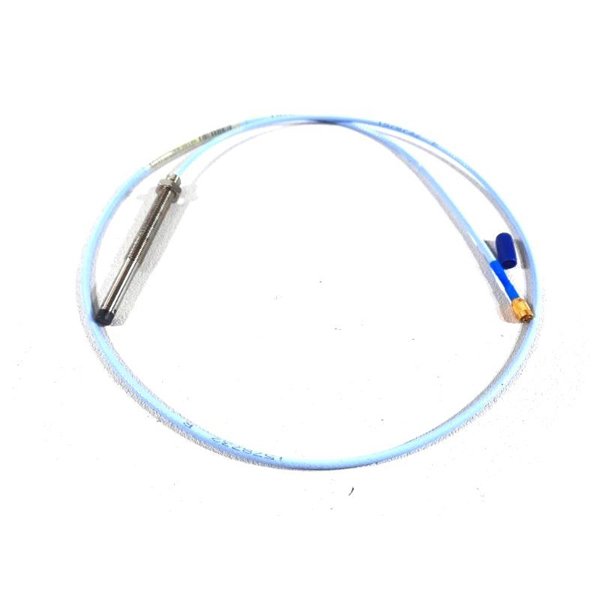

Bently Nevada 330101-20-45-05-02-05 3300 XL 8 mm Proximity Probe
Manufacturer:Bently Nevada
Product Number:330101-20-45-05-02-05
Product Type:3300 XL 8 mm Proximity Probe
Origin:USA
Total Length:0.5 meter
Weight:0.162 kg
Views:35
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 330101-20-45-05-02-05 is a high-performance 3300 XL 8 mm Proximity Probe designed for vibration and position measurement in rotating machinery. It outputs a voltage proportional to the distance between the probe tip and the target surface. Optimized for fluid-film bearing machines, it offers robust construction, superior RFI immunity, and full compliance with API 670 standards.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 330101-20-45-05-02-05 |
| Probe Diameter | 8 mm |
| Thread | 3/8-24 UNF |
| Total Length | 0.5 meter (1.6 ft) |
| Weight | 0.162 kg |
| Linear Range | 0.25–2.3 mm (10–90 mils) |
| Recommended Gap Setting | ~1.27 mm (50 mils) at -9 Vdc |
| Incremental Scale Factor | 7.87 V/mm ±5% (5m system) |
| Frequency Response | 0–10 kHz (+0, -3 dB) |
| Minimum Target Size | 15.2 mm diameter |
| Operating Temperature Range | Probe: -52°C to +177°C |
| Cable Type | 75Ω triaxial FEP insulated |
| Connector | Gold-plated ClickLoc mini coaxial |
| Material | Probe tip: PPS; Case: Stainless Steel |
| Compliance | API 670, CE, RoHS, SIL 2/3 |
Applications
-
Vibration monitoring on turbines, compressors, pumps.
-
Shaft position and Keyphasor measurements.
-
Condition monitoring of critical rotating equipment.
-
Suitable for high-density panel or DIN rail installations.
Advantages
-
Full API 670 compliance for critical machinery.
-
Backward and forward compatibility with 3300 5 mm and 8 mm systems.
-
Improved robustness with TipLoc and CableLoc designs.
-
Excellent RFI/EMI immunity for reliable operation.
-
ClickLoc connectors simplify installation and improve reliability.
FAQ
Q1: What is the linear range of the probe?
A1: The linear measurement range is 0.25 to 2.3 mm (10 to 90 mils).
Q2: Is this probe compatible with older 3300 systems?
A2: Yes, it is fully backward compatible with 3300 5 mm and 8 mm systems.
Q3: Can it operate in high-temperature environments?
A3: Yes, the standard probe operates up to +177°C, with an ETR version available for up to +218°C.
Q4: Does it require calibration for different materials?
A4: By default, it is calibrated for AISI 4140 steel. Calibration for other materials is available upon request.
Q5: What is the recommended gap setting?
A5: The recommended gap setting is approximately 1.27 mm (50 mils) for radial vibration.
Q6: Is it suitable for hazardous areas?
A6: Yes, with appropriate installation, it meets ATEX, CSA, and IECEx hazardous area certifications.
Q7: Can I use it with armored cables?
A7: Yes, an armored cable option is available for additional protection.
Q8: Does the probe include connector protectors?
A8: Connector protectors are optional and recommended for environmental protection.
Q9: What minimum target size is required?
A9: The minimum recommended target size is 15.2 mm diameter.
Q10: How resistant is it to electromagnetic interference?
A10: It is highly immune to RFI/EMI and meets CE requirements without special shielding.
