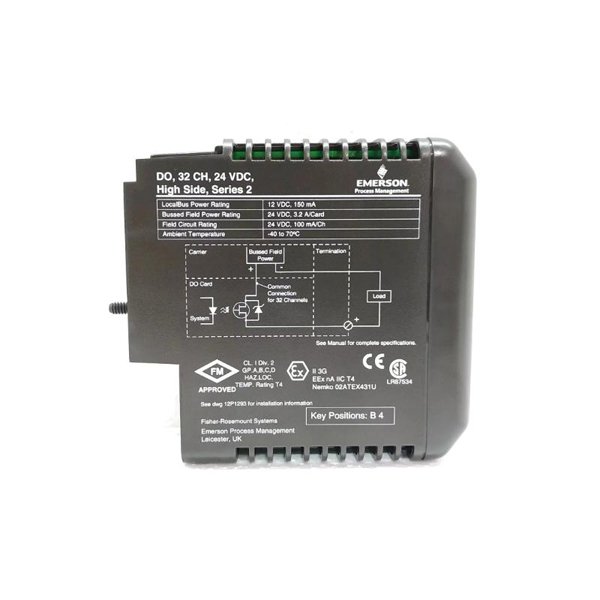

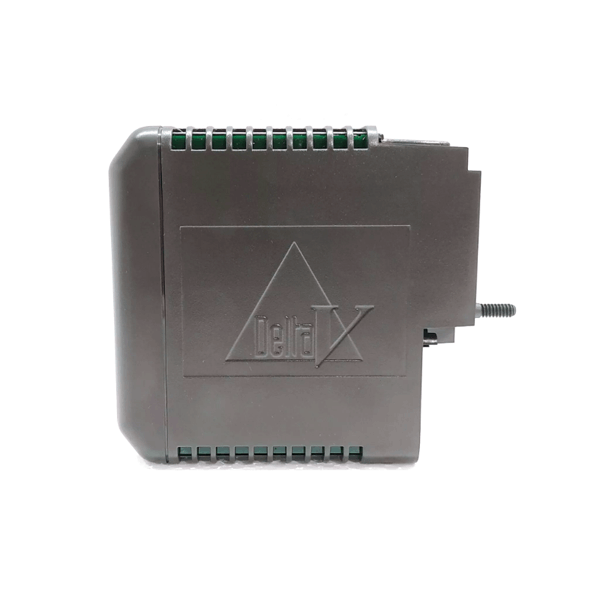

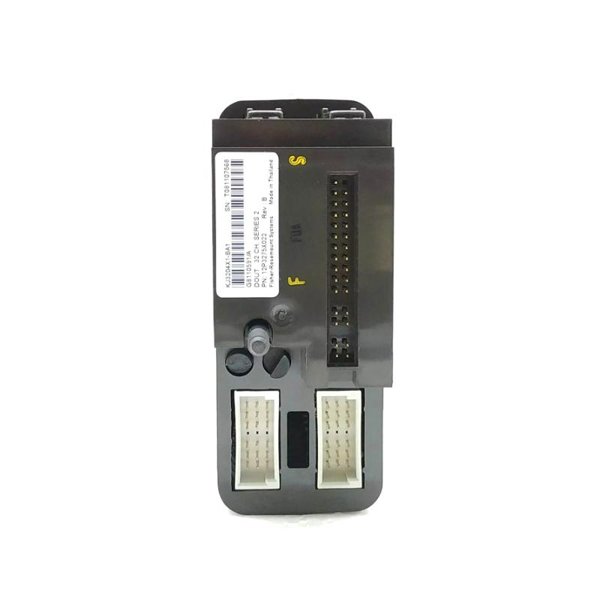

Emerson VE4002S1T2B5 KJ3204X1-BA1 12P3275X022 Discrete Output Module
Manufacturer:Emerson
Product Number:VE4002S1T2B5 KJ3204X1-BA1 12P3275X022
Product Type:Discrete Output Module
Origin:USA
Dimensions:160 x 130 x 50 mm
Weight:0.181 kg
Views:87
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Emerson VE4002S1T2B5 KJ3204X1-BA1 12P3275X022 is a discrete output module designed for the DeltaV Distributed Control System (DCS). This module provides reliable and efficient control of discrete devices within industrial automation systems. With 32 channels of high-side 24 VDC outputs, it is ideal for applications requiring precise on/off control of field devices such as solenoids, relays, and indicators.
Engineered for robustness and versatility, the module ensures seamless integration into DeltaV systems, enhancing operational efficiency and system reliability.
Product Specifications
| Specification | Details |
|---|---|
| Model Number | VE4002S1T2B5 |
| Part Numbers | KJ3204X1-BA1, 12P3275X022 |
| Product Type | Discrete Output Module |
| System Compatibility | Emerson DeltaV DCS |
| Number of Channels | 32 Channels |
| Output Type | High-Side Switching |
| Output Voltage | 24 VDC |
| Output Current per Channel | 100 mA |
| LocalBus Power Rating | 12 VDC at 150 mA |
| Bussed Field Power Rating | 24 VDC at 3.2 A per card |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% RH, non-condensing |
| Shock Resistance | 10g ½ Sinewave for 11 ms |
| Vibration Resistance | 1 mm Peak to Peak from 2 to 13.2 Hz; 0.7g from 13.2 to 150 Hz |
| Airborne Contaminants | ISA-S71.04-1985 Class G3 |
| IP Rating | IP20 |
| Dimensions (L x W x H) | 160 x 130 x 50 mm |
| Weight | 0.181 kg |
| Certifications | CE, UL, CSA, ATEX |
Product Applications
The Emerson VE4002S1T2B5 Discrete Output Module is utilized in various industrial applications, including:
- Manufacturing Automation: Controls machinery and equipment operations.
- Process Control Systems: Manages discrete processes in chemical and petrochemical industries.
- Energy Management: Oversees operations in power generation and distribution systems.
- Water Treatment Facilities: Controls pumps, valves, and other equipment.
- Building Automation: Manages lighting, HVAC systems, and security controls.
Product Advantages
- High Channel Density: Offers 32 output channels, maximizing control capabilities within a compact module.
- Robust Design: Withstands harsh industrial environments with wide operating temperature ranges and resistance to shock and vibration.
- Efficient Power Management: Low power consumption per channel, reducing operational costs.
- Seamless Integration: Fully compatible with Emerson’s DeltaV DCS, ensuring easy installation and configuration.
- Enhanced Reliability: High-side switching design provides improved protection against short circuits and overloads.
