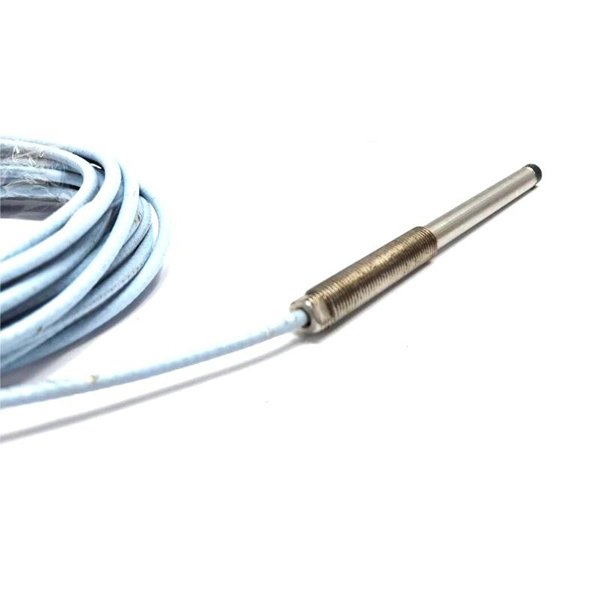

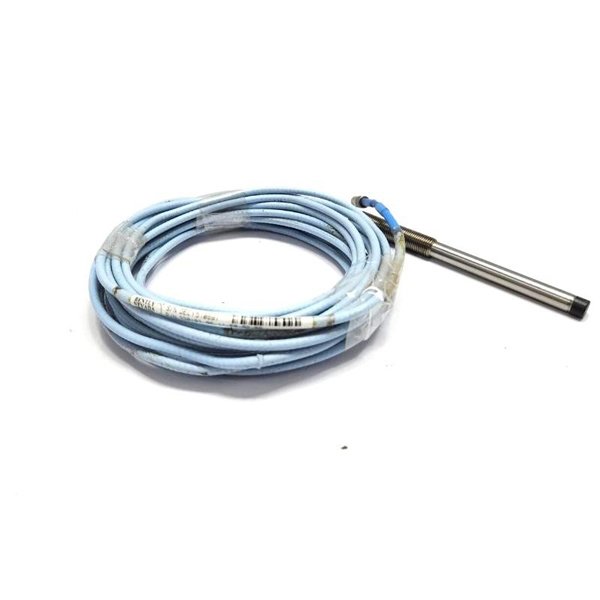

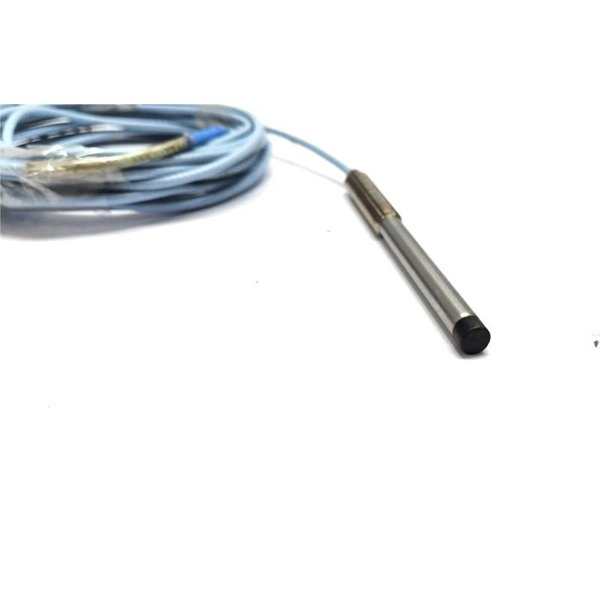

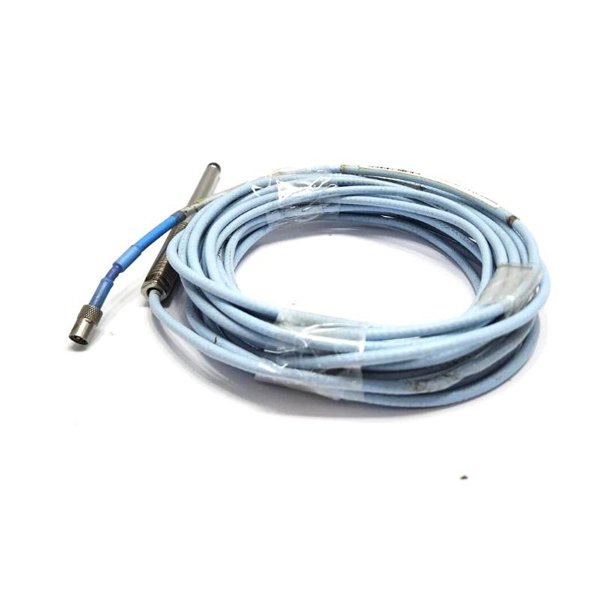

Bently Nevada 330103-00-15-10-02-05 3300 XL 8 mm Proximity Probe
Manufacturer:Bently Nevada
Product Number:330103-00-15-10-02-05
Product Type:3300 XL 8 mm Proximity Probe
Origin:USA
Total Length:1.0 meter
Weight:0.323 kg
Views:35
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 330103-00-15-10-02-05 is part of the 3300 XL 8 mm Proximity Transducer System. It delivers accurate static and dynamic measurements of position and vibration on rotating machinery with fluid-film bearings. This metric-thread probe, paired with an extension cable and Proximitor sensor, ensures compliance with API 670 standards and features advanced EMI immunity, robust construction, and full component interchangeability.
Technical Specifications
| Parameter | Value |
|---|---|
| Probe Tip Diameter | 8 mm |
| Thread Type | M10 x 1 |
| Total Length | 1.0 meter (3.3 feet) |
| Weight | 0.323 kg |
| Linear Range | 0.25 mm – 2.3 mm (10–90 mils) |
| Operating Temperature | -52°C to +177°C (standard probe) |
| Max Pressure Seal | Viton O-ring (not pressure tested) |
| Cable Type | FEP insulated triaxial, optional FluidLoc |
| Material (Probe Case) | Stainless Steel AISI 303/304 |
| Material (Tip) | Polyphenylene sulfide (PPS) |
Applications
-
Vibration and position monitoring on fluid-film bearing machinery
-
Keyphasor reference and overspeed measurements
-
High-temperature and harsh industrial environments
Advantages
-
Meets API 670 requirements
-
High immunity to EMI and RFI
-
Robust, patented TipLoc and CableLoc designs
-
Fully interchangeable components
-
Extended temperature range options
-
Easy field wiring with SpringLoc connectors
FAQ
Q1: What is the primary use of this proximity probe?
A1: It is used for precise position and vibration monitoring in rotating machinery.
Q2: Does it meet API 670 standards?
A2: Yes, it fully complies with API 670 standards for accuracy and linearity.
Q3: Can the components be mixed with older non-XL systems?
A3: Yes, but system performance will be limited to the non-XL specifications.
Q4: What is the maximum operating temperature of the standard probe?
A4: +177°C for the standard probe tip.
Q5: Is it resistant to radio frequency interference?
A5: Yes, the design ensures high immunity to RFI and EMI.
Q6: What is the recommended shaft diameter for accurate measurements?
A6: At least 50.8 mm (2 inches), with 76.2 mm (3 inches) recommended.
Q7: Does the probe come with armored cable?
A7: This specific model is without armor but armored versions are available.
Q8: How is the cable protected against oil leakage?
A8: Optional FluidLoc cable prevents oil from leaking through the cable.
Q9: What is the weight of the 1-meter probe?
A9: Approximately 0.323 kg.
Q10: Are connector protectors included?
A10: No, they are optional and recommended for added environmental protection.
