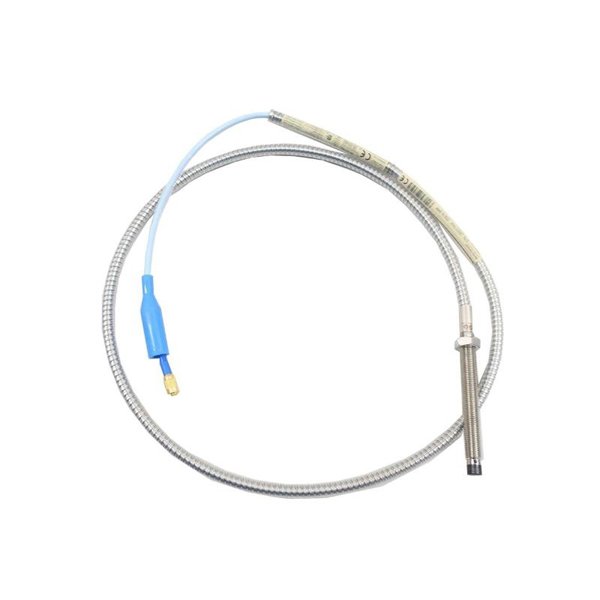

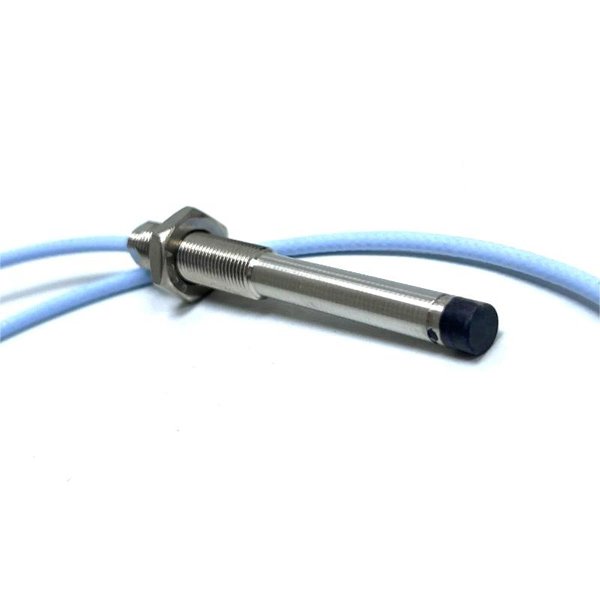

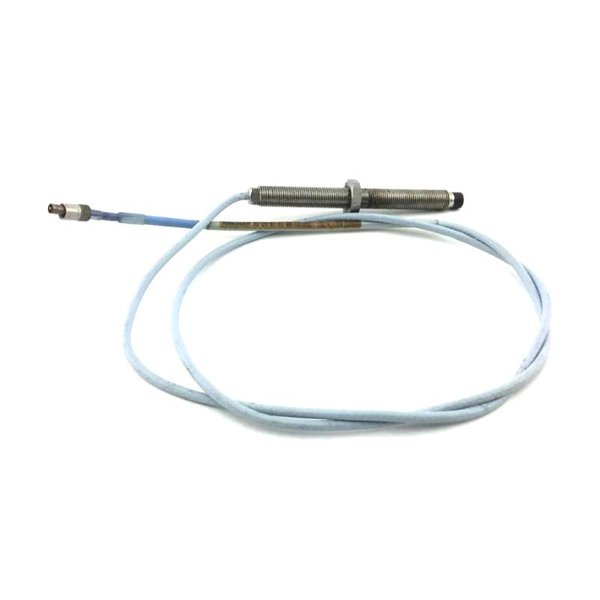

The Bently Nevada 330103-00-17-10-02-00 is a precision-engineered proximity probe within the 3300 XL 8 mm series. Designed for reliable vibration and displacement measurements, it ensures accurate monitoring of critical rotating machinery such as turbines, compressors, pumps, and motors. Its rugged construction, miniature ClickLoc connector, and compliance with API 670 make it a trusted choice in industrial condition monitoring systems.

Technical Specifications

Product Applications

• Continuous monitoring of shaft vibration and position in rotating machinery.

• Measurement of radial and axial shaft displacement.

• Condition monitoring in turbines, compressors, pumps, and generators.

• Integration with Bently Nevada Proximitor sensors for API 670 compliant protection systems.

• Use in predictive maintenance strategies to prevent machinery failure.

Product Advantages

• High Accuracy: Delivers precise vibration and displacement data in compliance with API 670.

• Rugged Reliability: Designed for harsh industrial environments with extended temperature capability.

• Interchangeability: Fully interchangeable with other 3300 XL probes, extension cables, and Proximitor sensors.

• ClickLoc Connector: Ensures secure connections with reliable signal transmission.

• Proven Performance: Widely adopted across industries for critical machinery protection.

FAQ

Q1: What type of sensor technology does the 330103-00-17-10-02-00 use?

A1: It uses eddy-current sensor technology for non-contact vibration and displacement measurements.

Q2: Is this probe compliant with API 670 standards?

A2: Yes, it meets API 670 (4th Edition) requirements for linear range, accuracy, and mechanical configuration.

Q3: Can the probe be used with all 3300 XL extension cables?

A3: Yes, it is fully interchangeable within the 3300 XL system.

Q4: What is the linear range of this probe?

A4: The linear range is approximately 2.0 mm (80 mils).

Q5: What connector type does this probe use?

A5: It features a miniature coaxial ClickLoc connector with a standard cable.

Q6: What is the operating temperature range?

A6: The probe operates reliably between -35 °C and +177 °C.

Q7: What machinery is best suited for this probe?

A7: It is ideal for turbines, compressors, pumps, and motors requiring precise shaft vibration monitoring.

Q8: What is the difference between this model and those with hazardous-area approvals?

A8: This version does not carry hazardous-area approvals; approved versions (e.g., with “05” suffix) include CSA, ATEX, and IECEx certifications.

Q9: What is the total length and weight of this probe?

A9: The total length is 1.0 m, and the probe weighs 0.323 kg.

Q10: Does this probe provide static as well as dynamic measurements?

A10: Yes, it measures both static shaft position and dynamic vibration.
