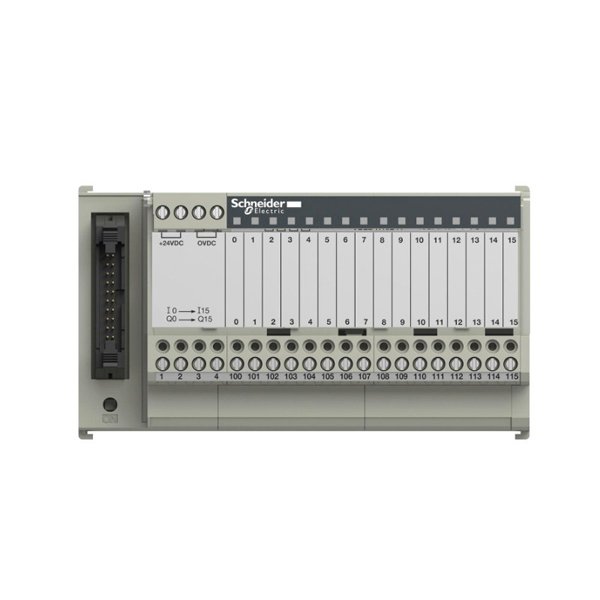

The Schneider Electric ABE7H16R11 is a passive connection sub-base designed to optimize wiring and signal interfacing in industrial automation systems. This product is part of the Modicon ABE7 series, known for enhancing I/O wiring efficiency and modularity. The ABE7H16R11 serves as a relay interface module, allowing control system outputs to drive high-voltage or high-current field devices through integrated electromechanical relays.

This sub-base supports 16 channels and is intended for use with Modicon PLCs and other automation controllers. The passive base allows for seamless signal transmission from control modules to field-level actuators and indicators such as solenoids, lamps, contactors, and relays.

It features a DIN rail mountable design, screw terminal connections for ease of installation, and removable interface cables for flexible system expansion or maintenance. With its robust and compact form factor, the ABE7H16R11 is well-suited for dense industrial panel layouts and applications requiring galvanic isolation.

Product Specifications

Product Applications

The Schneider ABE7H16R11 is widely used in industrial automation environments where discrete output modules need to interface with field devices through relays. Typical applications include:

• Factory Automation Systems

  Actuating solenoids, lamps, and relays controlled via PLC outputs.

• Machine Control Panels

  Ensuring galvanic isolation between control logic and high-voltage devices.

• Material Handling Systems

  Driving conveyors, sorters, and automated equipment from control systems.

• Process Industries (e.g., Food, Chemicals)

  Interfacing with valve actuators, alarms, and batch process controllers.

• HVAC and Building Automation

  Switching fans, pumps, or dampers from centralized automation controllers.

• Packaging and Assembly Lines

  Powering and monitoring actuators, indicators, or rejection mechanisms.

Product Advantages

• Simplified Wiring

  Reduces time and complexity of wiring between control modules and field devices.

• High Reliability

  Uses high-quality relays rated for industrial operations, ensuring durable performance.

• Electrical Isolation

  Provides galvanic isolation between PLC logic and load circuits for enhanced safety.

• Modular Integration

  Easily connects with Modicon PLCs and compatible discrete output modules.

• Compact Form Factor

  Saves valuable panel space with a 16-channel configuration in a small footprint.

• DIN Rail Mounting

  Simplifies installation and allows for clean, organized control panels.

• Screw Terminals

  Offers secure, vibration-resistant connections for industrial environments.

• Wide Compatibility

  Can be used with a variety of Schneider discrete output modules for flexible system design.

FAQ

1. What is the function of the ABE7H16R11?

   It serves as a relay interface between a PLC’s discrete outputs and field devices.

2. Can it be used with Modicon PLCs?

   Yes, it is specifically designed for compatibility with Modicon I/O modules.

3. What is the maximum current it can switch?

   Each relay can switch up to 5 A at 250 V AC or 30 V DC.

4. Is the relay type electromechanical or solid-state?

   The ABE7H16R11 uses electromechanical SPDT relays.

5. How many channels are supported?

   It supports 16 independent relay channels.

6. Is it suitable for use in safety-critical applications?

   While it provides galvanic isolation, safety certifications should be reviewed per application.

7. Can I use this module in a harsh environment?

   It is rated for indoor use (IP20) and should be housed in a control panel.

8. How is it mounted?

   It mounts onto a standard 35 mm DIN rail.

9. Does it require an external power supply?

   Yes, a 24 V DC supply is needed to power the relay coils.

10. Is it easy to replace individual relays?

    Relays are pre-installed; however, for service, the module may need to be replaced depending on the relay type used.
