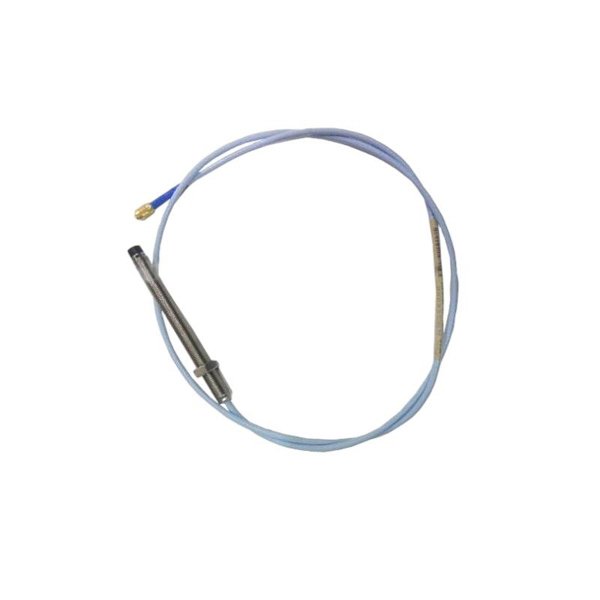

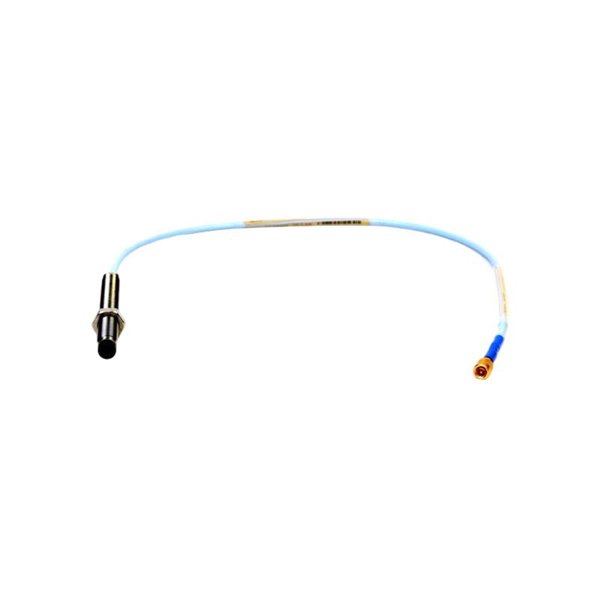

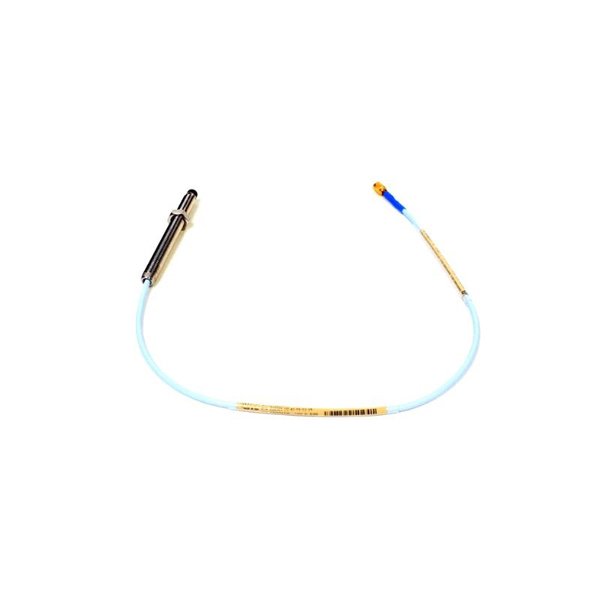

The Bently Nevada 330909-00-60-10-02-05 is a precision-engineered 3300 NSv (Narrow Side View) proximity probe designed to provide accurate, continuous monitoring of shaft vibration and displacement in rotating machinery. With a total length of 1 meter and a weight of 0.82 kg, this probe balances robust construction with ease of installation in compact or space-limited environments.

This model belongs to the well-established 3300 NSv series, known for its high reliability and compliance with industry standards. The probe features a non-contact eddy current sensing mechanism that accurately detects shaft movement without wear, making it ideal for critical machinery protection and predictive maintenance in industries such as power generation, petrochemical, oil and gas, and heavy manufacturing.

Built with a durable stainless steel housing and hermetic sealing, the probe is engineered to operate reliably under harsh conditions including extreme temperatures, vibration, and exposure to contaminants. The narrow side view design allows installation in tight spaces where conventional probes cannot fit, providing flexibility for a wide range of applications.

Product Parameters

Product Applications

The 330909 NSv probe is suited for precise shaft vibration and displacement monitoring in machinery where installation space is limited or sensor placement requires a narrow side orientation. Its main applications include:

• Gas and Steam Turbines: Monitoring shaft position and vibration in turbines with restricted clearance or unique housing geometries.

• Compressors: Ideal for centrifugal and axial compressors operating in tight spaces.

• Gearboxes: Used in compact gear train assemblies where standard probes cannot be accommodated.

• Turboexpanders: Provides accurate measurements in high-speed machinery with limited sensor access.

• Pumps and Motors: Enables reliable condition monitoring of pumps and motors in constrained or complex configurations.

• OEM Equipment: Supports machinery manufacturers integrating sensors into customized or space-limited designs.

Product Advantages

• Narrow Side View Design: Facilitates installation in tight or complex spaces without sacrificing measurement accuracy.

• High Sensitivity and Accuracy: Provides precise shaft displacement measurement within a ±0.127 mm linear range.

• Non-Contact Measurement: Uses eddy current sensing to prevent wear and reduce maintenance.

• Durable and Robust: Stainless steel housing with hermetic sealing ensures resistance to contaminants and harsh environments.

• Wide Operating Temperature Range: Functions reliably from –35°C to +175°C.

• Industry Standard Compliance: Meets API 670 and IEC standards for machine protection and condition monitoring.

• Flexible Installation Options: Integral cable with multiple connector and extension cable configurations.

• Lightweight Design: At 0.82 kg, it balances durability with manageable installation.

• Seamless Integration: Compatible with Bently Nevada 3300 NSv monitoring systems for efficient diagnostics.

• Trusted Global Brand: Supported by Bently Nevada’s expertise and extensive industry presence.

Frequently Asked Questions (FAQ)

Q1: What distinguishes the 330909-00-60-10-02-05 probe from other NSv probes?

A1: It features a 10 mm probe tip diameter and a 1-meter total length, suitable for medium-sized shaft applications with space limitations.

Q2: What are the dimensions and weight of this probe?

A2: The total length is 1.0 meter, and the probe weighs 0.82 kg.

Q3: What is the probe’s operating temperature range?

A3: It operates effectively between –35°C and +175°C.

Q4: Is the probe compatible with Bently Nevada’s 3300 NSv driver systems?

A4: Yes, it is designed for seamless integration with 3300 NSv drivers and cables.

Q5: What measurement range does the probe cover?

A5: It provides a ±0.127 mm linear range with high sensitivity.

Q6: How does the narrow side view design benefit installation?

A6: It allows probe placement in tight or restricted spaces where traditional probes cannot fit.

Q7: What type of sensing technology does this probe use?

A7: Eddy current, which is a non-contact method that reduces wear.

Q8: Can this probe be used in hazardous or harsh environments?

A8: Yes, with appropriate certifications and installation practices, it is suitable for harsh industrial environments.

Q9: How is the probe connected in field installations?

A9: It features an integral cable and supports various connectors and extension cables for flexible installation.

Q10: What standards does the probe comply with?

A10: It meets API 670 and IEC standards for vibration monitoring and machine protection.
